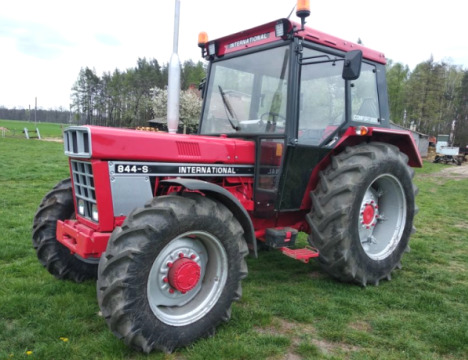

International Harvester 844S
The
International Harvester 844S farm tractor was manufactured between 1975 and
1989. The IH 844S tractor is powered by International Harvester D-268 4-cycle
4-cylinder direct injection liquid-cooled diesel engine. A 268 cubic inches (4.4
L) engine has a cylinder bore of 3.94" (100 mm), piston stroke of 5.50" (140
mm), rated power of 87 hp (64.9 kW), and max torque of 296 Nm (218 lb-ft) at
1300 rpm.
The International Harvester 844-S is fitted with 3 transmission options:
mechanical transmission with 8 forward and 4 reverse gears, Agriomatic
transmission with 12 forward and 4 reverse gears, or IH Total-Synchron
2-speed powershift transmission with 16 forward and 8 reverse gears. The
maximum forward speed - 19.1 mph (30.7 km/h), maximum reverse speed - 11
mph (17.7 km/h). The open center hydraulic system includes a gear pump
with rated fluid flow of 7.9 gallons per minute (29.9 liters per
minute).
The main relief pressure is 167 bar (2425 psi). The 2-wheel drive models
are equipped with 7.50x16 front tyres and 15.0x34 rear tyres. The
10.00x24 front tyres and 15.0x34 rear tyres fit 4-wheel drive tractors.
The wheelbase is 94.1" (2390 mm) for 4x2 (2WD) models and 92.9" (2350
mm) for 4x4 (4WD) models.
| Engine Model |
International Harvester D-268 |
| Engine Type |
4-stroke, 4-cylinder liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
268 (4.40) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.50 (140.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
87.0 (64.9) |
| Rated Engine Speed, rpm |
2300 |
| Maximum Torque, Nm (ft-lbs) |
296 (218) |
| Torque Speed, rpm |
1300 |
| Compression |
16:1 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
22.4 (84.8) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
17.2 (16.3) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
28 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
73.0 (54.4) |
| PTO Clutch Type |
Hydraulic |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Gear |
| Gearbox Type |
8F/4R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
36.8 (34.8) |
| Maximum Forward Speed, mph (kph) |
19.1 (30.7) |
| Maximum Reverse Speed, mph (kph) |
11.0 (17.7) |
| Transmission Type |
Agriomatic |
| Gearbox Type |
12F/4R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
30.8 (29.1) |
| Maximum Forward Speed, mph (kph) |
18.6 (29.9) |
| Maximum Reverse Speed, mph (kph) |
10.8 (17.3) |
| Transmission Type |
IH Total-Synchron |
| Gearbox Type |
16F/8R, 2-speed powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
18.6 (29.9) |
| Maximum Reverse Speed, mph (kph) |
10.8 (17.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Differential hydraulic wet disc |
| Front Tire Size (2WD) |
7.50-16 |
| Rear Tire Size (2WD) |
15.0-34 |
| Front Tire Size (4WD) |
10.0-24 |
| Rear Tire Size (4WD) |
15.0-34 |
| Hydraulic System Type |
Open Center |
| Implement Pump Flow, gpm (Lpm) |
7.9 (29.9) |
| Hydraulic Capacity, gal (L) |
4.0 (15.1) |
| Hydraulic Pressure, Bar (psi) |
167 (2425) |
| Number of Standard Remote Valves |
1/2 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Lower link draft sensing |
| Standard Lift Capacity at lift pin, lb (kg) |
6945 (3150) |
| Wheelbase (2WD), in (mm) |
94.1 (2390) |
| Wheelbase (4WD), in (mm) |
92.9 (2350) |
| Length (2WD), in (mm) |
153.2 (3890) |
| Length (4WD), in (mm) |
155.7 (3940) |
| Height (Cab), in (mm) |
100 (2500) |
| Overall Width, in (mm) |
80.3 (2030) |
| Ground Clearance (2WD), in (mm) |
19.7 (500) |
| Ground Clearance (4WD), in (mm) |
15.5 (390) |
| Weight (2WD), lb (kg) |
7520 (3410) |
| Weight (4WD), lb (kg) |
8230 (3735) |
