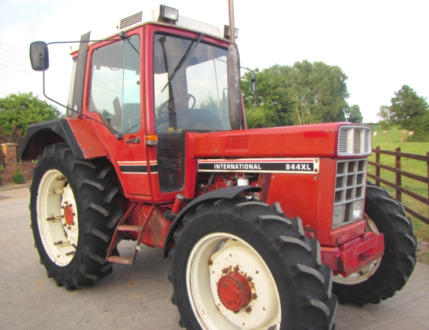

International Harvester 844XL
The
International Harvester 844 XL is a 2WD or 4WD farm tractor. This model was
manufactured from 1974 to 1980. The International Harvester 844XL is equipped
with a 268 cu.in (4.4L) IH D268 4-stroke 4-cylinder direct injection naturally
aspirated water-cooled diesel engine.
The engine has a cylinder bore of 3.94" (100 mm), piston stroke of 5.50"
(140 mm), rated power of 80 hp (59.3 kW), and max torque of 296 Nm (218
lb-ft) at 1300 rpm. The IH Total-Synchron transmission includes a dry
clutch and 2-speed powershift gearbox with 16 forward and 8 reverse
gears.
The maximum forward speed - 18.6 mph (29.9 km/h), max reverse speed -
10.8 mph (17.4 km/h). The open center hydraulic system used a gear pump
with fluid flow rate of 7.9 gal/min (30 l/min). The hydraulic pressure
is 167 bar (2430 psi). The International Harvester 844 XL was equipped
with a hydrostatic power steering system, wet disc brakes, 11.0x16 (2WD)
or 12.4x24 (4WD) front tires, and 14.9x38 rear tires. The wheelbase is
94.5" (2390 mm) for models with 2-wheel drive and 92.9" (2350 mm) for
models with 4-wheel drive.
| Engine Model |
International Harvester D-268 |
| Engine Type |
4-stroke, 4-cylinder liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
268 (4.40) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.50 (140.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
80.0 (59.3) |
| Rated Engine Speed, rpm |
2300 |
| Maximum Torque, Nm (ft-lbs) |
296 (218) |
| Torque Speed, rpm |
1300 |
| Compression |
16:1 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
27.9 (106.0) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
17.2 (16.3) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
28 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
73.0 (54.4) |
| PTO Clutch Type |
Hydraulic |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
IH Total-Synchron |
| Gearbox Type |
16F/8R, 2-speed powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
44.4 (42.0) |
| Maximum Forward Speed, mph (kph) |
18.6 (29.9) |
| Maximum Reverse Speed, mph (kph) |
10.8 (17.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (2WD) |
11.0x16 |
| Rear Tire Size (2WD) |
14.9x38 |
| Front Tire Size (4WD) |
12.4x24 |
| Rear Tire Size (4WD) |
14.9x38 |
| Hydraulic System Type |
Open Center |
| Implement Pump Flow, gpm (Lpm) |
7.9 (30.0) |
| Hydraulic Capacity, gal (L) |
4.8 (18.2) |
| Hydraulic Pressure, Bar (psi) |
167 (2430) |
| Number of Standard Remote Valves |
1/2 |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity at lift pin, lb (kg) |
6945 (3150) |
| Wheelbase (2WD), in (mm) |
94.5 (2390) |
| Wheelbase (4WD), in (mm) |
92.9 (2350) |
| Length (2WD), in (mm) |
153.8 (3890) |
| Length (4WD), in (mm) |
156.9 (3970) |
| Height (Cab), in (mm) |
105.5 (2670) |
| Overall Width, in (mm) |
80.3 (2030) |
| Ground Clearance (2WD), in (mm) |
19.7 (500) |
| Ground Clearance (4WD), in (mm) |
16.5 (420) |
| Turning Radius, in (mm) |
186 (4700) |
| Weight (2WD), lb (kg) |
7765 (3530) |
| Weight (4WD), lb (kg) |
8625 (3920) |
