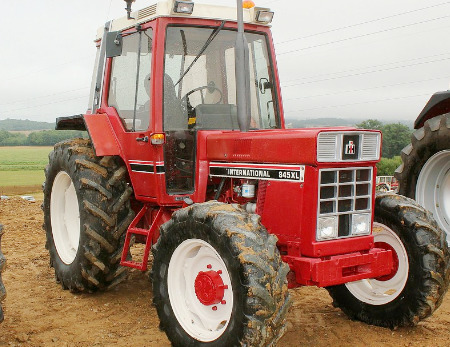

International Harvester 845 XL
The
International Harvester 845XL is a 2WD or 4WD farm tractor. This model was
manufactured from 1981 to 1985. The IH 845 XL tractor is equipped with a
International Harvester D-268 4-cylinder direct injection liquid-cooled diesel
engine.
A 268 cu.in (4.4 L) engine has a cylinder bore of 3.94" (100 mm), piston
stroke of 5.5" (140 mm), rated power of 80 hp (59.7 kW), and max. torque
of 296 Nm (218 lb-ft) at 1300 rpm. The IH Total-Synchron transmission
consists of a dry clutch and fully synchronized gearbox with 16 forward
and 8 reverse gears. The maximum forward speed - 18 mph (28.9 kph), max.
reverse speed - 10.8 mph (17.4 kph).
The open center hydraulic system includes a gear pump with a flow of 7.9
gpm (30 lpm). The hydraulic pressure is 167 bar (2420 psi). The 2-wheel
drive models are equipped with 11.0x16 front tyres and 14.9x38 rear
tyres. The 12.4x24 front tyres and 14.9x38 rear tyres fit 4-wheel drive
tractors. The wheelbase is 94.1" (2390 mm) for models with 2WD and 92.8"
(2350 mm) for models with 4WD.
| Engine Model |
International Harvester D-268 |
| Engine Type |
4-stroke, 4-cylinder liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
268 (4.40) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.50 (140.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
80.0 (59.7) |
| Rated Engine Speed, rpm |
2300 |
| Maximum Torque, Nm (ft-lbs) |
296 (218) |
| Torque Speed, rpm |
1300 |
| Compression |
16:1 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
28.0 (106.0) |
| Oil Capacity, qts (L) |
12.7 (12.0) |
| Coolant Capacity, qts (L) |
20.4 (19.3) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
55 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
66.3 (51.5) |
| PTO Clutch Type |
Hydraulic |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
IH Total-Synchron |
| Gearbox Type |
16F/8R, fully synchronized |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
18.0 (28.9) |
| Maximum Reverse Speed, mph (kph) |
10.8 (17.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (2WD) |
11.0x16 |
| Rear Tire Size (2WD) |
14.9x38 |
| Front Tire Size (4WD) |
12.4x24 |
| Rear Tire Size (4WD) |
14.9x38 |
| Hydraulic System Type |
Open Center |
| Implement Pump Flow, gpm (Lpm) |
7.9 (30.0) |
| Hydraulic Pressure, Bar (psi) |
167 (2420) |
| Number of Standard Remote Valves |
1/3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Lower link draft sensing |
| Standard Lift Capacity at lift pin, lb (kg) |
6945 (3150) |
| Wheelbase (2WD), in (mm) |
94.1 (2390) |
| Wheelbase (4WD), in (mm) |
92.8 (2350) |
| Length (2WD), in (mm) |
153.2 (3890) |
| Length (4WD), in (mm) |
156.3 (3970) |
| Height (Cab), in (mm) |
105.5 (2670) |
| Overall Width, in (mm) |
80.7 (2040) |
| Ground Clearance (2WD), in (mm) |
19.1 (480) |
| Ground Clearance (4WD), in (mm) |
15.9 (400) |
| Weight (2WD), lb (kg) |
7765 (3530) |
| Weight (4WD), lb (kg) |
8625 (3920) |
