International Harvester 856XL
The

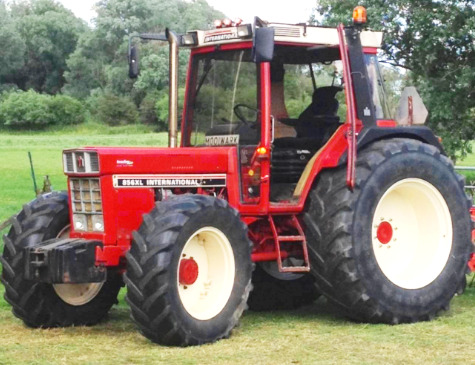

International Harvester 856 XL is a 2WD or 4WD row crop tractor. This model was
manufactured from 1983 to 1985. The IH 856 XL tractor is powered by
International Harvester DT238 four-cycle four-cylinder direct injection
turbocharged diesel engine.
A 239 cubic inches (4.9 L) engine has a cylinder bore of 3.88" (98 mm),
piston stroke of 5.06" (129 mm), rated power of 85 hp (63.4 kW), and max
torque of 310 Nm (229 lb-ft) at 1600 rpm. The International Harvester
856XL is fitted with 2 transmission options: 8x4 gear transmission, or
16x8 Synchron 2-speed powershift transmission. Max. forward speed - 18.6
mph (29.9 kph), maximum reverse speed - 10.8 mph (17.4 kph). The open
center hydraulic system includes a gear pump with a rated capacity of
7.9 gpm (29.9 lpm).
The main relief pressure is 170 bar (2465 psi). The International
Harvester 856XL was equipped with a hydrostatic power steering,
hydraulic wet disc brakes, 7.50x18 (2WD) or 13.6x24 (4WD) front tires,
and 16.9x34 rear tires. The wheelbase is 93.9 in (2380 mm) for 2-wheel
drive models and 92.4 in (2340 mm) for 4-wheel drive models.
| Engine Model |
International Harvester DT-238 |
| Engine Type |
4-stroke, four-cylinder turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
239 (3.92) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.06 (129.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
85.0 (63.4) |
| Rated Engine Speed, rpm |
2300 |
| Maximum Torque, Nm (ft-lbs) |
310 (229) |
| Torque Speed, rpm |
1600 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
28.0 (106.0) |
| Oil Capacity, qts (L) |
12.7 (12.0) |
| Coolant Capacity, qts (L) |
22.3 (21.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
33 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
68.3 (50.9) |
| PTO Clutch Type |
Hydraulic wet disc |
| PTO Speeds, rpm |
540 |
| PTO / Engine Speeds, rpm |
540/1936 |
| Transmission Type |
Gear |
| Gearbox Type |
8F/4R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
12 (310) |
| Oil Capacity, qts (L) |
44.5 (42.0) |
| Maximum Forward Speed, mph (kph) |
18.6 (29.9) |
| Maximum Reverse Speed, mph (kph) |
10.8 (17.4) |
| Transmission Type |
Synchron |
| Gearbox Type |
16F/8R, 2-speed powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
15.3 (24.6) |
| Maximum Reverse Speed, mph (kph) |
8.9 (14.3) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (2WD) |
7.50x18 |
| Rear Tire Size (2WD) |
16.9x34 |
| Front Tire Size (4WD) |
13.6x24 |
| Rear Tire Size (4WD) |
16.9x34 |
| Front Tread (2WD), in (mm) |
53-72 (1340-1820) |
| Front Tread (4WD), in (mm) |
65-71 (1650-1800) |
| Rear Tread, in (mm) |
62-78 (1570-1980) |
| Hydraulic System Type |
Open Center |
| Implement Pump Flow, gpm (Lpm) |
7.9 (29.9) |
| Hydraulic Capacity, gal (L) |
11.0 (42.0) |
| Hydraulic Pressure, Bar (psi) |
170 (2465) |
| Number of Standard Remote Valves |
3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
8710 (3950) |
| Wheelbase (2WD), in (mm) |
93.9 (2380) |
| Wheelbase (4WD), in (mm) |
92.4 (2340) |
| Length (2WD), in (mm) |
144.9 (3680) |
| Length (4WD), in (mm) |
150.4 (3820) |
| Height (2WD), in (mm) |
104.9 (2660) |
| Height (4WD), in (mm) |
105.9 (2680) |
| Clearance (2WD), in (mm) |
20.5 (520) |
| Clearance (4WD), in (mm) |
15.9 (400) |
| Turning radius, in (mm) |
169.1 (4300) |
| Weight (2WD), lb (kg) |
8465 (3840) |
| Weight (4WD), lb (kg) |
9080 (4120) |
