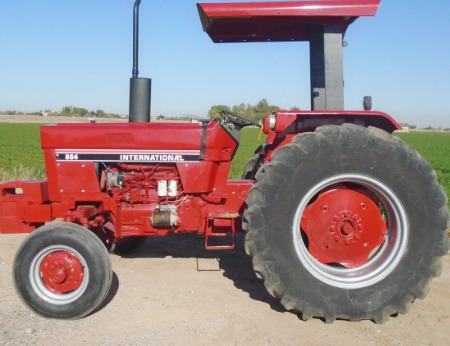

International Harvester 884

The International Harvester 884 is a 2-wheel drive or 4-wheel drive utility tractor from 84-series. This model was manufactured between 1979 and 1984. The components of International Harvester 884 powerline system: 268 cu.in (4.4L) IH D268 4-stroke 4-cylinder direct injection liquid-cooled diesel engine and Torque Amplifier 2-speed powershift transmission with 16 forward and 8 reverse gears.

The engine has a cylinder bore of 3.94" (100 mm), piston stroke of 5.50" (140 mm), rated power of 81 hp (60 kW), and max torque of 296 Nm (218 lb-ft) at 1300 rpm. Max forward speed - 19.8 mph (31.8 km/h), maximum reverse speed - 6.2 mph (9.9 km/h). The open center hydraulic system used a gear pump with a flow of 15.4 gal/min (58.3 l/min). The rear lift capacity is 3600 lbs (1630 kg).

The 2WD models are equipped with 7.50x18 front tires and 18.4x30 rear tires. The 11.2x24 front tires and 18.4x30 rear tires are used for 4WD tractors. The wheel base is 88" (2230 mm) for 2WD models, 85.2" (2160 mm) for 2WD models, and 84.5" (2140 mm) for row-crop models.

Engine
Engine Model International Harvester D-268
Engine Type 4-stroke, 4-cylinder liquid-cooled diesel
Number of Cylinders 4
Displacement, cu in (L) 268 (4.40)
Engine Bore, in (mm) 3.94 (100.0)
Engine Stroke, in (mm) 5.50 (140.0)
Aspiration Natural
Rated Engine Power, hp (kW) 81.0 (60.0)
Rated Engine Speed, rpm 2400
Maximum Torque, Nm (ft-lbs) 296 (218)
Torque Speed, rpm 1300
Compression 16:1
Fuel System Direct injection
Fuel Tank Capacity, gal (L) 20.0 (75.7)
Oil Capacity, qts (L) 8.8 (8.3)
Coolant Capacity, qts (L) 14.4 (13.6)
Electrical System Rating, Volts 12
Charging System Alternator
Alternator Rating, Amps 28

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 72.9 (54.4)
PTO Clutch Type Hydraulic
PTO Speeds, rpm 540/1000

Transmission
Transmission Type Torque Amplifier
Gearbox Type 16F/8R, 2-speed powershift
Number of Forward Gears 16
Number of Reverse Gears 8
Clutch Type Dry disc
Oil Capacity, qts (L) 36.0 (34.1)
Maximum Forward Speed, mph (kph) 19.8 (31.8)
Maximum Reverse Speed, mph (kph) 6.2 (9.9)


Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Hydrostatic power
Brakes Type Independent hydraulic wet disc
Front Tire Size (2WD) 7.50-18
Front Tire Size (4WD) 11.2-24
Rear Tire Size (2WD/4WD) 18.4-30
Rear Tire Size (Row-Crop) 15.5-38

Hydraulic System
Hydraulic System Type Open Center
Implement Pump Flow, gpm (Lpm) 15.4 (58.3)
Hydraulic Capacity, gal (L) 9.0 (34.1)
Number of Standard Remote Valves 1/2
3-Point Hitch Category 2
Draft Sensing or Lift Control Position and draft control
Standard Lift Capacity at lift pin, lb (kg) 3600 (1630)

Dimensions and Weight
Wheelbase (2WD), in (mm) 88 (2230)
Wheelbase (Row-Crop), in (mm) 84.5 (2140)
Wheelbase (4WD), in (mm) 85.2 (2160)
Length (Standard), in (mm) 142 (3600)
Length (Row-Crop), in (mm) 139 (3530)
Length (4WD), in (mm) 148.2 (3760)
Height (Steering Wheel), in (mm) 65 (1650)
Overall Width, in (mm) 74 (1870)
Ground Clearance (Row-Crop), in (mm) 19.7 (500)
Ground Clearance (4WD), in (mm) 17.8 (450)
Weight (Standard), lb (kg) 6065 (2750)
Weight (Row-Crop), lb (kg) 6315 (2865)
Weight (4WD), lb (kg) 7225 (3275)
