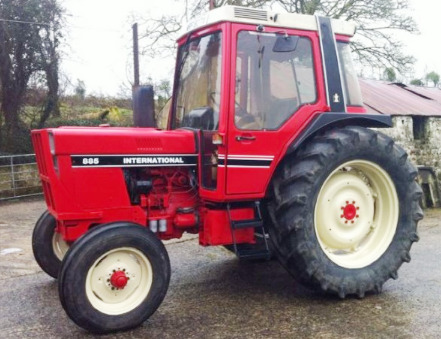

International Harvester 885
The
International Harvester 885 utility tractor was manufactured from 1981 to 1985.
The IH 885 tractor is powered by 268 cubic inches (4.3L) International Harvester
D268 4-cylinder direct injection naturally aspirated diesel engine with a rated
power of 85.1 Hp (63.4 kW) and 288 Nm (212 lb-ft) of maximum torque at 1600
rev/min.
The International Harvester 885 is fitted with 2 types of transmission.
1st type: synchromesh transmission with 8 forward and 4 reverse gears.
2nd type: Torque Amplifier 2-speed powershift transmission with 16
forward and 8 reverse gears.
Max travel speed (forward/reverse): 22.4 mph (36 km/h) and 10.8 mph
(17.4 km/h). The open center hydraulic system includes a gear pump with
a rated capacity of 12.4 gallons per minute (46.9 liters per minute).
The hydraulic pressure is 172 bar (2500 psi). The International
Harvester 885 was equipped with a hydrostatic power steering, hydraulic
wet disc brakes, 10.0x16 (2WD) or 12.4x24 (4WD) front tires, and 16.9x34
rear tires. The wheelbase is 85.4" (2160 mm).
| Engine Model |
International Harvester D268 |
| Engine Type |
4-stroke, 4-cylinder direct injection diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
268 (4.34) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.50 (140.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
85.1 (63.4) |
| Rated Engine Speed, rpm |
2400 |
| Maximum Torque, Nm (ft-lbs) |
288 (212) |
| Torque Speed, rpm |
1600 |
| Idle Speed, rpm |
650-2650 |
| Compression |
15.1:1 |
| Fuel Tank Capacity, gal (L) |
29.6 (112.0) |
| Oil Capacity, qts (L) |
9.0 (8.5) |
| Coolant Capacity, qts (L) |
14.5 (13.7) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
72.0 (53.7) |
| PTO Clutch Type |
Hydraulic wet disc |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Synchromesh |
| Gearbox Type |
8F/4R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
22.4 (36.0) |
| Maximum Reverse Speed, mph (kph) |
10.8 (17.4) |
| Transmission Type |
Torque Amplifier |
| Gearbox Type |
16F/8R, 2-speed powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
22.4 (36.0) |
| Maximum Reverse Speed, mph (kph) |
10.8 (17.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (2WD) |
10.0-16 |
| Rear Tire Size (2WD) |
16.9-34 |
| Front Tire Size (4WD) |
12.4-24 |
| Rear Tire Size (4WD) |
16.9-34 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.4 (46.9) |
| Hydraulic Pressure, Bar (psi) |
172 (2500) |
| Number of Standard Remote Valves |
1/2 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position and draft control |
| Optional Lift Capacity at lift pin, lb (kg) |
5250 (2380) |
| Wheelbase, in (mm) |
85.4 (2160) |
| Length, in (mm) |
147.6 (3740) |
| Height, in (mm) |
104 (2640) |
| Overall Width, in (mm) |
76 (1920) |
| Turning Radius, in (mm) |
198 (5000) |
| Weight (2WD), lb (kg) |
7365 (3340) |
| Weight (4WD), lb (kg) |
7850 (3560) |
