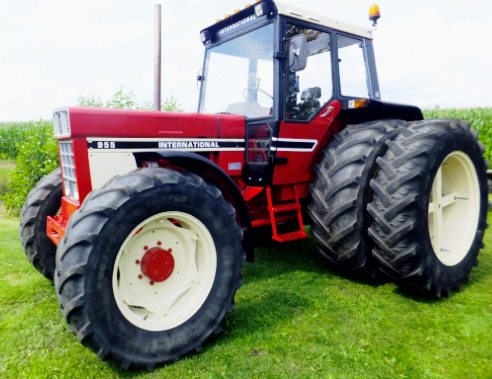

International Harvester 955
The
International Harvester 955 is a two-wheel drive or four-wheel drive row crop
tractor. This model was manufactured from 1977 to 1982.
The International Harvester 955 driveline includes a 309.6 cu.in (5.1L)
IH D310 6-cylinder direct injection water-cooled diesel engine with a
rated power of 90 hp (66.7 kW), or 309.6 cu.in (5.1L) IH D358 6-cylinder
direct injection water-cooled diesel engine with a rated power of 94 hp
(69.5 kW), and Torque Amplifier transmission with 16 forward and 8
reverse gears.
Max forward speed - 18.3 mph (29.4 kph), max. reverse speed - 9 mph
(14.5 kph). The open center hydraulic system used a gear pump with a
rated capacity of 9.5 gal/min (36 l/min). The hydraulic system pressure
is 167 bar (2420 psi). The 2WD models are equipped with 7.50x18 front
tyres and 18.4x34 rear tyres. The 12.4x28 front tyres and 18.4x34 rear
tyres fit 4WD tractors. The wheelbase is 102.5" (2590 mm) for 4x2 (2WD)
models and 103.5" (2620 mm) for 4x4 (4WD) models.
| Engine Model |
International Harvester D-310 |
| Engine Type |
4-Stroke, six-cylinder diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
309.6 (5.10) |
| Aspiration |
Natural |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
4.38 (111.0) |
| Rated Engine Power, hp (kW) |
90.0 (66.7) |
| Rated Engine Speed, rpm |
2300 |
| Compression |
17:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct Injection |
| Lubricating Type |
Full flow |
| Air Cleaner |
Dry element |
| Fuel Tank Capacity, gal (L) |
37.0 (140.0) |
| Oil Capacity, qts (L) |
12.0 (11.4) |
| Coolant Capacity, qts (L) |
21.0 (19.9) |
| Electrical System Rating, Volts |
12 |
| Engine Model |
International Harvester D-358 |
| Engine Type |
4 Stroke, 6-cylinder diesel |
| Number of Cylinders |
Six |
| Displacement, cu in (L) |
358 (5.90) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.06 (129.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
94.0 (69.5) |
| Rated Engine Speed, rpm |
2200 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
37.0 (140.0) |
| Oil Capacity, qts (L) |
13.2 (12.5) |
| Coolant Capacity, qts (L) |
21.0 (19.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
78.0 (57.8) |
| PTO Speed, rpm |
540/1000 |
| Transmission Type |
Torque Amplifier |
| Gearbox Type |
16F/8R |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
18.3 (29.4) |
| Maximum Reverse Speed, mph (kph) |
9.0 (14.5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (2WD) |
7.50-18 |
| Rear Tire Size (2WD) |
18.4-34 |
| Front Tire Size (4WD) |
12.4-28 |
| Rear Tire Size (4WD) |
18.4-34 |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
9.5 (36.0) |
| Hydraulic Pressure, Bar (psi) |
167 (2420) |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity at lift pin, lb (kg) |
9535 (4325) |
| Wheelbase (2WD), in (mm) |
102.5 (2590) |
| Wheelbase (4WD), in (mm) |
103.5 (2620) |
| Length (2WD), in (mm) |
166.1 (4210) |
| Length (4WD), in (mm) |
167.2 (4230) |
| Height (Cab), in (mm) |
109.1 (2770) |
| Turning Radius (2WD), in (mm) |
200 (5050) |
| Turning Radius (4WD), in (mm) |
210 (5320) |
| Weight (2WD), lb (kg) |
9460 (4290) |
| Weight (4WD), lb (kg) |
10295 (4670) |
