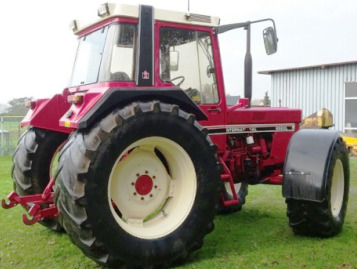

International Harvester 956 XL Specs
The
International Harvester 956XL is a two-wheel drive or four-wheel drive row-crop
tractor. This model was manufactured between 1982 and 1985. The International
Harvester 956 XL tractor is powered by 238.7 cu.in (3.9 L) IH DT-239 4-cylinder
turbocharged liquid-cooled diesel engine with a rated power of 85 hp (63 kW) at
2300 rpm.
The International 956XL is fitted with a two-speed powershift Torque
Amplifier transmission with 16 forward and 8 reverse gears. The maximum
forward speed - 17.4 mph (28 km/h), maximum reverse speed - 6.6 mph
(10.6 km/h).
The open center hydraulic system has a gear pump with a rated capacity
of 8 gal/min (30 l/min). The hydraulic system pressure is 167 bar (2440
psi). The 2WD models are equipped with 7.50x18 front tires and 16.9x34
rear tires. The 12.4x28 front tires and 16.9x38 rear tires are used for
4WD models. The wheelbase is 94.5" (2390 mm) for 2-wheel drive tractors
and 92.9" (2350 mm) for 4-wheel drive tractors.
| Engine Model |
International Harvester DT-239 |
| Engine Type |
4-stroke, 4-cylinder turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
238.7 (3.91) |
| Engine Bore, in (mm) |
3.87 (98.0) |
| Engine Stroke, in (mm) |
5.06 (129.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
85.0 (63.0) |
| Rated Engine Speed, rpm |
2300 |
| Idle Speed, rpm |
650-2450 |
| Maximum Torque, Nm (ft-lbs) |
310 (230) |
| Torque Speed, rpm |
1600 |
| Compression |
16:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dry |
| Fuel Tank Capacity, gal (L) |
18.5 (70.0) |
| Oil Capacity, qts (L) |
9.6 (9.1) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
73.2 (54.3) |
| PTO Clutch |
Hydraulic wet disc |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Torque Amplifier |
| Gearbox Type |
16F/8R, 2-speed powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch |
Dry disc |
| Oil Capacity, qts (L) |
44.5 (42.0) |
| Maximum Forward Speed, mph (kph) |
17.4 (28.0) |
| Maximum Reverse Speed, mph (kph) |
6.6 (10.6) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (2WD) |
7.50-18 |
| Rear Tire Size (2WD) |
16.9-34 |
| Front Tire Size (4WD) |
12.4-28 |
| Rear Tire Size (4WD) |
16.9-38 |
| Hydraulic System Type |
Open Center |
| Implement Pump Flow, gpm (Lpm) |
8.0 (30.0) |
| Hydraulic Pressure, Bar (psi) |
167.0 (2440) |
| Number of Standard Remote Valves |
3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
8800 (4000) |
| Wheelbase (2WD), in (mm) |
94.5 (2390) |
| Wheelbase (4WD), in (mm) |
92.9 (2350) |
| Length (2WD), in (mm) |
153.8 (3890) |
| Length (4WD), in (mm) |
158.5 (4010) |
| Height, in (mm) |
106.3 (2690) |
| Turning Radius, in (mm) |
202 (5050) |
| Weight (2WD), lb (kg) |
8450 (3840) |
| Weight (4WD), lb (kg) |
9065 (4120) |
