International Harvester 966 Specs
The

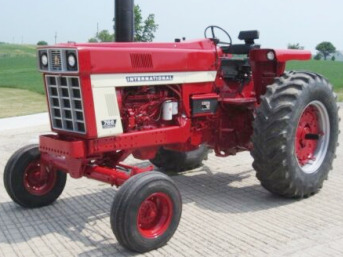

International Harvester 966 is a 2WD or 4WD row-crop tractor from 66-series.
This model was manufactured from 1971 to 1976. The International Harvester 966
is powered by 414 cu.in (6.8 L) IH D414 six-cylinder direct injection naturally
aspirated diesel engine with a rated power of 102 hp (75.6 kW).
The tractor is fitted with a three types of transmission. Type 1: 8x4
sliding gear transmission. Type 2: 16x8 partial powershift transmission.
Type 3: Two-range hydrostatic transmission. The maximum forward speed -
18.3 mph (29.4 kph), maximum reverse speed - 18 mph (29 kph).
The open center hydraulic system includes a gear pump with rated fluid
flow of 12 gal/min (45.4 l/min). The system relief pressure is 138 bar
(2000 psi). The International 966 tractor is equipped with a hydrostatic
power steering, independent hydraulic dry brakes, 9.5Lx15 front tyres,
and 18.4x34 rear tyres. The wheelbase is 105" (2655 mm).
| Engine Model |
International Harvester D414 |
| Engine Type |
4-stroke, six-cylinder diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
414 (6.80) |
| Engine Bore, in (mm) |
4.30 (109.0) |
| Engine Stroke, in (mm) |
4.75 (121.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
102.0 (75.6) |
| Rated Engine Speed, rpm |
2600 |
| Compression |
16:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dual dry elements |
| Fuel Tank Capacity, gal (L) |
37.0 (140.0) |
| Oil Capacity, qts (L) |
12.0 (11.4) |
| Coolant Capacity, qts (L) |
24.0 (22.7) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
95.0 (70.8) |
| PTO Clutch |
Dry disc |
| PTO Speeds, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/2306 |
| PTO / Engine Speed, rpm |
1000/2269 |
| Transmission Type |
Sliding gear |
| Gearbox Type |
8F/4R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch |
Dry disc |
| Oil Capacity, qts (L) |
90.0 (85.2) |
| Maximum Forward Speed, mph (kph) |
18.3 (29.4) |
| Maximum Reverse Speed, mph (kph) |
9.0 (14.5) |
| Transmission Type |
Torque Amplifier |
| Gearbox Type |
16F/8R, partial powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch |
Dry disc |
| Oil Capacity, qts (L) |
90.0 (85.2) |
| Maximum Forward Speed, mph (kph) |
18.3 (29.4) |
| Maximum Reverse Speed, mph (kph) |
9.0 (14.5) |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite, 2-range |
| Number of Reverse Gears |
Infinite, 2-range |
| Maximum Forward Speed, mph (kph) |
18.0 (29.0) |
| Maximum Reverse Speed, mph (kph) |
18.0 (29.0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Independent hydraulic dry disc |
| Front Tire Size |
9.5L-15 |
| Rear Tire Size |
18.4-34 |
| Front Tread, in (mm) |
62-86 (1570-2180) |
| Rear Tread, in (mm) |
60-104 (1520-2630) |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.0 (45.4) |
| Hydraulic Pressure, Bar (psi) |
138 (2000) |
| Steering Pump Flow, gpm (Lpm) |
9.0 (34.0) |
| Steering Pressure, Bar (psi) |
107 (1550) |
| Hydraulic Fluid Capacity, qts (L) |
22.5 (85.2) |
| Number of Standard Remote Valves |
1/4 |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity 24-in (610mm) behind pin, lb (kg) |
4400 (1995) |
| Wheelbase, in (mm) |
105 (2655) |
| Length, in (mm) |
165 (4190) |
| Height (Exhaust), in (mm) |
105 (2660) |
| Overall Width, in (mm) |
98 (2480) |
| Ground Clearance, in (mm) |
14 (350) |
| Turning Radius (without Brakes), in (mm) |
166 (4200) |
| Turning Radius (with Brakes), in (mm) |
142 (3590) |
| Weight (Gear), lb (kg) |
11115 (5040) |
| Weight (Hydro), lb (kg) |
11700 (5305) |
