John Deere 6910 Troubleshooting
The

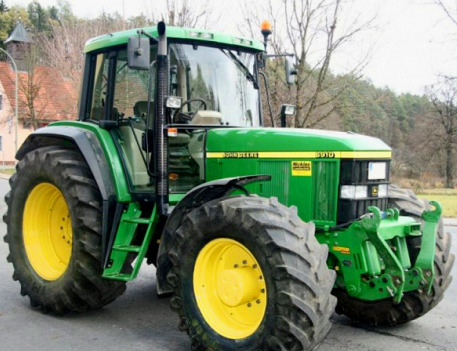

John Deere 6910 is a 6000 Ten series four-wheel drive row crop tractor. This
model was manufactured from 1997 to 2001. The John Deere 6910 powertrain system
components: JD 6068T four-stroke 6-cylinder turbocharged diesel engine and 24x24
PowrQuad transmission with planetary gears, or PowerShift transmission with 18
forward and 7 reverse gears.
A 414 cu.in (6.8 L) engine output is 140 hp (104.4 kW), and maximum
torque is 610 Nm (450 lb-ft) at 1400 rev/min. Max. travel speed
(forward/reverse): 31.1 mph (50 km/h).
The closed center hydraulic system with load-sensing control has an
axial-piston or gear-driven pump with a rated capacity of 25.3 gallons
per minute (96 l/min). The hydraulic pressure is 200 bar (2900 psi). The
John Deere 6910 is equipped with a hydrostatic power steering system,
hydraulic brakes, 16.9R28 front tires, and 20.8R38 rear tires. The wheel
base is 104.3 in (2640 mm).
Engine Troubleshooting |
Engine will not start or starts up hard |
Fuel filter plugging - Change filter element |
No fuel injection - Open fuel cock to inject fuel |
Air in fuel pipes - Bleed fuel pipes |
Fuel injectors are clogged or faulty - Change fuel injectors |
Fuel injection pump malfunctioning - Rebuild or replace pump |
Engine has bad compression - Check cylinder block and replace damaged components |
Engine stops unexpectedly while running |
Engine is not warmed up to the required temperature - Engine is not warmed up to the required temperature |
Air in fuel pipes - Bleed fuel pipes |
Uneven fuel injections - Repair or adjustment |
Fuel filter plugging - Install new filter element |
Faulty or dirty injectors - Inspect fuel injectors and replace if necessary |
Diesel starts but then shuts off |
Incorrect setting of fuel injection pump timing - Check and correct adjustments |
Plugged fuel filter - Change filter element |
Dirty or defective injector nozzles - Change injector nozzles |
Fuel injection pump failure - Repair or replace injection pump |
Clogged air cleaner element - Service or replace the air cleaner |
Incorrectly adjusted low idle speed - Adjust low idling as recommended |
Fuel injection pump is damaged - Replace or rebuild injection pump |
Fuel injector nozzles are faulty - Change or clean injector nozzles |
Valve out of adjustment - Adjustment procedure required |
Low engine coolant - Fill radiator to proper level. If there are leaks in the system, replace worn components |
Cooling system components are failed or system is dirty - Service the cooling system or replace faulty components |
Low engine oil level - Need to add engine oil |
Worn fan belt or incorrect belt tension - Adjust correctly or change the belt |
Defective thermostat - Thermostat needs to be replaced |
Clogged or damaged injectors - Service or change fuel injectors |
Incorrect fuel injection pressure - Adjust to proper pressure |
Air filter element clogging - Replace or clean the air filter element |
Oil filter element is dirty - Replace or service engine oil filter |
Engine is under excessive load - Reduce the load or operate the tractor in lower gears |
Valve clearance is wrong - Correct valve clearance |
Incorrectly set low idle speed - Need to adjust idle speed |
Clogged fuel pipes or hoses - Fuel hoses and pipes must be clean |
Engine lost compression: Intake or exhaust valves are damaged - Install new valves |
Incorrect setting of fuel injection pump timing - Correct injection timing |
Fuel injector nozzles are dirty or defective - Service or replace nozzles if required |
Not enough engine oil - Check oil level and add oil as required |
Engine is not warmed up to the required temperature - Warm up the engine |
Worn main bearings or crankshaft - Worn parts replacement required |
Defective or broken piston rings - Replace the piston rings as required |
Loose flywheel bolts - Check flywheel bolts and tighten properly |
Diesel engine using too much oil |
Oil leakage: Gaskets or seals can be faulty - Replace defective parts |
Oil viscosity is wrong - Use oil of correct viscosity |
Worn or stuck piston rings - Change piston rings |
Damaged valve guides or valve stems - Valves must be replaced |
Scored pistons or cylinder liners - Inspect liners and pistons, replace as necessary |
Electrical System Troubleshooting |
Battery is not charging |
Battery dead cell - Battery change required |
Damaged battery cable harness - Check electrical cables for damage, repair or replace |
Loose or corroded battery cables and terminals - Tighten or service terminals and cables |
Improper belt tension adjustment or damaged belt - Change belt or adjust belt tension properly |
Battery voltage is low - Battery is drained, recharge it |
Battery drains quickly - Service charging system or install new battery |
Battery wiring harness damage - Inspect battery wiring for damage, replace or repair |
Battery terminals and cables are corroded or loose - Service or tighten battery cables and terminals |
Battery voltage is low - Recharge the battery |
Drained or worn battery - Battery needs to be recharged or replaced |
Faulty starter motor - Repair or install a new starter |
Disconnected or incorrectly connected wiring harness - Inspect wiring harness and reconnect it as required |
Transmission Troubleshooting |
Difficulty shifting gears |
Failure or improper clutch adjustment - Clutch needs to be replaced or adjusted |
Stuck or damaged gear shift linkage - Service or change the shift linkage |
Bent or worn shift forks - Change defective shift forks |
Gear shifting mechanism is worn - Change worn components |
Transmission oil pressure is low |
Fluid level is low - Add transmission fluid as required |
Dirty transmission oil filter (if fitted) - Replace or clean transmission oil filter |
Faulty relief valve - Install a new relief valve |
Transmission makes excessive noise |
Bearings are worn or damaged - Install new bearings |
Low transmission oil level - Fill the transmission housing to proper oil level |
Contaminated transmission fluid - Transmission fluid must be changed |
Backlash is incorrect or gears are worn - Replace gears or set backlash correctly |
Shift forks are damaged or worn - Install new shift forks |
Gaskets or seals are damaged - Install new components |
Transmission housing is cracked - Replace housing or transmission assembly |
Hydraulics Troubleshooting |
Hydraulic system overheated |
Improper hydraulic system pressure setting - Set the pressure properly |
Faulty or incorrectly adjusted main relief valve - Replace or set up the relief valve |
Hydraulic oil is contaminated - Fill up with fresh hydraulic oil |
Air trapped in the hydraulic system - Inspect the suction pipe, fittings, and pump seals |
Hydraulic fluid pressure too low |
Lack of hydraulic fluid - Check and refill the hydraulic fluid |
Hydraulic oil filter clogging - Service or replace the hydraulic filter |
Damaged hydraulic oil pump - Flow-rate hydraulic pump and replace pump if necessary |
Hydraulic spool valve is defective or set improper - Replace or set properly |
Faulty hydraulic cylinder - Inspect cylinder components for wear or damage and change if required |
Hydraulic pipes are leaking - Detect leaks in hydraulic system and repair it |
Hitch cannot be lifted or lifting is too slow |
Lack of hydraulic fluid - Need to add fluid |
Hydraulic oil is too cold - Allow oil to warm |
Hydraulic oil filter clogging - Change the hydraulic filter element or service if required |
Defective hydraulic pump - Check pump flow and change pump if necessary |
Main relief valve malfunction or incorrect adjustment - Adjust or replace the relief valve |
Defective or incorrect setting hydraulic control valve block - Replace or set correctly |
Hydraulic cylinder is not working - Check cylinder parts for damage or wear and replace if necessary |
Loose or damaged suction line - Tighten or replace |
Hitch can't drop or drops too slowly |
Defective or not adjusted hydraulic control valve - Set correctly or replace |
Hydraulic cylinder is faulty - Inspect the hydraulic cylinder parts for damage or wear and replace if required |
Lift arm shaft is worn - Replace the shaft |
Hitch has mechanical defects - Replace faulty or worn hitch components |
Hitch jerks when lower or lift |
Air in hydraulic system - Inspect the pump seals, suction line, and fittings |
Hydraulic fluid is contaminated - Fill up with new hydraulic fluid |
Hydraulic pump is faulty - Test the pump performance and change pump if required |
Hydraulic control valve block is faulty or out of adjustment - Set properly or replace |
Hydraulic cylinder is defective - Inspect cylinder components for wear or damage and change if required |
Steering System Troubleshooting |
Excessive effort to steer |
Steering column is worn or incorrectly mounted - Change the steering column or mount it correctly |
Air in steering system - Need to bleed air |
Toe-in adjustment is incorrect - Adjust toe-in wheels properly |
Tires are incorrectly inflated - Inflate as required |
Damaged hydraulic steering pump - Replace or repair steering pump |
Worn or defective hydrostatic steering unit - Repair or replace the steering unit |
Steering oil level low - Add oil to steering system |
Oil leakage in the steering system - Tighten the steering line and hose joints |
Steering wheel free play is excessive |
Steering column coupling or shaft has maximum wear - Change defective component |
Defective or worn hydrostatic steering unit - Repair or replace the steering unit |
Damaged hydraulic steering pump - Replace or repair steering pump |
Worn or faulty steering tie-rod ends or linkage - Change failed component |
Tractor pulls to right or left |
Tire pressure is not correct - Check tire pressure and inflate as required |
Improper toe-in - Adjust toe-in wheels properly |
Steering tie-rod ends or linkage are defective - Replace damaged component |
Hydrostatic steering unit is defective or worn - Repair or change the steering unit |
Steering cylinder is worn - Change or repair hydraulic steering cylinder |
Front hub bearings are incorrectly adjusted or worn - Install new bearings or adjust it correctly |
