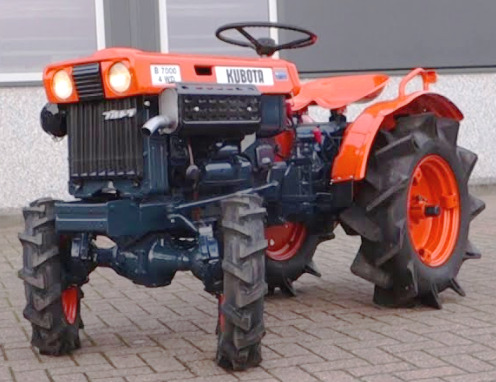

Kubota B7000 Tractor
The
Kubota B7000 is a 2-wheel drive or 4-wheel drive sub-compact utility tractor.
This model was manufactured from 1973 to 1977. The tractor was designed in 2
versions: B7000E (2WD) and B7000D (4WD).
The Kubota B7000 tractor is equipped with a 39.07 cu.in (0.6L) Kubota
Z650 4-cycle 2-cylinder water-cooled naturally aspirated diesel engine.
The engine has a cylinder bore of 2.99" (76 mm), piston stroke of 3.23"
(82 mm), rated power of 14 hp (10.4 kW), and 29.2 Nm (21.6 lb-ft) of max
torque at 1800 rpm.
The mechanical transmission includes a dry clutch and unsynchronized
gearbox with 6 forward and 2 reverse gears. The maximum travel speed
(forward/reverse): 8.1 mph (13 km/h) and 4 mph (6.4 km/h). The Kubota
B7000 was equipped with a manual steering system, mechanical brakes,
5.00x12 or 20x8.00-10 front tires, and 8.00x16 or 7.00x16 rear tires.
The wheelbase is 48.4" (1220 mm).
| Engine Model |
Kubota Z650 |
| Engine Type |
4-cycle two-cylinder water-cooled diesel |
| Number of Cylinders |
2 |
| Displacement, cu.in (L) |
39.07 (0.61) |
| Engine Bore, in (mm) |
2.99 (76.0) |
| Engine Stroke, in (mm) |
3.23 (82.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
14.0 (10.4) |
| Rated Engine Speed, rpm |
3000 |
| Idle Speed, rpm, rpm |
800-2950 |
| Maximum Torque, Nm (lb-ft) |
29.2 (21.6) |
| Torque Speed, rpm |
1800 |
| Compression Ratio |
21:1 |
| Firing Order |
1-2 |
| Fuel System |
Injection Pump |
| Lubricating System |
Forced Lubrication by Pump |
| Cooling System |
Pressurized Radiator |
| Starting System |
Electric Starting |
| Fuel Tank Capacity, gal (L) |
3.9 (15.0) |
| Oil Capacity, qts (L) |
3.2 (3.0) |
| Coolant Capacity, qts (L) |
4.0 (3.8) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
11.5 (8.6) |
| PTO Speed, rpm |
540/860/1000 |
| PTO / Engine Speed, rpm |
540/3000 |
| PTO / Engine Speed, rpm |
860/3000 |
| PTO / Engine Speed, rpm |
1000/3000 |
| Transmission Type |
Unsynchronized gear |
| Gearbox Type |
6F/2R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
12.0 (11.3) |
| Maximum Forward Speed, mph (kph) |
8.1 (13.0) |
| Maximum Reverse Speed, mph (kph) |
4.0 (6.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical |
| Front Tire Size (Std) |
5.00x12 |
| Rear Tire Size (Std) |
8.00x16 |
| Front Tire Size (Opt) |
20x8.00-10 |
| Rear Tire Size (Opt) |
7.00x16 |
| Front Tread, in (mm) |
30.1 (760) |
| Rear Tread, in (mm) |
29.1-33.1 (730-840) |
| Wheelbase, in (mm) |
48.4 (1220) |
| Length, in (mm) |
78.4 (1990) |
| Height, in (mm) |
45.7 (1160) |
| Overall Width, in (mm) |
35.4 (890) |
| Ground Clearance, in (mm) |
9.4 (240) |
| Weight, lb (kg) |
1050 (475) |
