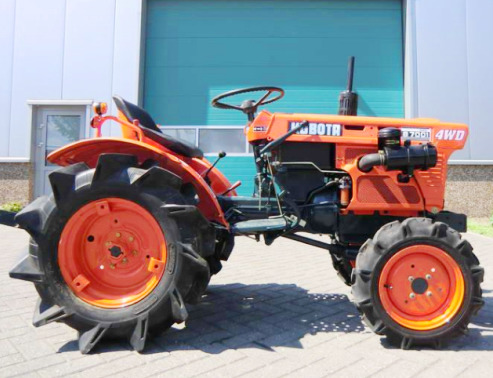

Kubota B7001 Tractor
The
Kubota B7001 is a 2-wheel drive or 4-wheel drive sub-compact utility tractor.
This model was manufactured between 1976 and 1979. The tractor was designed in 2
versions: B7001E (2WD) and B7001DT (4WD).
The Kubota B7001 tractor is equipped with a 46.5 cu.in (800 cc) Kubota
D750 4-cycle vertical 3-cylinder indirect injection naturally aspirated
water-cooled diesel engine with a maximum power of 16 hp (11.9 kW) and
42.2 Nm (31.3 lb-ft) of peak torque at 1800 rpm. The mechanical
transmission includes a dry clutch and unsynchronized gearbox with 6
forward and 2 reverse gears.
The maximum forward speed - 8.1 mph (13 kph), max. reverse speed - 4 mph
(6.4 kph). The Kubota B7001 is equipped with a manual steering system,
mechanical disc brakes, 5.00x12 or 20x8.00-10 front tires, and 7.00x16
or 8.00x16 rear tires. The wheel base is 49.6" (1240 mm).
| Engine Model |
Kubota D750 |
| Engine Type |
4-cycle vertical 3-cylinder water-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu.in (L) |
46.5 (0.8) |
| Engine Bore, in (mm) |
2.68 (68.0) |
| Engine Stroke, in (mm) |
2.76 (70.0) |
| Aspiration |
Naturally aspirated |
| Maximum Engine Power, hp (kW) |
16.0 (11.9) |
| Rated Engine Power, hp (kW) |
13.0 (9.7) |
| Rated Engine Speed, rpm |
2600 |
| Maximum Torque, Nm (lb-ft) |
42.2 (31.3) |
| Torque Speed, rpm |
1800 |
| Compression Ratio |
22:1 |
| Firing Order |
1-2-3 |
| Fuel System |
Indirect injection |
| Lubricating System |
Forced Lubrication by Pump |
| Cooling System |
Pressurized Radiator, Forced Circulation with Water Pump |
| Starting System |
Electric Starting |
| Fuel Tank Capacity, gal (L) |
3.5 (13.0) |
| Oil Capacity, qts (L) |
4.1 (3.9) |
| Coolant Capacity, qts (L) |
5.0 (4.7) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
13.5 (9.7) |
| PTO Speed, rpm |
540/860/1000 |
| PTO / Engine Speed, rpm |
540/3000 |
| PTO / Engine Speed, rpm |
860/3000 |
| PTO / Engine Speed, rpm |
1000/3000 |
| Transmission Type |
Unsynchronized gear |
| Gearbox Type |
6F/2R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
12.0 (11.3) |
| Maximum Forward Speed, mph (kph) |
8.1 (13.0) |
| Maximum Reverse Speed, mph (kph) |
4.0 (6.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical |
| Front Tire Size (Std) |
5.00x12 |
| Rear Tire Size (Std) |
8.00x16 |
| Front Tire Size (Opt) |
20x8.00-10 |
| Rear Tire Size (Opt) |
7.00x16 |
| Front Tread, in (mm) |
30.1 (760) |
| Rear Tread, in (mm) |
29.1-33.1 (730-840) |
| Wheelbase, in (mm) |
49.6 (1240) |
| Length, in (mm) |
78.4 (1990) |
| Height, in (mm) |
45.7 (1160) |
| Overall Width, in (mm) |
35.4 (890) |
| Ground Clearance, in (mm) |
9.4 (240) |
| Weight, lb (kg) |
1070 (480) |
