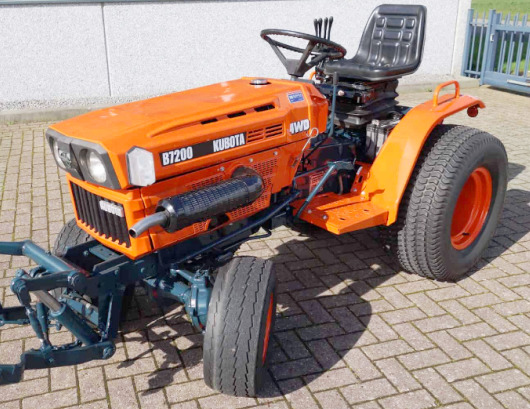

Kubota B7200 Tractor
The
Kubota B7200 compact utility tractor was manufactured between 1983 and 1990.
This model was designed in 2 versions: B7200E (2WD) and B7200D (4WD). The Kubota
B7200 powertrain system components: a 56.6 cu.in (0.9L) Kubota D950 4-cycle
vertical three-cylinder naturally aspirated liquid-cooled diesel engine with a
rated power of 17 hp (12.7 kW), and unsynchronized transmission with 6 forward
and 2 reverse gears.
Max forward speed - 8 mph (12.8 kph), max reverse speed - 4 mph (6.4
kph). The open center hydraulic system includes a gear pump with a flow
rate of 4 gallons per minute (15.1 liters per minute). The hydraulic
system pressure is 113 bar (1640 psi). The 2-wheel drive models are
equipped with 5.00x10 (AG) or 18x9.50-8 (Turf) front tires and 8.00x16
(AG) or 29x12.00-15 (Turf) rear tires. The 6.00x12 (AG) or 20x8.00-10
(Turf) front tires and 8.00x16 (AG) or 31x13.50-15 (Turf) rear tires are
used for tractors with 4-wheel drive. The wheel base is 55.1" (1390 mm).
The Kubota B7200 is compatible with the following attachments: a 60"
mid-mount 3-blade Kubota RC60-72 mower deck with cutting height of
1.5-4.0 in (38-102 mm), 48" rear-mount Kubota B3538 finish mower, 51"
front-mount dual-stage Kubota B2551 snowblower with hydraulic lift,
Kubota B1630C front-end loader with lift capacity to full height of 510
lbs (231 kg), or Kubota B1640A front-end loader with lift capacity to
full height of 510 lbs (231 kg).
| Engine Model |
Kubota D950 |
| Engine Type |
4-cycle vertical three-cylinder liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu.in (L) |
56.6 (0.927) |
| Engine Bore, in (mm) |
2.95 (75.0) |
| Engine Stroke, in (mm) |
2.76 (70.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
17.0 (12.7) |
| Rated Engine Speed, rpm |
2500 |
| Maximum Torque, Nm (lb-ft) |
55.6 (41.2) |
| Torque Speed, rpm |
1800 |
| Compression Ratio |
22:1 |
| Firing Order |
1-2-3 |
| Fuel System |
Injection pump |
| Fuel System Control |
Mechanical |
| Injection Nozzle |
Throttle type |
| Lubrication System |
Forced lubrication by pump |
| Cooling System |
Forced circulation with water pump |
| Air Cleaner |
Dry paper element |
| Fuel Tank Capacity, gal (L) |
5.3 (20.0) |
| Oil Capacity, qts (L) |
3.3 (3.1) |
| Coolant Capacity, qts (L) |
3.0 (2.8) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Transmission |
| PTO Horsepower, hp (kW) |
14.0 (10.4) |
| Rear PTO Speed, rpm |
540/825 |
| Rear PTO / Engine Speed, rpm |
540/2500 |
| Rear PTO / Engine Speed, rpm |
825/2500 |
| Transmission Type |
Unsynchronized gear |
| Gearbox Type |
6F/2R, gear shift |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry single plate |
| Clutch Disc Diameter, in (mm) |
7.2 (183) |
| Oil Capacity, qts (L) |
12.7 (12.0) |
| Maximum Forward Speed, mph (kph) |
8.0 (12.8) |
| Maximum Reverse Speed, mph (kph) |
4.0 (6.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Manual, ball screw type |
| Brake Type |
Dry internal-expanding |
| Front Tire Size (2WD) |
5.00x10 |
| Rear Tire Size (2WD) |
8.00x16 |
| Front Tire Size (4WD) |
6.00x12 |
| Rear Tire Size (4WD) |
8.00x16 |
| Front Tire Size (2WD Turf) |
18x9.50-8 |
| Rear Tire Size (2WD Turf) |
29x12.00-15 |
| Front Tire Size (4WD Turf) |
20x8.00-10 |
| Rear Tire Size (4WD Turf) |
31x13.50-15 |
| Front Tread (2WD), in (mm) |
27.9 (710) |
| Front Tread (4WD), in (mm) |
33.9 (860) |
| Rear Tread (2WD), in (mm) |
29.1-35.8 (730-900) |
| Rear Tread (4WD), in (mm) |
29.1-35.8 (730-900) |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
4.0 (15.1) |
| Hydraulic Pressure, Bar (psi) |
113 (1640) |
| Hydraulic Fluid Capacity, gal (L) |
3.2 (12.1) |
| Number of Standard Remote Valves |
1 |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Top link sensing |
| Lift Capacity at 24" (0.6m) behind pin, lb (kg) |
705 (320) |
| Lift Capacity at pin, lb (kg) |
1036 (470) |
| Wheelbase, in (mm) |
55.1 (1390) |
| Length, in (mm) |
100 (2540) |
| Overall Height (2WD), in (mm) |
71.1 (1805) |
| Overall Height (4WD), in (mm) |
71.9 (1820) |
| Overall Width, in (mm) |
44.9 (1140) |
| Ground Clearance (2WD), in (mm) |
9.4 (240) |
| Ground Clearance (4WD), in (mm) |
8.5 (215) |
| Weight (2WD), lb (kg) |
1115 (505) |
| Weight (4WD), lb (kg) |
1255 (570) |
