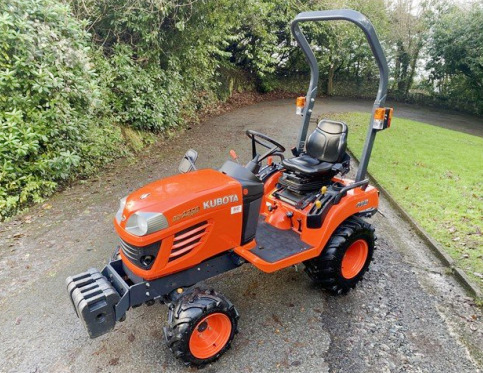

Kubota BX2350 Tractor

The Kubota BX2350 is a BX50 series compact utility tractor. This model was manufactured from 2006 to 2008. The components of Kubota BX2350 driveline system: D902 vertical 3-cylinder indirect injection liquid-cooled diesel engine and 2-range hydrostatic transmission.

A 54.8 cubic inches engine power is 20.4 Hp (15.2 kW), and a maximum torque is 56.1 Nm (41.4 lb-ft) at 2200 rpm. The max. forward speed - 8.1 mph (13 km/h), a maximum reverse speed - 6.2 mph (10 km/h). The open center hydraulic system includes a gear pump with rated capacity of 6,3 gpm (23,8 lpm).

The hydraulic system pressure is 160 bar (2320 psi). A three-point hitch lift capacity is 990 lbs (450 kg). The 4WD Kubota BX2350 tractor fitted with 18x8.50-10 front tires and 26x12.00-12 rear tires. The wheelbase is 55.1 inches (1390 mm). The tractor is compatible with Kubota LA243 front end loader. The loader has a 48" bucket and maximum lift height of 71.3" (1810 mm).

Engine
Engine Model Kubota D902
Engine Type Indirect injection, vertical, water-cooled, 4-cycle diesel
Number of Cylinders Three
Displacement, cu in (L) 54,8 (0,9)
Engine Bore, in (mm) 2,83 (72,0)
Engine Stroke, in (mm) 2,90 (73,6)
Rated Engine Power, hp (kW) 20,4 (15,2)
Maximum Engine Power, hp (kW) 24,8 (18,5)
Rated Engine Speed, rpm 3200
Maximum Torque, Nm (ft-lbs) 56,1 (41,4)
Compression 24:1
Fuel System Injection Pump
Fuel Injection to combustion chamber Indirect injection
Fuel Tank Capacity, gal (L) 6,6 (25,0)
Oil Capacity, qts (L) 3,3 (3,1)
Coolant Capacity, qts (L) 2,8 (2,7)
Electrical System Rating, Volts 12
Battery 12 V, CCA 535A

Power Take-Off
Rear PTO Operational Type Independent
PTO Horsepower, hp (kW) 17,7 (13,2)
PTO Clutch Hydraulic
Rear PTO Speeds, rpm 540
Rear PTO/Engine Speeds, rpm 540/3068
Mid-PTO Operational Type Independent
Mid-PTO Speeds, rpm 2500
Mid-PTO/Engine Speeds, rpm 2500/3125

Transmission
Transmission Type Hydrostatic (HST)
Number of Forward/Reverse Gears Infinite 2-range (2+2)
Maximum Forward Speed, mph (kph) 8,1 (13,0)
Maximum Reverse Speed, mph (kph) 6,2 (10,0)
Transmission Oil Capacity, qts (L) 14,4 (11,7)


Wheels and Tires
Drive Wheels 4WD 4x4
Steering Configuration Front steer
Steering System Hydrostatic Power
Service Brake Wet disc
Front Tire Size (Std) 18x8.50-10
Rear Tire Size (Std) 26x12.00-12

Hydraulic System
Hydraulic System Type Open center
Implement Pump Flow, gpm (Lpm) 6,3 (23,8)
Hydraulic Capacity, qts (L) 3,1 (11,7)
Hitch Type Rear
3-Point Hitch Category 1
Standard Lift Capacity 24-in behind pin, lb (kg) 670 (305)
Standard Lift Capacity at lift pin, lb (kg) 990 (450)

Dimensions and Weight
Wheelbase, in (mm) 55,1 (1390)
Length, in (mm) 95,5 (2420)
Height, in (mm) 70,4 (1780)
Overall Width, in (mm) 44,5 (1130)
Ground Clearance, in (mm) 8,7 (220)
Turning Radius, in (mm) 90,1 (2300)
Weight, lb (kg) 1322 (600)

Front End Loader
Loader Model Kubota LA243
Height (to pin), in (mm) 71.3 (1810)
Clearance, dumped bucket, in (mm) 52.4 (1330)
Dump reach, in (mm) 28.9 (730)
Dump angle, deg 45
Rollback angle, deg 29
Breakout force (lift), lb (kg) 992 (449)
Lift to full height (at 500 mm), lb (kg) 518 (234)
Bucket capacity, cu.yd (cu.m) 0.18 (0.1)
Bucket width, in (mm) 48 (1210)
