Kubota L1501 Troubleshooting
The

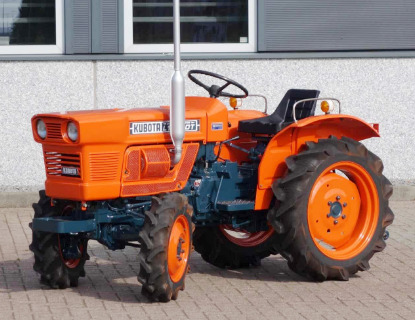

Kubota L1501 is a 2-wheel drive or 4-wheel drive sub-compact utility tractor.
This model was manufactured from 1975 to 1978. The tractor was designed in 2
versions: L1501F (2WD) and L1501DT (4WD).
The Kubota L1501 tractor is equipped with a 45.3 cubic inches (0.7L)
Kubota Z751 4-cycle 2-cylinder liquid cooled diesel engine. The engine
has a cylinder bore of 3.00" (76 mm), piston stroke of 3.22" (82 mm),
and rated power of 15 hp (11.2 kW). The mechanical transmission includes
a dry clutch and unsynchronized gearbox with 16 forward and 4 reverse
gears.
The maximum forward speed - 10 mph (16 kph), maximum reverse speed - 5
mph (8 kph). The open center hydraulic system used a gear pump with a
rated capacity of 4.8 gpm (18.3 lpm). The hydraulic pressure is 147 bar
(2130 psi). The Kubota L1501 is equipped with a manual steering system,
independent mechanical brakes, 4.00x12 front tires, and 8.30x22 rear
tires. The wheelbase is 54.8 (1380).
| Engine Troubleshooting |
| Engine won't start or starts hard |
| Fuel filter is clogged - Service the filter |
| No fuel supply from the tank - Open the fuel supply valve |
| Air trapped in fuel system - Bleed air |
| Fuel injectors are damaged or dirty - Check fuel injectors and replace if required |
| Fuel injection pump malfunctioning - Rebuild or change fuel pump |
| Poor engine compression - Inspect cylinder block and change defective components |
| Engine stops running unexpectedly |
| Low coolant temperature - Warm up engine as required |
| Water, dirt, or air in fuel system - Drain, flush, fill, and bleed system |
| Bad fuel injection - Check and adjust |
| Plugged fuel filter - Change the filter element |
| Fuel injectors are damaged or dirty - Service or change fuel injectors |
| Diesel starts but suddenly stops |
| Unadjusted fuel injection pump timing - Adjust injection timing |
| Clogged fuel filter element - Clean or replace the filter |
| Fuel injector nozzles fault - Change or clean injector nozzles |
| Fuel injection pump is defective - Replace or rebuild injection pump |
| Dirty air cleaner - Air cleaner maintenance required |
| Engine stops while idling |
| Incorrectly adjusted low idle speed - Normalize low idle speed |
| Fuel injection pump damage - Rebuild or replace pump |
| Fuel injector nozzles are damaged - Service or replace injector nozzles |
| Valve out of adjustment - Correct valve clearance needs to be set |
| Lack of coolant in cooling system - Coolant needs to be refilled. Any leaks must be repaired |
| Cooling system is clogged or cooling components are defective - Service the cooling system or replace faulty components |
| Engine oil level low - Fill up the oil to required level |
| Incorrect fan belt tension or broken belt - Replace or adjust belt tension properly |
| Thermostat is defective - Replace the thermostat |
| Clogged fuel injectors - Test fuel injectors and change if necessary |
| Incorrect fuel injection pressure - Correct the pressure settings |
| Air filter element is dirty - Install new filter element or replace it |
| Plugged engine oil filter - Replace or clean engine oil filter element |
| Engine is overloaded - Shift to lower gear or reduce the load |
| Improper valve clearance - Correct valve clearance |
| Too low idle RPM - Adjust low idling as recommended |
| Restricted fuel hoses or pipes - Fuel hoses and pipes must be clean |
| Engine compression too low: Valves are faulty or leaking - Valve replacement required |
| Incorrect setting of fuel injection pump timing - Check the fuel injection pump timing setting |
| Fuel injector nozzles are damaged or dirty - Install a new set of well-balanced nozzles |
| Engine oil level low - Fill up the engine oil |
| Engine is cold - Warm up engine as required |
| Crankshaft or main bearings wear - Need to install new components |
| Stuck or worn piston rings - Piston rings need to be replaced |
| Loose flywheel bolts - Inspect flywheel bolts and tighten properly |
| Diesel engine consuming too much oil |
| External oil leaks: Seals or gaskets are wearing excessively - Replace to repair leaks |
| Improper oil viscosity - Fill up with the correct oil viscosity |
| Worn or stuck piston rings - Change piston rings |
| Worn valve guides and valve stems - Install new valves |
| Cylinder liners or pistons are scuffed - Inspect liners and pistons, replace as necessary |
| Electrical System Troubleshooting |
| Battery cannot be charged |
| Dead cell in battery - Install a new battery |
| Damaged battery electrical wire harness - Inspect electrical wires for damage, change or repair |
| Battery cables and terminals are loose or corroded - Cables and terminals must be tightened or cleaned |
| Belt is damaged or belt tension is incorrectly adjusted - Adjust belt tension correctly or change belt |
| Low battery output voltage - Battery is drained, recharge it |
| Battery is draining quickly - Battery needs to be serviced or replaced |
| Bad battery electrical wire harness - Check wires for malfunctions, repair or replace |
| Loose or corroded terminals and cables - Terminals and cables need to be tightened or cleaned |
| Low battery voltage - Battery needs to be recharged |
| Discharged or defective battery - Recharge or replace battery |
| Starter motor failing - Repair or change starter |
| Disconnected or incorrectly connected cables - Need to reconnect cables correctly |
| Transmission Troubleshooting |
| Gear shift is hard |
| Worn or misadjusted clutch - Adjust or install new clutch |
| Gear shift linkage is damaged or loose - Repair or change shift linkage |
| Bent or worn shift forks - Shift forks need to be replaced |
| Faulty gear shifting mechanism - Faulty parts must be changed |
| Transmission oil pressure is low |
| Insufficient fluid supply - Check and refill the transmission fluid |
| Plugged transmission fluid filter (if equipped) - Replace or clean transmission fluid filter |
| Relief valve is faulty - Change relief valve |
| Transmission is making noise |
| Bearings are worn or broken - Replace faulty bearings |
| Low transmission oil level - Add transmission oil as required |
| Contaminated transmission oil - Change transmission oil |
| Gears are defective or backlash is incorrect - Change worn gears or set backlash correctly |
| Damaged or worn shift forks - Replace the shift forks |
| Seals or gaskets are damaged - Install new seal or gaskets |
| Transmission case is cracked - Replace case or transmission assembly |
| Hydraulics Troubleshooting |
| Hydraulic system overheated |
| The system pressure has not been corrected - Make the correct settings |
| Main relief valve incorrect adjustment or failure - Adjust the valve or replace if necessary |
| Contaminated hydraulic fluid - Change hydraulic fluid |
| Air leaks in hydraulic system - Inspect the suction pipe, fittings, and pump seals |
| Low hydraulic oil pressure |
| Hydraulic oil level is insufficient - Check oil level and add hydraulic oil as required |
| Hydraulic fluid filter clogging - Install a new hydraulic filter element |
| Hydraulic pump not working - Test pump performance and replace pump if necessary |
| Hydraulic spool valve is faulty or out of adjustment - Replace or adjust correctly |
| Hydraulic cylinder is broken - Inspect the hydraulic cylinder parts for damage or wear and replace if required |
| Leakage in hydraulic pipes - Identify leaks in the system and repair it |
| 3-point hitch raises slowly or won't raise |
| Not enough hydraulic fluid in the system - Add fluid to the hydraulic system |
| Cold hydraulic fluid - Warm up the fluid |
| Dirty hydraulic oil filter - Install a new hydraulic filter element |
| Hydraulic pump malfunction - Check pump capacity and change if necessary |
| Defective or misadjusted main relief valve - Adjust relief valve or change if required |
| Defective or not adjusted hydraulic control valve - Adjust properly or change |
| Hydraulic cylinder malfunction - Inspect the hydraulic cylinder parts for damage or wear and replace if required |
| Suction line is damaged or disconnected - Connect or replace |
| Hitch can't drop or drops too slowly |
| Faulty or incorrect setting hydraulic control valve - Set correctly or replace |
| Hydraulic cylinder failure - Inspect the hydraulic cylinder parts for damage or wear and replace if required |
| Hitch rock shaft is worn Replace the shaft |
| Hitch has mechanical defects - Replace faulty or worn hitch components |
| Hitch lower or lift is jerky |
| Air trapped in the hydraulic system - Inspect the pump seals, suction pipe, and fittings |
| Hydraulic oil is dirty - Hydraulic oil change required |
| Hydraulic pump failure - Test the pump performance and change pump if required |
| Faulty or incorrect setting hydraulic control valve - Set correctly or replace |
| Hydraulic cylinder malfunction - Check cylinder components for damage or wear and change if necessary |
| Steering System Troubleshooting |
| Hard Steering |
| Steering knuckle or steering column is stuck - Inspect steering column and knuckle, replace worn parts |
| Steering gearbox components are worn - Replace defective components of steering gearbox |
| Faulty drag link or tie rod - Replace or repair |
| Insufficient lubrication in steering box - Need to lubricate the gearbox |
| Not adjusted toe-in alignment - Check and adjust toe-in |
| Tires are not correctly inflated - Inflate tires as necessary |
| Excessive steering wheel free play |
| Steering column bearing or shaft is worn - Change faulty parts |
| Steering linkage assembly is worn or loose - Repair or replace steering linkage |
| Worn steering gearbox bearings - Replace the bearings |
| Front wheel hub bearings or steering knuckles are worn - Change hub bearings or knuckles |
| Damaged or worn steering tie-rod ends - Change faulty part |
| Tractor pulls to right or left |
| Worn or loose steering linkage assembly - Repair or replace steering linkage |
| Defective steering knuckle bushing - Replace knuckle bushing |
| Uneven tire pressure - Inflate the tires properly |
| Toe-in adjustment is incorrect - Adjust toe-in correctly |
