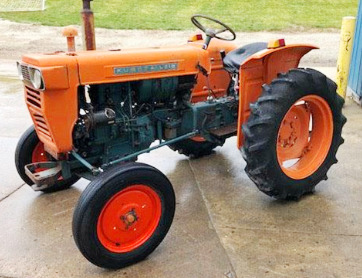

Kubota L210 Tractor
The
Kubota L210 is a 2WD compact utility tractor. This model was manufactured
between 1972 and 1973. The Kubota L210 driveline consists of a 65.3 cu.in (1.07
L) Kubota Z1100-A vertical 4-cycle two cylinder liquid-cooled diesel engine and
sliding gear transmission with 6 forward and 2 reverse gears.
The engine has a cylinder bore of 3.46" (88 mm), piston stroke of 3.46"
(88 mm), rated power of 21 hp (15.7 kW), and maximum torque of 60 hp
(44.5 lb-ft) at 1600 rpm. Max. forward speed - 11.3 mph (18.2 km/h),
maximum reverse speed - 2.8 mph (4.5 km/h).
The open center hydraulic system used a gear pump with rated capacity of
2.9 gpm (10.8 lpm). The hydraulic pressure is 98 bar (1420 psi). The
Kubota L210 was equipped with a manual steering system, differential
mechanical expanding shoe brakes, 4.00x15 front tires, and 9.9x24 rear
tires. The wheelbase is 59 in (1490 mm).
| Engine Model |
Kubota Z1100-A |
| Engine Type |
Vertical, 4-Cycle, 2-Cylinder Diesel |
| Number of Cylinders |
2 |
| Displacement, cu in (L) |
65.3 (1.07) |
| Engine Bore, in (mm) |
3.46 (88.0) |
| Engine Stroke, in (mm) |
3.46 (88.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
21.0 (15.7) |
| Rated Engine Speed, rpm |
2700 |
| Maximum Torque, Nm (ft-lbs) |
60.0 (44.5) |
| Torque Speed, rpm |
1600 |
| Slow Idle Speed, rpm |
600-650 |
| High Idle Speed, rpm |
2850 |
| Compression |
20:1 |
| Firing Order |
1-2 |
| Fuel Pump |
ND-PFR 2K-70 |
| Fuel Nozzle |
N-12 SD |
| Fuel Injection Timing (BTDC), deg |
24 |
| Fuel Injection Pressure, MPa (psi) |
14.0 (1990) |
| Fuel Tank Capacity, gal (L) |
6.3 (24.0) |
| Oil Capacity, qts (L) |
5.2 (5.0) |
| Coolant Capacity, qts (L) |
7.2 (6.8) |
| Electrical System Rating, Volts |
12 |
| Starter Rating |
12V, 0.9 kW |
| Battery, Capacity, AH |
80 |
| PTO Operational Type |
Transmission |
| PTO Horsepower, hp (kW) |
19.1 (14.2) |
| PTO Speeds, rpm |
650/990 |
| Transmission Type |
Sliding gear |
| Gearbox Type |
6F/2R |
| Number of Forward Speeds |
6 |
| Number of Reverse Speeds |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qt (L) |
12.8 (12.1) |
| Maximum Speed (Forward), mph (kph) |
11.3 (18.2) |
| Maximum Speed (Reverse), mph (kph) |
2.8 (4.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Manual |
| Service Brake |
Differential mechanical expanding shoe |
| Front Tire Size |
4.00-15 |
| Rear Tire Size |
9.9-24 |
| Front Tread, in (mm) |
36.2-52.0 (910-1320) |
| Rear Tread, in (mm) |
35.8-49.3 (900-1250) |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
2.9 (10.8) |
| Hydraulic Pressure, Bar (psi) |
98 (1420) |
| Hydraulic Capacity, gal (L) |
7.4 (28.0) |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity at lift pin, lb (kg) |
2050 (930) |
| Wheelbase, in (mm) |
59 (1490) |
| Length, in (mm) |
76.5 (1940) |
| Height, in (mm) |
74.5 (1890) |
| Overall Width, in (mm) |
44.1 (1120) |
| Ground Clearance, in (mm) |
13.5 (340) |
| Operating Weight, lb (kg) |
2160 (980) |
| Ballasted Weight, lb (kg) |
3610 (1640) |
