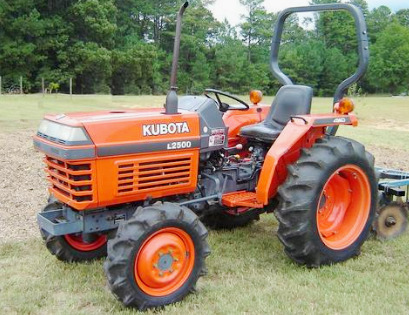

Kubota L2500 Tractor

The Kubota L2500 standard L-series compact utility tractor was manufactured from 1998 to 2000. The Kubota L2500 driveline includes a Kubota D1403 vertical 4-cylinder liquid-cooled diesel engine and sliding gear transmission with 8 forward and 2 reverse gears.

A 85 cu.in (1.4 L) engine has a cylinder bore of 3.15" (80 mm), piston stroke of 3.64" (92.4 mm), and rated power of 27 hp (20.2 kW) at 2800 rpm. Max. travel speed (forward/reverse): 14.3 mph (22 km/h) and 9.6 mph (15.5 km/h). The open center hydraulic system used a gear pump with flow rate of 4.6 gal/min (17.4 l/min).

The hydraulic system pressure is 2250 psi (155 bar). The L2500DT (4WD) models are equipped with 7.00x15 front tyres and 11.2x24 rear tyres. The 5.00x15 front tyres and 11.2x24 rear tyres fit L2500F (2WD) tractors. The wheel base is 61.2 inches (1550 mm). The Kubota L2500 is compatible with a Kubota LA450S loader or Kubota LB400 loader with a lift capacity to maximum height of 882 lbs (400 kg), and breakout force of 1653 lbs (750 kg).

Engine
Engine Model Kubota D1403
Engine Type Vertical, Water-cooled, 4 cycle diesel
Number of Cylinders 3
Displacement, cu in (L) 85 (1.39)
Engine Bore, in (mm) 3.15 (80.0)
Engine Stroke, in (mm) 3.64 (92.4)
Rated Engine Power, hp (kW) 27.0 (20.2)
Rated Engine Speed, rpm 2800
Compression 23:1
Slow Idle Speed, rpm 700-750
High Idle Speed, rpm 3000
Firing Order 1-2-3
Fuel Injection Pump Bosch mini
Fuel Injection Pressure, MPa (psi) 13.73 (1990)
Fuel Tank Capacity, gal (L) 7.7 (29.1)
Oil Capacity, qts (L) 5.8 (5.5)
Coolant Capacity, qts (L) 6.4 (6.1)
Electrical System Rating, Volts 12
Starting System Electric starting with starter
Battery Rating, Ah 60

Power Take-Off
PTO Operational Type Live
PTO Horsepower, hp (kW) 22.5 (16.8)
PTO Speeds, rpm 540

Transmission
Transmission Type Sliding gear
Gearbox Type 8F/2R
Number of Forward Gears 8
Number of Reverse Gears 2
Clutch Type Dry disc
Transmission Oil Capacity, qt (L) 34.8 (33.0)
Maximum Speed (Forward), mph (kph) 14.3 (22.0)
Maximum Speed (Reverse), mph (kph) 9.6 (15.5)


Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Manual / Power (Opt)
Service Brake Wet disc
Front Tire Size (2WD) 5.00-15
Front Tire Size (4WD) 7.00-15
Rear Tire Size 11.2-24

Hydraulic System
Hydraulic System Type Open Center
Implement Pump Type Gear
Implement Pump Flow (2WD), gpm (Lpm) 4.6 (17.4)
Implement Pump Flow (4WD), gpm (Lpm) 7.2 (27.3)
Hydraulic Pressure, Bar (psi) 155 (2250)
3-Point Hitch Category 1
Standard Lift Capacity at lift pin, lb (kg) 1985 (900)

Dimensions and Weight
Wheelbase, in (mm) 61.2 (1550)
Length, in (mm) 103.9 (2630)
Height, in (mm) 83.1 (2110)
Overall Width, in (mm) 50 (1270)
Ground Clearance, in (mm) 13.6 (340)
Weight, lb (kg) 2700 (1220)
