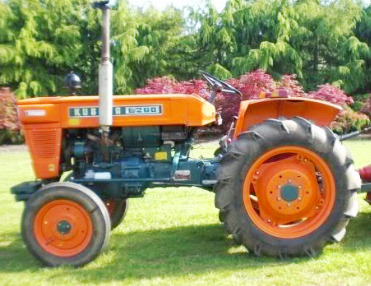

Kubota L260 Tractor
The
Kubota L260 is a 2WD compact utility tractor. This model was manufactured from
1970 to 1976. The Kubota L260 tractor is equipped with Kubota Z1300 vertical
4-stroke 2-cylinder diesel engine.
A 77.7 cubic inches (1.3 L) engine has a cylinder bore of 3.57" (90 mm),
piston stroke of 3.97" (100 mm), rated power of 26 hp (19.4 kW), and
maximum torque of 79.7 hp (58.8 lb-ft) at 1600 rpm. The mechanical
transmission includes a dry single-plate clutch and sliding mesh gearbox
with 8 forward and 2 revers gears.
Max. forward speed - 8.8 mph (14.1 km/h), maximum reverse speed - 5.6
mph (9 km/h). The open center hydraulic system used a gear pump with a
flow of 2.9 gallons per minute (10.7 liters per minute). The hydraulic
system pressure is 138 bar (1990 psi). The Kubota L260 was equipped with
a manual steering system, differential mechanical expanding shoe brakes,
5.00x15 front tires, and 11.2x24 rear tires. The wheel base is 59" (1490
mm).
| Engine Model |
Kubota Z1300 |
| Engine Type |
Vertical, 4-Stroke 2-Cylinder Diesel |
| Number of Cylinders |
Two |
| Displacement, cu in (L) |
77.7 (1.272) |
| Engine Bore, in (mm) |
3.57 (90.0) |
| Engine Stroke, in (mm) |
3.97 (100.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
26.0 (19.4) |
| Rated Engine Speed, rpm |
2600 |
| Maximum Torque, Nm (ft-lbs) |
79.7 (58.8) |
| Torque Speed, rpm |
1600 |
| Slow Idle Speed, rpm |
600-650 |
| High Idle Speed, rpm |
2850 |
| Compression Ratio |
21.5:1 |
| Firing Order |
1-2 |
| Fuel Injection Timing (BTDC), deg |
20 |
| Timing Mark Location |
Flywheel |
| Fuel Injection Pressure, MPa (psi) |
11.73 (1700) |
| Fuel Tank Capacity, gal (L) |
8.1 (30.4) |
| Oil Capacity, qts (L) |
5.1 (4.8) |
| Coolant Capacity, qts (L) |
7.1 (6.9) |
| Electrical System Rating, Volts |
12 |
| Starter Rating |
12V, 2.0 kW |
| Battery, Capacity, Ah |
110 |
| Ground Polarity |
Negative |
| PTO Operational Type |
Transmission |
| PTO Horsepower, hp (kW) |
24.1 (18.0) |
| PTO Speeds, rpm |
540 |
| Transmission Type |
Sliding gear |
| Gearbox Type |
8F/2R |
| Number of Forward Speeds |
8 |
| Number of Reverse Speeds |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qt (L) |
18.0 (17.0) |
| Maximum Speed (Forward), mph (kph) |
8.8 (14.1) |
| Maximum Speed (Reverse), mph (kph) |
5.6 (9.0) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Manual |
| Brakes Type |
Differential mechanical expanding shoe |
| Front Tire Size |
5.00-15 |
| Rear Tire Size |
11.2-24 |
| Front Tread, in (mm) |
40-56 (1010-1420) |
| Rear Tread, in (mm) |
40-61.8 (1000-1560) |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
2.88 (10.7) |
| Hydraulic Pressure, Bar (psi) |
138 (1990) |
| Hydraulic Capacity, gal (L) |
7.4 (28.0) |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity at lift pin, lb (kg) |
2650 (1200) |
| Wheelbase, in (mm) |
59 (1490) |
| Length, in (mm) |
76.5 (1940) |
| Height (Steering Wheel), in (mm) |
52.5 (1330) |
| Height (Exhaust), in (mm) |
74.5 (1890) |
| Overall Width, in (mm) |
44.1 (1120) |
| Ground Clearance, in (mm) |
14 (350) |
| Operating Weight, lb (kg) |
2160 (980) |
| Ballasted Weight, lb (kg) |
3610 (1640) |
