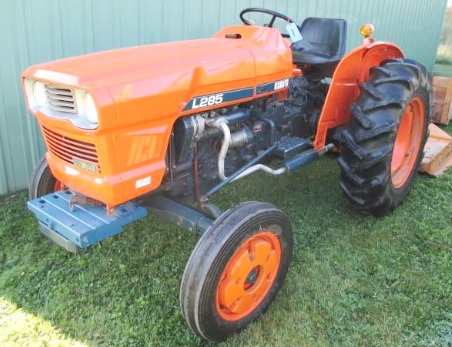

Kubota L285 Tractor
The
Kubota L285 is a 2-wheel drive compact utility tractor. This model was
manufactured from 1975 to 1981. The Kubota L285 driveline consists of a 90.7
cu.in (1.5 L) Kubota V1501-A vertical 4-cycle four-cylinder naturally aspirated
diesel engine with a rated power of 30 hp (22.4 kW) at 2400 rpm, and sliding
gear transmission with 8 forward and 2 reverse gears.
The maximum travel speed (forward and reverse): 14.3 mph (22 km/h) / 9.6
mph (15.5 km/h). The open center hydraulic system includes a gear pump
with a flow of 6.2 gal/min (23.5 l/min). The main relief pressure is
2250 psi (155 bar).
The Kubota L285 is equipped with a manual steering system, wet disc
brakes, 5.00x15 front tires, and 11.2x24 rear tires. The wheelbase is 67
in (1700 mm). The tractor is compatible with Kubota L1200 front end
loader.
| Engine Model |
Kubota V1501-A |
| Engine Type |
Vertical, 4-Cycle, Four-Cylinder Diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
90.7 (1.49) |
| Engine Bore, in (mm) |
3.01 (76.0) |
| Engine Stroke, in (mm) |
3.23 (82.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
30.0 (22.4) |
| Rated Engine Speed, rpm |
2400 |
| Slow Idle Speed, rpm |
800-850 |
| High Idle Speed, rpm |
2550 |
| Firing Order |
1-3-4-2 |
| Fuel Injection Timing (BTDC), deg |
25 |
| Fuel Injection Pressure, MPa (psi) |
14.7 (2135) |
| Fuel Tank Capacity, gal (L) |
9.2 (34.8) |
| Oil Capacity, qts (L) |
9.4 (8.9) |
| Coolant Capacity, qts (L) |
7.4 (7.0) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
26.5 (19.8) |
| PTO Speeds, rpm |
695/1164 |
| Transmission Type |
Sliding gear |
| Gearbox Type |
8F/2R |
| Number of Forward Speeds |
8 |
| Number of Reverse Speeds |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qt (L) |
34.8 (33.0) |
| Maximum Speed (Forward), mph (kph) |
14.3 (22.0) |
| Maximum Speed (Reverse), mph (kph) |
9.6 (15.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Manual |
| Brakes Type |
Wet disc |
| Front Tire Size |
5.00-15 |
| Rear Tire Size |
11.2-24 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
6.2 (23.5) |
| Hydraulic Pressure, Bar (psi) |
155 (2250) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position or draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
2200 (990) |
| Wheelbase, in (mm) |
67 (1700) |
| Length, in (mm) |
118.5 (3000) |
| Height, in (mm) |
55.25 (1400) |
| Overall Width, in (mm) |
62.6 (1590) |
| Ground Clearance, in (mm) |
13.3 (330) |
| Weight, lb (kg) |
2230 (1010) |
