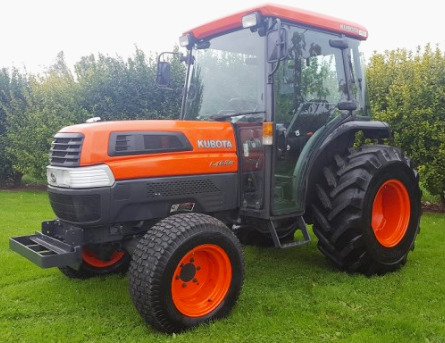

Kubota L4630 Tractor
The
Kubota L4630 L30 series compact utility tractor was manufactured between 2003
and 2007. This model was designed in 4 versions: L4630DT (8-Speed), L4630GST
(12-Speed), L4630HST (Hydrostatic), and L4630GSTC (Cab).
The Kubota L4630 tractor is powered by 134.1 cu.in (2.2L) Kubota V2203
4-cycle vertical 4-cylinder indirect injection naturally aspirated
diesel engine with a rated power of 44.7 Hp (33.3 kW) and 146.2 Nm
(107.8 lb-ft) of maximum torque at 1600 rpm.
The Kubota L4630 is fitted with three transmission options: FST Sync
Shuttle fully synchronized transmission with 8 forward and 8 reverse
gears, Glide Shift fully synchronized transmission with 12 forward and 8
reverse gears, and 3-range hydrostatic transmission with infinite
forward and reverse gears. The maximum travel speed (forward/reverse):
18.7 mph (30 km/h) and 16.8 mph (27 km/h). The open center hydraulic
system used a gear pump with a rated capacity of 9.8 gal/min (37 l/min).
The hydraulic system pressure is 177 bar (2560 psi). The Kubota L4630 is
equipped with a hydrostatic power steering, wet disc brakes, 8.00x16 or
8.3x16 front tires, and 13.6x24 or 14.9x24 rear tires. The wheel base is
74.6" (1895 mm). The tractor is compatible with a
Kubota LA853 front-end
loader with lift capacity to full height of 2374 lbs (1076 kg) and
breakout force of 3125 lbs (1417 kg).
| Engine Model |
Kubota V2203 |
| Engine Type |
4-cycle, vertical, 4-cylinder indirect injection diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
134.1 (2.197) |
| Engine Bore, in (mm) |
3.40 (87.0) |
| Engine Stroke, in (mm) |
3.60 (92.4) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
44.7 (33.3) |
| Rated Engine Speed, rpm |
2700 |
| Maximum Torque, Nm (ft-lbs) |
146.2 (107.8) |
| Torque Speed, rpm |
1600 |
| Compression Ratio |
20.5:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Indirect injection |
| Injection Pump |
Bosch Type |
| Lubricating system |
Forced Lubrication by Pump |
| Cooling system |
Pressurized |
| Fuel Tank Capacity, gal (L) |
10.6 (40.0) |
| Oil Capacity, qts (L) |
8.7 (8.2) |
| Coolant Capacity, qts (L) |
7.9 (7.5) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40/60 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
40.1 (29.5) |
| Rear PTO Speed, rpm |
540/750 |
| Rear PTO / Engine Speed, rpm |
540/2550, 750/2250 |
| Mid PTO |
Optional |
| Mid PTO Speed, rpm |
2000 |
| Transmission Type |
FST Sync Shuttle |
| Gearbox Type |
8F/8R, Fully synchronized |
| Creeper |
Optional |
| Number of Forward Gears |
8 (16 with creeper) |
| Number of Reverse Gears |
8 (16 with creeper) |
| Clutch Type |
Dry type single stage |
| Oil Capacity, qts (L) |
45.6 (43.0) |
| Maximum Forward Speed, mph (kph) |
17.9 (28.8) |
| Maximum Reverse Speed, mph (kph) |
14.9 (24.0) |
| Transmission Type |
GST (Glide Shift) |
| Gearbox Type |
12F/8R, Fully synchronized |
| Creeper |
Optional |
| Number of Forward Gears |
12 (24 with creeper) |
| Number of Reverse Gears |
8 (16 with creeper) |
| Clutch Type |
Dry type single stage |
| Oil Capacity, qts (L) |
45.6 (43.0) |
| Maximum Forward Speed, mph (kph) |
17.9 (28.8) |
| Maximum Reverse Speed, mph (kph) |
14.9 (24.0) |
| Transmission Type |
Hydrostatic (HST) |
| Number of Forward Gears |
Infinite (3-range) |
| Number of Reverse Gears |
Infinite (3-range) |
| Oil Capacity, qts (L) |
46.5 (44.0) |
| Maximum Forward Speed, mph (kph) |
18.7 (30.0) |
| Maximum Reverse Speed, mph (kph) |
16.8 (27.0) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (Std) |
8.0x16 |
| Rear Tire Size (Std) |
13.6x24 |
| Front Tire Size (Opt) |
8.3x16 |
| Rear Tire Size (Opt) |
14.9x24 |
| Front Tread, in (mm) |
45.1 (1145) |
| Rear Tread, in (mm) |
44.9-55.5 (1140-1410) |
| Hydraulic System Type |
Open Center |
| Implement Pump Flow, gpm (Lpm) |
9.8 (37.0) |
| Steering Pump Flow, gpm (Lpm) |
4.9 (18.5) |
| Hydraulic Pressure, Bar (psi) |
177 (2560) |
| Number of Standard Remote Valves |
3 |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position control |
| Standard Lift Capacity 24-in (600 mm) behind pin, lb (kg) |
2760 (1250) |
| Standard Lift Capacity at lift pin, lb (kg) |
3860 (1750) |
| Upper Link Pin Diameter, in (mm) |
0.75 (19.0) |
| Lower Link Pin Diameter, in (mm) |
0.88 (22.4) |
| Lower Hitch Spacing, in (mm) |
28 (718) |
| Wheelbase, in (mm) |
74.6 (1895) |
| Overall Length, in (mm) |
124.8 (3170) |
| Height (ROPS), in (mm) |
95.3 (2420) |
| Height (Cab), in (mm) |
86.4 (2195) |
| Overall Width, in (mm) |
66.5 (1680) |
| Ground Clearance, in (mm) |
15.7 (400) |
| Turning Radius, in (mm) |
106.7 (2700) |
| Weight (ROPS), lb (kg) |
3350 (1520) |
| Weight (Cab), lb (kg) |
3725 (1690) |
