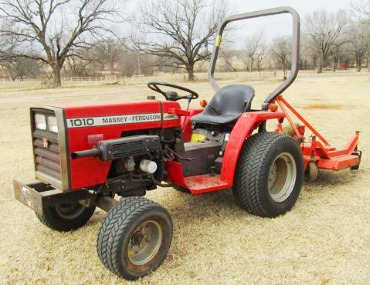

Massey Ferguson 1010 Tractor
The
Massey Ferguson 1010 is a 2WD or 4WD compact utility tractor. This model was
manufactured between 1982 and 1994. The MF 1010 tractor is powered by Toyosha
CS-86 four stroke 3-cylinder indirect injection diesel engine with a max output
power of 16 hp (11.9 kw) at 2500 rpm.
The Massey Ferguson 1010 fitted with two transmission options: 6x2
constant mesh transmission and hydrostatic transmission. The maximum
forward speed is 13 mph (20.8 kph) and maximum reverse speed is 11 mph
(17.5 kph). The open center hydraulic system used a gear pump with a
flow of 3.5 gpm (13.2 liters per minute).
The 4-wheel drive models are equipped with 20.5x8.0-10 front tires and
29x12.0-15 rear tires. The 4.50x10 front tires and 8.00x16 rear tires
are used for tractors with 2-wheel drive. The wheel base is 55.1 inches
(1390 mm) for models with hydro transmission and 50.8 inches (1290 mm)
for models with gear transmission. The 1010 tractor is compatible with
Massey Ferguson 1014 front end loader. The loader has a lift capacity to
full height of 500 lbs (226 kg).
| Engine Model |
Toyosha CS-86 |
| Engine Type |
4 Stroke, 3-cylinder indirect injection diesel |
| Number of Cylinders |
3 |
| Displacement, cu.in (L) |
52.8 (0.90) |
| Engine Bore, in (mm) |
2.75 (70.0) |
| Engine Stroke, in (mm) |
2.95 (75.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
16.0 (11.9) |
| Rated Engine Speed, rpm |
2500 |
| Compression |
17.5:1 |
| Firing Order |
1-2-3 |
| Fuel System |
Indirect injection |
| Air Cleaner |
Dry Type |
| Pre-Heating |
Glow plugs |
| Fuel Tank Capacity, gal (L) |
3.7 (14.0) |
| Coolant Capacity, qts (L) |
3.7 (3.5) |
| Oil Capacity, qts (L) |
2.9 (2.7) |
| Electrical System Rating, Volts |
12 |
| PTO Horsepower (Hydrostatic Transmission), hp (kW) |
12.0 (8.9) |
| PTO Horsepower (Gear Transmission), hp (kW) |
13.0 (9.7) |
| Rear PTO Operational Type |
Transmission with overrunning clutch |
| Rear PTO Speed, rpm |
540 |
| Rear PTO / Engine Speed, rpm |
540/2365 |
| Mid-PTO Speed (Hydrostatic Transmission), rpm |
540 |
| Mid-PTO / Engine Speed, rpm |
540/2114 |
| Front PTO Operational Type |
Independent |
| PTO Clutch Type |
Electric |
| Transmission Type |
Constant mesh |
| Gearbox Type |
6F/2R |
| Number of Forward Speed |
6 |
| Number of Reverse Speed |
2 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
7.3 (184) |
| Oil Capacity, qts (L) |
18.0 (17.0) |
| Maximum Forward Speed, mph (kph) |
11.9 (19.1) |
| Maximum Reverse Speed, mph (kph) |
8.4 (13.5) |
| Transmission Type |
Hydrostatic |
| Number of Forward Speed |
Infinite |
| Number of Reverse Speed |
Infinite |
| Oil Capacity, qts (L) |
18.0 (17.0) |
| Maximum Forward Speed, mph (kph) |
13.0 (20.8) |
| Maximum Reverse Speed, mph (kph) |
11.0 (17.5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical drum |
| Front Tire Size (Std) |
4.50-10 |
| Rear Tire Size (Std) |
8.00-16 |
| Front Tire Size (Turf, 2WD) |
21x8.0-10 |
| Front Tire Size (Turf, 4WD) |
20.5x8.0-10 |
| Rear Tire Size (Turf) |
29x12.0-15 |
| Front Track Width (2WD), in (mm) |
32.3 (820) |
| Front Track Width (4WD), in (mm) |
34.8 (880) |
| Rear Track Width (2WD), in (mm) |
32.9 (830) |
| Rear Track Width (4WD), in (mm) |
38 (960) |
| Hydraulic System Type |
Open center |
| Implement Pump Type, gpm (Lpm) |
Gear |
| Implement Pump Flow, gpm (Lpm) |
3.5 (13.2) |
| Number of Standard Remote Valves |
1 |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity at lift pin, lb (kg) |
1215 (550) |
| Wheelbase (Hydrostatic Transmission), in (mm) |
55.1 (1390) |
| Wheelbase (Gear Transmission), in (mm) |
50.8 (1290) |
| Length (Hydrostatic Transmission), in (mm) |
90.7 (2300) |
| Length (Gear Transmission), in (mm) |
85 (2150) |
| Height (Steering Wheel), in (mm) |
46.2 (1170) |
| Overall Width, in (mm) |
41.9 (1060) |
| Ground Clearance, in (mm) |
10.4 (260) |
| Turning Radius, in (mm) |
75.1 (1900) |
| Weight with Hydrostatic Transmission (2WD), lb (kg) |
1800 (820) |
| Weight with Hydrostatic Transmission (4WD), lb (kg) |
2000 (910) |
| Weight with Gear Transmission (2WD), lb (kg) |
1420 (645) |
| Weight with Gear Transmission (4WD), lb (kg) |
1610 (730) |
