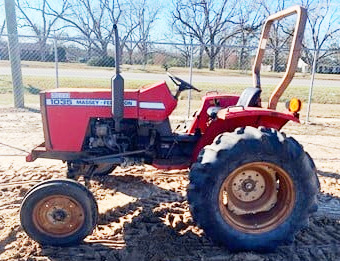

Massey Ferguson 1035 Tractor
The
Massey Ferguson 1035 compact utility tractor was manufactured by Toyosha built
between 1986 and 1991. The Massey Ferguson 1035 tractor is equipped with a 91.8
cubic inches (1.5L) Toyosha MS150 four-stroke three-cylinder indirect injection
naturally aspirated liquid-cooled engine.
The engine has a cylinder bore of 3.23" (82 mm), piston stroke of 3.74"
(95 mm), and rated power of 31 hp (23.1 kW). The manual transmission
consists of a dry clutch and mechanical gearbox with 12 forward and 3
reverse gears. The maximum forward speed - 11.9 mph (19.1 km/h), max.
reverse speed - 8.4 mph (13.5 km/h).
The open center hydraulic system includes a gear pump with fluid flow
rate of 6 gallons per minute (22.7 liters per minute). The rear lift
capacity is 2227 lbs (1010 kg). The 2WD models are equipped with 5.00x15
front tires and 13.6x24 rear tires. The 7.00x16 (AG) or 27x8.50-15
(Turf) front tires and 13.6x24 (AG) or 43x13.5-22 (Turf) rear tires are
used for 4WD tractors. The wheel base is 67.3 inches (1700 mm).
Engine Model |
Toyosha MS150 |
Engine Type |
4 Stroke, 3-cylinder diesel |
Number of Cylinders |
3 |
Displacement, cu.in (L) |
91.8 (1.50) |
Engine Bore, in (mm) |
3.23 (82.0) |
Engine Stroke, in (mm) |
3.74 (95.0) |
Aspiration |
Natural |
Rated Engine Power, hp (kW) |
31.0 (23.1) |
Rated Engine Speed, rpm |
2600 |
Idle Speed, rpm |
750-2800 |
Compression |
23:1 |
Firing Order |
1-2-3 |
Fuel System |
Indirect injection |
Air Cleaner |
Dry |
Fuel Tank Capacity, gal (L) |
7.1 (26.9) |
Oil Capacity, qts (L) |
3.7 (3.5) |
Coolant Capacity, qts (L) |
4.2 (4.0) |
Electrical System Rating, Volts |
12 |
Starting System |
Electric starter |
PTO Operational Type |
Live |
PTO Horsepower, hp (kW) |
26.0 (19.4) |
PTO Speed, rpm |
540 |
Rear PTO / Engine Speed, rpm |
540/2365 |
Transmission Type |
Gear |
Gearbox Type |
12F/3R |
Number of Forward Speed |
12 |
Number of Reverse Speed |
3 |
Clutch Type |
Dry disc |
Clutch Disc Diameter, in (mm) |
8.5 (215) |
Oil Capacity, qts (L) |
29.6 (28.0) |
Maximum Forward Speed, mph (kph) |
11.9 (19.1) |
Maximum Reverse Speed, mph (kph) |
8.4 (13.5) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front Steer |
Steering System |
Power assist |
Brakes Type |
Differential mechanical disc |
Front Tire Size (2WD) |
5.0x15 |
Rear Tire Size (2WD) |
13.6x24 |
Front Tire Size (4WD) |
7.0x16 |
Rear Tire Size (4WD) |
13.6x24 |
Front Tire Size (Turf) |
27x8.50-15 |
Rear Tire Size (Turf) |
43x13.5-22 |
Hydraulic System Type |
Open center |
Implement Pump Type, gpm (Lpm) |
Gear |
Implement Pump Flow, gpm (Lpm) |
6.0 (22.7) |
Number of Standard Remote Valves |
1/2 |
3-Point Hitch Category |
1 |
Rear Lift Capacity, lb (kg) |
2227 (1010) |
Wheelbase, in (mm) |
67.3 (1700) |
Length, in (mm) |
116.9 (2960) |
Height (Steering Wheel), in (mm) |
60.8 (1540) |
Overall Width, in (mm) |
59.3 (1500) |
Shipping Weight (2WD), lb (kg) |
2710 (1230) |
Shipping Weight (4WD), lb (kg) |
2935 (1330) |
