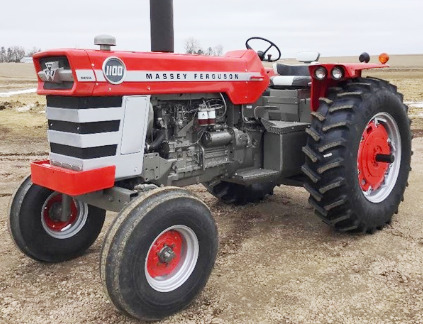

Massey Ferguson 1100 Tractor
The
Massey Ferguson 1100 is a 2WD farm tractor. This model was manufactured from
1964 to 1972. The MF 1100 tractor is powered by two engines: a 354 cu.in (5.8L)
Perkins A6.354 6-cylinder liquid-cooled diesel engine with a rated power of 110
hp (82 kW), or 320 cu.in (5.2L) Waukesha 195 GKA 6-cylinder water-cooled
gasoline engine with a rated power of 109 kp (80.7 kW).
The Massey Ferguson 1100 is fitted with 2 transmission options:
Multi-Power partial powershift transmission with 12 forward and 4
reverse gears, or Dual Range transmission with 6 forward and 2 reverse
gears.
Max forward speed - 19.4 mph (31.2 kph), maximum reverse speed - 19.4
mph (31.2 kph). The open center hydraulic system used a gear pump with a
rated capacity of 20 gal/min (75.7 l/min). The hydraulic pressure is 190
bar (2750 psi). The Massey Ferguson 1100 was equipped with a hydrostatic
power steering, wet disc brakes, 7.50x18 front tires, and 15.5x38 rear
tires. The wheel base is 102.4" (2600 mm).
| Engine Model |
Perkins A6.354 |
| Engine Type |
4 Stroke, six-cylinder liquid-cooled diesel |
| Number of Cylinders |
6 |
| Displacement, cu.in (L) |
354 (5.80) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
110.0 (82.0) |
| Rated Engine Speed, rpm |
2400 |
| Maximum Torque, Nm (ft-lbs) |
378 (278) |
| Torque Speed, rpm |
1300 |
| Compression |
17.5:1 |
| Firing Order |
1-5-3-6-2-4 |
| Air Cleaner |
Dry Type |
| Fuel Tank Capacity, gal (L) |
33.6 (127.2) |
| Coolant Capacity, qts (L) |
21.0 (19.8) |
| Oil Capacity, qts (L) |
15.0 (16.0) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| Engine Model |
Waukesha 195 GKA |
| Engine Type |
4 Cycle, six-cylinder liquid-cooled gasoline |
| Number of Cylinders |
6 |
| Displacement, cu.in (L) |
320 (5.20) |
| Engine Bore, in (mm) |
4.13 (105.0) |
| Engine Stroke, in (mm) |
4.00 (102.0) |
| Rated Engine Power, hp (kW) |
109.0 (80.7) |
| Rated Engine Speed, rpm |
2200 |
| Compression |
8.0:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel Tank Capacity, gal (L) |
33.6 (127.2) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
94.0 (71.1) |
| PTO Speed, rpm |
540/1000 |
| Transmission Type |
Multi Power |
| Gearbox Type |
12F/4R, Partial powershift |
| Number of Forward Speed |
12 |
| Number of Reverse Speed |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
19.4 (31.2) |
| Maximum Reverse Speed, mph (kph) |
9.6 (15.4) |
| Transmission Type |
Gear |
| Gearbox Type |
6F/2R |
| Number of Forward Speed |
6 |
| Number of Reverse Speed |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
17.1 (27.5) |
| Maximum Reverse Speed, mph (kph) |
8.6 (13.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size |
7.50x18 |
| Rear Tire Size |
15.5x38 |
| Hydraulic System Type |
Open center |
| Implement Pump Type, gpm (Lpm) |
Gear |
| Implement Pump Flow, gpm (Lpm) |
20.0 (75.7) |
| Hydraulic Pressure, Bar (psi) |
190 (2750) |
| Hydraulic Fluid Capacity, gal (L) |
19.0 (72.0) |
| Number of Standard Remote Valves |
1 |
| 3-Point Hitch Category |
2/3 |
| Standard Lift Capacity at lift pin, lb (kg) |
5200 (2360) |
| Wheelbase, in (mm) |
102.4 (2600) |
| Length, in (mm) |
161.4 (4090) |
| Height, in (mm) |
79 (2000) |
| Overall Width, in (mm) |
106.3 (2700) |
| Ground Clearance, in (mm) |
17 (430) |
| Turning Radius, in (mm) |
163 (4150) |
| Operating Weight (Diesel), lb (kg) |
11435 (5190) |
| Operating Weight (Gasoline), lb (kg) |
9255 (4200) |
| Ballasted Weight, lb (kg) |
14920 (6770) |
