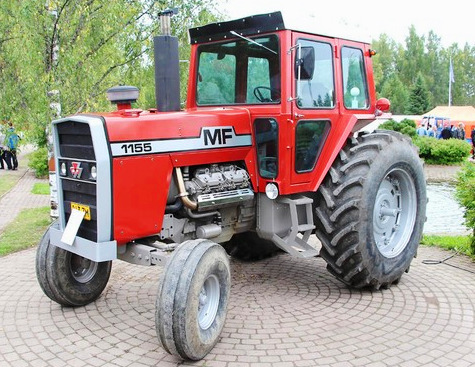

Massey Ferguson 1155 Tractor
The
Massey Ferguson 1155 row-crop tractor was manufactured between 1973 and 1978.
The Massey Ferguson 1155 tractor is powered by Perkins AV8.540 4-stroke
8-cylinder direct injection liquid-cooled diesel engine. A 540 cubic inches
(8.9L) engine has a cylinder bore of 4.25" (108 mm), piston stroke of 4.75" (121
mm), and rated power of 155 hp (114.8 kW).
The MF 1155 is fitted with 2 types of transmission. Type 1: Multi Power
partial powershift transmission with 12 forward and 4 reverse gears.
Type 2: sliding gear transmission with 8 forward and 2 reverse gears.
The maximum travel speed (forward and reverse): 16.7 mph (26.9 km/h) /
8.3 mph (13.4 km/h). The closed center hydraulic system includes a
piston pump with a rated capacity of 20 gal/min (75.7 l/min). The
hydraulic system pressure is 145 bar (2100 psi).
The Massey Ferguson 1155 was equipped with a hydrostatic power steering,
hydraulic disc brakes, 14Lx16 front tires, and 18.4x38 rear tires. The
wheelbase is 109" (2760 mm). Compatible attachments for the tractor:
Massey Ferguson 245 loader with maximum lift height of 144" (3650 mm)
and lift capacity of 4500 lbs (2040 kg), or Massey Ferguson 245 high
lift loader with maximum lift height of 180" (4570 mm) and lift capacity
of 4000 lbs (1815 kg).
| Engine Model |
Perkins AV8.540 |
| Engine Type |
4-Stroke 8-cylinder liquid-cooled diesel |
| Number of Cylinders |
8 |
| Displacement, cu.in (L) |
540 (8.90) |
| Engine Bore, in (mm) |
4.25 (108.0) |
| Engine Stroke, in (mm) |
4.75 (121.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
155.0 (114.8) |
| Rated Engine Speed, rpm |
2200 |
| Idle Speed, rpm |
825 |
| Maximum Speed, rpm |
2325-2450 |
| Compression |
17.5:1 |
| Firing Order |
1-8-7-5-4-3-6-2 |
| Fuel System Type |
Direct injection |
| Air Cleaner |
Dry |
| Fuel Tank Capacity, gal (L) |
55.0 (208.2) |
| Oil Capacity, qts (L) |
20.0 (18.9) |
| Coolant Capacity, qts (L) |
50.0 (47.3) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
140.0 (104.4) |
| PTO Clutch |
Dry disc |
| PTO Speeds, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/2000 |
| PTO / Engine Speed, rpm |
1000/2000 |
| Transmission Type |
Multi-Power |
| Gearbox Type |
12F/4R, 2-speed powershift |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
4 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
14 (356) |
| Oil Capacity, qts (L) |
88.3 (83.3) |
| Maximum Forward Speed, mph (kph) |
16.7 (26.9) |
| Maximum Reverse Speed, mph (kph) |
6.4 (10.3) |
| Transmission Type |
Sliding gear |
| Gearbox Type |
8F/2R |
| Number of Forward Speeds |
8 |
| Number of Reverse Speeds |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
16.7 (26.9) |
| Maximum Reverse Speed, mph (kph) |
8.3 (13.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic disc |
| Front Tire |
14L-16 |
| Rear Tire |
18.4-38 |
| Front Tread, in (mm) |
60-88 (1520-2230) |
| Rear Tread, in (mm) |
60-120 (1520-3040) |
| Hydraulic System Type |
Closed center |
| Hydraulic Pump Flow, gpm (Lpm) |
20.0 (75.7) |
| Hydraulic Pressure, Bar (psi) |
145 (2100) |
| Hydraulic Capacity, gal (L) |
22.0 (83.3) |
| Number of Standard Remote Valves |
1 |
| 3-Point Hitch Category |
2/3 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
5350 (2430) |
| Wheelbase, in (mm) |
109 (2760) |
| Overall Length, in (mm) |
180 (4570) |
| Height (Steering Wheel), in (mm) |
79 (2000) |
| Height (Cab), in (mm) |
113.5 (2880) |
| Overall Width, in (mm) |
114.2 (2900) |
| Ground Clearance, in (mm) |
26.3 (660) |
| Shipping Weight (w/Cab), lb (kg) |
13000 (5900) |
| Shipping Weight (w/o Cab), lb (kg) |
11750 (5330) |
| Operating Weight (w/Cab), lb (kg) |
14905 (6760) |
| Ballasted Weight (w/o Cab), lb (kg) |
20460 (9280) |
