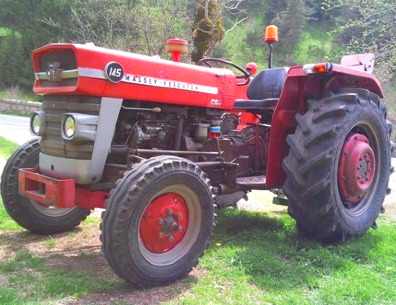

Massey Ferguson 145 Tractor
The
Massey Ferguson 145 is a two-wheel drive farm tractor. This model was
manufactured from 1965 to 1970. The Massey Ferguson 145 tractor is equipped with
a 152 cu.in (2.5L) Perkins AD 3.152 4-stroke 3-cylinder direct injection
naturally aspirated liquid-cooled diesel engine.
The engine has a cylinder bore of 3.6" (91 mm), piston stroke of 5" (127
mm), rated power of 42 hp (31.5 kW), and max torque of 167 Nm (123
lb-ft) at 1300 rpm. The transmission includes a dry clutch and
mechanical gearbox with 6 forward and 2 reverse gears.
Max. travel speed (forward and reverse): 15.1 mph (24.3 km/h) / 7.3 mph
(11.8 km/h). The open center hydraulic system used a gear pump with a
rated capacity of 5.4 gpm (20.4 lpm). The hydraulic pressure is 193 bar
(2800 psi). The Massey Ferguson 145 was equipped with a mechanical
steering system, disc type brakes, 6.00x16 or 6.00x19 front tires, and
11.0x28 or 12.0x32 rear tires. The wheel base is 72 in (1820 mm).
Engine Model |
Perkins AD 3.152 |
Engine Type |
4 Stroke, 3-cylinder liquid-cooled diesel |
Number of Cylinders |
3 |
Displacement, cu in (L) |
152 (2.5) |
Engine Bore, in (mm) |
3.60 (91.0) |
Engine Stroke, in (mm) |
5.00 (127.0) |
Aspiration |
Natural |
Rated Engine Power, hp (kW) |
42.0 (31.5) |
Maximum Engine Power, hp (kW) |
46.0 (34.5) |
Rated Engine Speed, rpm |
2250 |
Maximum Torque, Nm (ft-lbs) |
167 (123) |
Torque Speed, rpm |
1300 |
Compression |
18.5:1 |
Firing Order |
1-2-3 |
Fuel System Type |
Direct injection |
Fuel filter |
Paper element |
Oil Pump Type |
Rotor type |
Oil Filter Type |
Full flow |
Fuel Tank Capacity, gal (L) |
12.7 (48.1) |
Oil Capacity, qts (L) |
6.3 (6.0) |
Coolant Capacity, qts (L) |
10.5 (10.2) |
Electrical System Rating, Volts |
12 |
Battery Rating, A/h |
95 |
PTO Operational Type |
Transmission |
PTO Horsepower, hp (kW) |
38.0 (28.3) |
PTO Speed, rpm |
540 |
PTO / Engine Speed, rpm |
540/1700 |
Transmission Type |
Gear |
Gearbox Type |
6F/2R |
Number of Forward Gears |
6 |
Number of Reverse Gears |
2 |
Clutch Type |
Mechanical dry disc |
Oil Capacity, gal (L) |
8.0 (30.3) |
Maximum Speed (Forward), mph (kph) |
15.1 (24.3) |
Maximum Speed (Reverse), mph (kph) |
7.3 (11.8) |
Drive Wheels |
2WD 4x2 |
Steering Configuration |
Front Steer |
Steering System |
Mechanical |
Service Brake |
Disc type |
Front Tire Size (Std) |
6.0x16 |
Rear Tire Size (Std) |
11.0x28 |
Front Tire Size (Opt) |
6.0x19 |
Rear Tire Size (Opt) |
12.0x32 |
Hydraulic System Type |
Open Center |
Hydraulic Pump Type |
Gear |
Implement Pump Flow, gpm (Lpm) |
5.4 (20.4) |
Hydraulic Pressure, Bar (psi) |
193 (2800) |
3-Point Hitch Category |
2/1 |
Standard Lift Capacity at lift pin, lb (kg) |
2725 (1235) |
Wheelbase, in (mm) |
72 (1820) |
Length, in (mm) |
118.1 (2990) |
Height, in (mm) |
54 (1370) |
Overall Width, in (mm) |
68.5 (1730) |
Ground Clearance, in (mm) |
12.6 (320) |
Weight, lb (kg) |
3640 (1650) |
