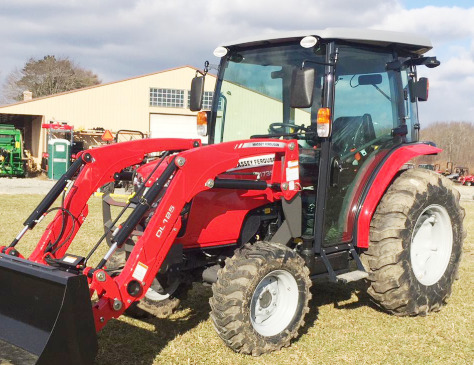

Massey Ferguson 1735M Tractor
The
Massey Ferguson 1735M is a 1700M series compact utility tractor. This model was
manufactured from 2018. The Massey Ferguson 1735M tractor is powered by 101.4
cu.in (1.7 L) Shibaura N4LDI-T four stroke three cylinder direct injection
turbocharged diesel engine with a rated output power of 36.2 Hp (27 kW) at 2600
rev/min.
The Massey Ferguson 1735M is fitted with 2 transmission options: power
shuttle transmission with 12 forward and 12 reverse gears, or 3-range
hydrostatic transmission with infinite forward and reverse gears. Max.
travel speed (forward and reverse): 17.5 mph (28 km/h). The open center
hydraulic system includes a gear pump with fluid flow rate of 12.1 gpm
(45.6 lpm). The main relief pressure is 160 bar (2320 psi).
The Massey Ferguson 1735M is equipped with a power steering system,
internal wet disc brakes, 27x8.50-15 (Turf) or 10-16.5 (Industrial)
front tires, and 41x14.00-20 (Turf) or 17.5L-24 (Industrial) rear tires.
The wheel base is 69.7" (1770 mm). The tractor is compatible with the
following attachments: a 72" mid-mount 3-blade mower deck with cutting
height of 1.5-5.0" (37-125 mm), Massey Ferguson DL125 loader lift
capacity to max height of 1840 lbs (835 kg), and Massey Ferguson CB75
backhoe with maximum digging depth of 92" (2330 mm).
| Engine Model |
Shibaura N4LDI-T |
| Engine Type |
Four stroke direct injection, three cylinder diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
101.4 (1.7) |
| Engine Bore, in (mm) |
3.307 (84.0) |
| Engine Stroke, in (mm) |
3.937 (100.0) |
| Rated Engine Power, hp (kW) |
36.2 (27.0) |
| Rated Engine Speed, rpm |
2600 |
| Aspiration |
Turbocharged |
| Fuel System |
Common rail direct injection |
| Fuel Tank Capacity, gal (L) |
10.6 (40) |
| Cooling System |
Liquid |
| Air Cleaner |
Dry Type |
| Emissions |
Tier 4 Final |
| Emission control |
Diesel Oxidation Catalyst (DOC) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Electric Starter |
| PTO Operational Type |
Independent |
| PTO Horsepower (Gear Transmission), hp (kW) |
27.5 (20.5) |
| PTO Horsepower (Hydro Transmission), hp (kW) |
26.4 (19.7) |
| Rear PTO Clutch |
Electro-hydraulic |
| Rear PTO Shaft |
6-Spline, 13/8 inch |
| Rear PTO Speeds, rpm |
540 |
| Mid PTO |
Optional |
| Mid PTO Speeds, rpm |
2000 |
| Transmission Type |
Power shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Single stage dry type |
| Shuttle Lever |
Electronic lever, left side of steering wheel |
| Maximum Forward Speed, mph (kph) |
16.8 (26.9) |
| Maximum Reverse Speed, mph (kph) |
16.8 (26.9) |
| Transmission Type |
Hydrostatic (Servo-HST) |
| Number of Forward Speeds |
Infinite (3-range) |
| Number of Reverse Speeds |
Infinite (3-range) |
| Maximum Forward Speed, mph (kph) |
17.5 (28.0) |
| Maximum Reverse Speed, mph (kph) |
17.5 (28.0) |
| Drive Wheels |
4x4 MFWD 4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Service Brake |
Internal wet disc |
| Front Tire Size (Std) |
8.00-16 |
| Rear Tire Size (Std) |
12.4x24 |
| Front Tire Size (Opt) |
8.00x16 |
| Rear Tire Size (Opt) |
13.6x24 |
| Front Tire Size (Lawn/Turf) |
27x8.50-15 |
| Rear Tire Size (Lawn/Turf) |
41x14.00-20 |
| Front Tire Size (Industrial) |
10-16.5 |
| Rear Tire Size (Industrial) |
17.5L-24 |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.1 (45.6) |
| Hydraulic Pressure, Bar (psi) |
160 (2320) |
| Hydraulic Capacity, gpm (Lpm) |
12.6 (47.8) |
| Number of Standard Remote Valves (Rear) |
3 |
| 3-Point Hitch Category |
1 with extendable ball ends |
| Draft Sensing or Lift Control |
Position and draft control |
| Loader joystick |
Standard equipment, integrated into right hand console |
| Rear Arms |
Telescopic draft link ends |
| Standard Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
2535 (1150) |
| Wheelbase, in (mm) |
69.7 (1770) |
| Length, in (mm) |
122.0 (3100) |
| Height (ROPS), in (mm) |
99.2 (2520) |
| Height (Cab), in (mm) |
91.3 (2320) |
| Overall Width, in (mm) |
64.2 (1630) |
| Ground Clearance, in (mm) |
15.4 (390) |
| Weight (ROPS, Gear transmission), lb (kg) |
3373 (1530) |
| Weight (ROPS, Hydro transmission), lb (kg) |
3406 (1545) |
| Weight (Cab, Gear transmission), lb (kg) |
3759 (1705) |
| Weight (Cab, Hydro transmission), lb (kg) |
3781 (1715) |
| Loader Model |
MF DL125 |
| Tool Carrier |
Pin-on (SS Quick Attach opt.) |
| Leveling Type |
Non Self Leveling (NSL) |
| Lift Cylinder Diameter, in (mm) |
2 x 2,4 (60) |
| Bucket Cylinder Diameter, in (mm) |
2 x 2,4 (60) |
| Maximum Lift Height-Pivot Pin, in (mm) |
106 (2700) |
| Maximum Dump Angle, degrees |
48 |
| Maximum Rollback Angle, degrees |
45 |
| Digging Depth, in (mm) |
3,5 (90) |
| Lift Capacity to Maximum Height-Pivot Pin, lb (kg) |
1660 (750) |
| Breakout Force-Pivot Pin, lbs (kg) |
3000 (1360) |
| Raising Time (Ground Level to Full Height), sec |
2,6 |
| Lowering Time (Full Height to Ground Level), sec |
2,0 |
| Bucket Dumping Time (Full Rollback to Full Dump), sec |
2,3 |
| Bucket Rollback Time (Full Dump to Full Rollback), sec |
1,8 |
| Backhoe Model |
MF CB75 |
| Digging Depth, in (mm) |
92 (2300) |
| Maximum Reach, in (mm) |
119.7 (3000) |
| Boom Float |
Yes |
| Loading Height, in (mm) |
70 (1800) |
| Stabilizer Spread, in (mm) |
99.2 (2520) |
| Transport Height, in (mm) |
76.4 (1900) |
| Transport Width, in (mm) |
48.4 (1230) |
| Swing Arc, degrees |
170 |
| Bucket Rotation, degrees |
174 |
| Bucket Digging Force, lb (kg) |
3,148 (1,428) |
| Boom Digging Force, lb (kg) |
2,057 (933) |
