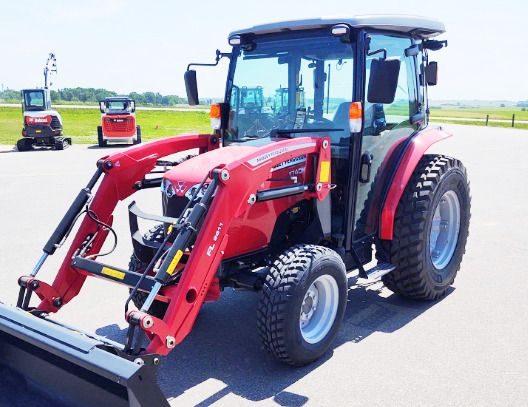

Massey Ferguson 1740M Tractor
The
Massey Ferguson 1740M is a 4-wheel drive (4x4) compact utility tractor. This
model was manufactured from 2018. The Massey Ferguson 1740M tractor is powered
by Shibaura N4LDI-T 4-cycle direct 3-cylinder direct injection turbocharged
diesel engine. A 101.4 cubic inches (1.7L) engine has a cylinder bore of 3.31"
(84 mm), piston stroke of 3.94" (100 mm), and rated power of 40 hp (29.8 kW).
The Massey Ferguson 1740M is fitted with two types of transmission. 1st
type: power shuttle transmission with 12 forward and 12 reverse gears.
2nd type: 3-range hydrostatic transmission with infinite forward and
reverse gears. The maximum travel speed (forward/reverse): 17.5 mph (28
km/h). The open center hydraulic system used a gear pump with fluid flow
rate of 12.1 gal/min (45.6 l/min). The hydraulic system pressure is 160
bar (2320 psi).
The tractor is equipped with a power steering system, internal wet disc
brakes, 27x8.50-15 (Turf) or 8.00x16 (AG) front tires, and 41x14.00-20
(Turf) or 12.4x24 (AG) rear tires. The wheel base is 69.7" (1770 mm).
Compatible attachments for the Massey Ferguson 1740M tractor: a 72"
mid-mount 3-blade mower deck with cutting height of 1.5-5.0" (37-125
mm), MF DL125 loader lift capacity to max height of 1840 lbs (835 kg),
or MF CB75 backhoe with maximum digging depth of 92" (2330 mm).
| Engine Model |
Shibaura N4LDI-T |
| Engine Type |
4 stroke direct injection three cylinder diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
101.4 (1.7) |
| Engine Bore, in (mm) |
3.31 (84.0) |
| Engine Stroke, in (mm) |
3.94 (100.0) |
| Rated Engine Power, hp (kW) |
40.0 (29.8) |
| Rated Engine Speed, rpm |
2600 |
| Aspiration |
Turbocharged |
| Fuel System |
Common rail direct injection |
| Fuel Tank Capacity, gal (L) |
10.6 (40) |
| Cooling System |
Liquid |
| Air Cleaner |
Dry Type |
| Emissions |
Tier 4 Final |
| Emission control |
Diesel Oxidation Catalyst (DOC) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Electric Starter |
| PTO Operational Type |
Independent |
| PTO Horsepower (Gear Transmission), hp (kW) |
31.2 (23.3) |
| PTO Horsepower (Hydro Transmission), hp (kW) |
29.1 (21.7) |
| Rear PTO Clutch |
Electro-hydraulic |
| Rear PTO Shaft |
6-Spline, 13/8 inch |
| Rear PTO Speeds, rpm |
540 |
| Mid PTO |
Optional |
| Mid PTO Speeds, rpm |
2000 |
| Transmission Type |
Power shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Single stage dry type |
| Shuttle Lever |
Electronic lever, left side of steering wheel |
| Maximum Forward Speed, mph (kph) |
16.8 (26.9) |
| Maximum Reverse Speed, mph (kph) |
16.8 (26.9) |
| Transmission Type |
Hydrostatic (Servo-HST) |
| Number of Forward Speeds |
Infinite (3-range) |
| Number of Reverse Speeds |
Infinite (3-range) |
| Maximum Forward Speed, mph (kph) |
17.5 (28.0) |
| Maximum Reverse Speed, mph (kph) |
17.5 (28.0) |
| Drive Wheels |
4x4 4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Service Brake |
Internal wet disc |
| Front Tire Size (Std) |
8.00x16 |
| Rear Tire Size (Std) |
12.4x24 |
| Front Tire Size (Opt) |
8.00x16 |
| Rear Tire Size (Opt) |
13.6x24 |
| Front Tire Size (Lawn/Turf) |
27x8.50-15 |
| Rear Tire Size (Lawn/Turf) |
41x14.00-20 |
| Front Tire Size (Industrial) |
25x8.5-14 |
| Rear Tire Size (Industrial) |
15x19.5 |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.1 (45.6) |
| Hydraulic Pressure, Bar (psi) |
160 (2320) |
| Hydraulic Capacity, gpm (Lpm) |
12.6 (47.8) |
| Number of Standard Remote Valves (Rear) |
3 |
| 3-Point Hitch Category |
1 with extendable ball ends |
| Draft Sensing or Lift Control |
Position and draft control |
| Loader joystick |
Standard equipment, integrated into right hand console |
| Rear Arms |
Telescopic draft link ends |
| Standard Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
2535 (1150) |
| Wheelbase, in (mm) |
69.7 (1770) |
| Length, in (mm) |
122.0 (3100) |
| Height (ROPS), in (mm) |
99.2 (2520) |
| Height (Cab), in (mm) |
91.3 (2320) |
| Overall Width, in (mm) |
64.2 (1630) |
| Ground Clearance, in (mm) |
15.4 (390) |
| Weight (ROPS, Gear transmission), lb (kg) |
3370 (1530) |
| Weight (ROPS, Hydro transmission), lb (kg) |
3410 (1545) |
| Weight (Cab, Gear transmission), lb (kg) |
3760 (1705) |
| Weight (Cab, Hydro transmission), lb (kg) |
3780 (1715) |
| Loader Model |
MF DL125 |
| Tool Carrier |
Pin-on (SS Quick Attach opt.) |
| Leveling Type |
Non Self Leveling (NSL) |
| Lift Cylinder Diameter, in (mm) |
2 x 2,4 (60) |
| Bucket Cylinder Diameter, in (mm) |
2 x 2,4 (60) |
| Maximum Lift Height-Pivot Pin, in (mm) |
106 (2700) |
| Maximum Dump Angle, degrees |
48 |
| Maximum Rollback Angle, degrees |
45 |
| Digging Depth, in (mm) |
3,5 (90) |
| Lift Capacity to Maximum Height, Pivot Pin, lb (kg) |
1660 (750) |
| Breakout Force-Pivot Pin, lbs (kg) |
3000 (1360) |
| Raising Time (Ground Level to Full Height), sec |
2,6 |
| Lowering Time (Full Height to Ground Level), sec |
2,0 |
| Bucket Dumping Time (Full Rollback to Full Dump), sec |
2,3 |
| Bucket Rollback Time (Full Dump to Full Rollback), sec |
1,8 |
| Backhoe Model |
MF CB75 |
| Digging Depth, in (mm) |
92 (2300) |
| Maximum Reach, in (mm) |
119.7 (3000) |
| Boom Float |
Standard |
| Loading Height, in (mm) |
70 (1800) |
| Stabilizer Spread, in (mm) |
99.2 (2520) |
| Transport Height, in (mm) |
76.4 (1900) |
| Transport Width, in (mm) |
48.4 (1230) |
| Swing Arc, degrees |
170 |
| Bucket Rotation, degrees |
174 |
| Bucket Digging Force, lb (kg) |
3,148 (1,428) |
| Boom Digging Force, lb (kg) |
2,057 (933) |
