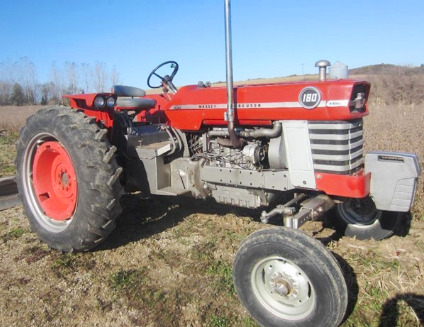

Massey Ferguson 180 Tractor
The
Massey Ferguson 180 row-crop tractor was manufactured from 1964 to 1975. The
Massey Ferguson 180 tractor is powered by Perkins A4.236 4-cylinder naturally
aspirated liquid-cooled diesel engine with a rated output power of 71 hp (52.6
kW), or Perkins AG4.236 vertical 4-cylinder liquid-cooled gasoline engine with a
rated power of 70 hp (51.8 kW).
The Massey Ferguson 180 is fitted with two types of transmission. Type
1: Multi-Power partial powershift transmission with 12 forward and 4
reverse gears. Type 2: Dual Range transmission with 6 forward and 2
reverse gears. The maximum forward speed - 19.1 mph (30.8 kph), maximum
reverse speed - 9.5 mph (15.2 kph). The open center hydraulic system
used a gear pump with a flow of 4.8 gpm (18 lpm).
The MF 180 was equipped with a mechanical steering with power assist,
differential mechanical disc brakes, 7.50x15 front tires, and 15.5x38
rear tires. The wheelbase is 93" (2360 mm). The tractor is compatible
with a Massey Ferguson 245 loader with lift capacity to full height of
4500 lbs (2040 kg) and breakout force of 5200 lbs (2358 kg).
| Engine Model |
Perkins A4.236 |
| Engine Type |
4-Stroke, liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
236 (3.90) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
71.0 (52.6) |
| Rated Engine Speed, rpm |
2000 |
| Idle Speed, rpm |
750-2200 |
| Compression Ratio |
16:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Injection Pump |
| Air Cleaner |
Paper element |
| Fuel Tank Capacity, gal (L) |
29.0 (110.0) |
| Oil Capacity, qts (L) |
9.5 (9.0) |
| Coolant Capacity, qts (L) |
13.5 (12.8) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Generator |
| Generator Rating, Amps |
25 |
| Engine Model |
Perkins AG4.236 |
| Engine Type |
4-Stroke, vertical liquid-cooled gasoline |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
236 (3.90) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Rated Engine Power, hp (kW) |
70.0 (51.8) |
| Rated Engine Speed, rpm |
2000 |
| Idle Speed, rpm |
850-2100 |
| Compression Ratio |
7.0:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Carburetor |
| Fuel Tank Capacity, gal (L) |
29.0 (110.0) |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Coolant Capacity, qts (L) |
10.5 (9.9) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
64.0 (47.7) |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/1684 |
| Transmission Type |
Multi-Power |
| Gearbox Type |
12F/4R, partial powershift |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
32.0 (30.3) |
| Maximum Forward Speed, mph (kph) |
19.1 (30.8) |
| Maximum Reverse Speed, mph (kph) |
9.5 (15.2) |
| Transmission Type |
Dual Range |
| Gearbox Type |
6F/2R, gear |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
32.0 (30.3) |
| Maximum Forward Speed, mph (kph) |
19.1 (30.8) |
| Maximum Reverse Speed, mph (kph) |
7.1 (11.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Mechanical with power assist |
| Brakes Type |
Differential mechanical disc |
| Front Tire Size |
7.50x15 |
| Rear Tire Size |
15.5x38 |
| Front Tread, in (mm) |
52-80 (1315-2030) |
| Rear Tread, in (mm) |
56-90 (1415-2275) |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
4.8 (18.0) |
| Hydraulic Pressure, Bar (psi) |
103 (1500) |
| Hydraulic Fluid Capacity, gal (L) |
7.9 (30.0) |
| Number of Standard Remote Valves |
1 |
| 3-Point Hitch Category |
2 |
| Wheelbase, in (mm) |
93 (2360) |
| Length, in (mm) |
126 (3200) |
| Height (Steering Wheel), in (mm) |
81.8 (2070) |
| Overall Width, in (mm) |
73 (1850) |
| Ground Clearance, in (mm) |
21 (530) |
| Turning Radius (without Brake), in (mm) |
145 (3360) |
| Weight (Diesel), lb (kg) |
6755 (3065) |
| Weight (Gas), lb (kg) |
6685 (3030) |
| Weight (Ballasted), lb (kg) |
8665 (3930) |
