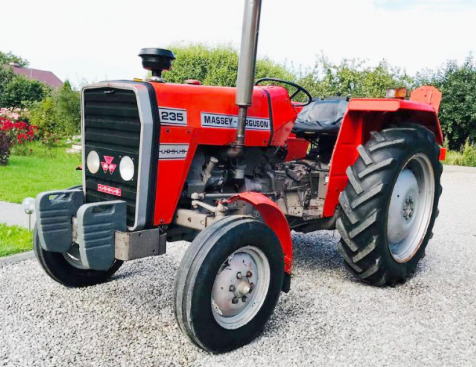

Massey Ferguson 235 Tractor
The
Massey Ferguson 235 is a two-wheel drive utility tractor from 200 series. This
model was manufactured between 1975 and 1976. The tractor was designed in 2
versions: orchard (low profile) and vineyard (narrow low profile).
The Massey Ferguson 235 is powered by 152 cu.in (2.5L) Perkins AD3.152
4-Stroke 3-cylinder direct injection naturally aspirated diesel engine
with a rated power of 45.5 hp (33.9 kW), or 145 cu.in (2.4L) Continental
Z145 4-Stroke 4-cylinder liquid-cooled gasoline engine with a rated
power of 46 hp (34.1 kW).
The Massey Ferguson 235 is fitted with 3 types of transmission. 1st
type: mechanical transmission with 6 forward and 2 reverse gears. 2nd
type: mechanical transmission with 8 forward and 2 reverse gears. 3rd
type: Multi Power partial powershift transmission with 12 forward and 4
reverse gears. The maximum travel speed (forward and reverse): 22.3 mph
(35.9 km/h) / 11.3 mph (18.1 km/h).
The open center hydraulic system used a gear pump with fluid flow rate
of 10 gpm (38 lpm). The hydraulic pressure is 159 bar (2300 psi). The
Massey Ferguson 235 was equipped with a manual or power steering,
differential mechanical expanding shoe brakes, 6.00x16 or 7.50x16 front
tires, and 12.4x28 or 13.6x28 rear tires. The wheelbase is 74.5 in (1890
mm).
| Engine Model |
Perkins AD3.152 |
| Engine Type |
4-Stroke 3-cylinder direct injection diesel |
| Number of Cylinders |
3 |
| Displacement, cu.in (L) |
152 (2.50) |
| Engine Bore, in (mm) |
3.60 (91.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
45.5 (33.9) |
| Rated Engine Speed, rpm |
2000 |
| Compression |
16.5:1 |
| Firing Order |
1-2-3 |
| Fuel System Type |
Direct injection |
| Fuel Injection Pump |
CAV DPA |
| Direction of Rotation |
Clockwise from drive end |
| Fuel Filter |
Paper element |
| Oil Pump Type |
Rotor type |
| Air Cleaner |
Dual dry element |
| Fuel Tank Capacity, gal (L) |
14.0 (53.0) |
| Coolant Capacity, qts (L) |
10.5 (9.9) |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| Alternator Rating, Amps |
37 |
| Engine Model |
Continental Z145 |
| Engine Type |
4 Stroke 4-cylinder liquid-cooled gasoline |
| Number of cylinders |
4 |
| Displacement, cu.in (L) |
145 (2.40) |
| Engine Bore, in (mm) |
3.38 (86.0) |
| Engine Stroke, in (mm) |
4.07 (103.0) |
| Maximum Power, kw (hp) |
46.0 (34.1) |
| Rated Speed, rpm |
2000 |
| Compression ratio |
7.4:1 |
| Firing order |
1-3-4-2 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Zenith 13795 / Zenith OE3435 |
| Fuel Delivery |
Fixed Jet Carburetor |
| Ignition Timing |
8 deg BTDC |
| Ignition Point Gap, in (mm) |
0.017-0.022 (0.45-0.55) |
| Ignition Coil |
Delco-Remy |
| Spark Plug Gap, in (mm) |
0.025 (0.63) |
| Spark Plug |
Champion RD-16 / AC-85S |
| Fuel Tank Capacity, gal (L) |
14.0 (53.0) |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Coolant Capacity, qts (L) |
10.5 (9.9) |
| Electrical System Rating, Volts |
12, Negative Ground |
| PTO Operational Type (Std) |
Live (2-stage clutch) |
| PTO Operational Type (Opt) |
Independent |
| PTO Horsepower, hp (kW) |
35.0 (26.1) |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/1700 |
| Transmission Type |
Gear |
| Gearbox Type |
6F/2R |
| Number of Forward Speed |
6 |
| Number of Reverse Speed |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
17.1 (27.5) |
| Maximum Reverse Speed, mph (kph) |
8.6 (13.8) |
| Transmission Type |
Gear |
| Gearbox Type |
8F/2R |
| Number of Forward Speed |
8 |
| Number of Reverse Speed |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
20.8 (33.4) |
| Maximum Reverse Speed, mph (kph) |
8.6 (13.8) |
| Transmission Type |
Multi Power |
| Gearbox Type |
12F/4R, Partial powershift |
| Number of Forward Speed |
12 |
| Number of Reverse Speed |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
22.3 (35.9) |
| Maximum Reverse Speed, mph (kph) |
11.3 (18.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System (Std) |
Manual |
| Steering System (Opt) |
Power |
| Service Brake |
Differential mechanical expanding shoe |
| Front Tire Size (Std) |
6.00-16 |
| Rear Tire Size (Std) |
12.4-28 |
| Front Tire Size (Opt) |
7.50-16 |
| Rear Tire Size (Opt) |
13.6-28 |
| Front Track Width, in (mm) |
48-76 (1210-1930) |
| Rear Track Width, in (mm) |
52-72 (1320-1820) |
| Hydraulic System Type |
Open center |
| Implement Pump Type, gpm (Lpm) |
Gear |
| Implement Pump Flow, gpm (Lpm) |
10.0 (38.0) |
| Steering Pump Flow, gpm (Lpm) |
5.0 (19.0) |
| Hydraulic Pressure, Bar (psi) |
159 (2300) |
| Hydraulic Fluid Capacity, gal (L) |
8.0 (30.3) |
| Number of Standard Remote Valves |
0/2 |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position and draft control |
| Wheelbase, in (mm) |
74.5 (1890) |
| Length, in (mm) |
116.1 (2940) |
| Height (Steering Wheel), in (mm) |
58.1 (1470) |
| Overall Width, in (mm) |
64.6 (1640) |
| Shipping Weight (Gasoline), lb (kg) |
3830 (1740) |
| Shipping Weight (Diesel), lb (kg) |
4080 (1850) |
| Operating Weight (Gasoline), lb (kg) |
4130 (1875) |
| Operating Weight (Diesel), lb (kg) |
4135 (1880) |
