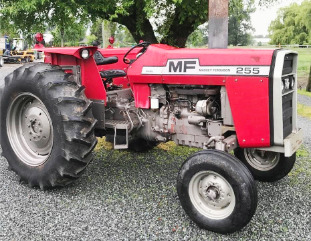

Massey Ferguson 255 Tractor
The
Massey Ferguson 255 is a 200-series two-wheel drive row crop tractor. This model
was manufactured from 1975 to 1981. The Massey Ferguson 255 tractor is powered
by Perkins AD4.203 4-cylinder liquid-cooled diesel engine with a maximum power
of 45 hp (33.5 kW), or Perkins AG4.212 4-cylinder gasoline engine with a maximum
power of 44 hp (32.6 kW).
The Massey Ferguson 255 is fitted with 2 types of transmission. 1st
type: 8-speed gear transmission. 2nd type: Multi power partial power
shift transmission with 12 forward and 4 reverse gears.
The maximum travel speed (forward/reverse) is 18.6 mph (30 km/h) and 9.4
mph (15.1 km/h). The open center hydraulic system includes a gear pump
with a rated fluid flow of 10 gpm (38 lpm). The hydraulic system
pressure is 2300 psi (159 bar). The row crop tractors are equipped with
5.50x16 front tyres and 14.9x38 rear tyres. The 6.00x16 front tyres and
16.9x24 rear tyres fit standard models. The wheel base is 82" (2080 mm).
The tractor is compatible with Massey Ferguson 236 front end loader. The
loader has a lift capacity to full height of 2500 lbs (1135 kg).
| Engine Model |
Perkins AD4.203 |
| Engine Type |
4-Stroke, 4-cylinder diesel |
| Number of Cylinders |
4 |
| Displacement, cu.in (L) |
203 (3.30) |
| Engine Bore, in (mm) |
3.60 (91.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
45.0 (33.3) |
| Rated Engine Speed, rpm |
2000 |
| Compression |
18.5:1 |
| Firing Order |
1-3-4-2 |
| Fuel Tank Capacity, gal (L) |
18.5 (70.0) |
| Coolant Capacity, qts (L) |
11.0 (10.4) |
| Oil Capacity, qts (L) |
8.5 (8.0) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| Alternator Rating, Amps |
37 |
| Engine Model |
Perkins AG4.212 |
| Engine Type |
4 Stroke, 4-cylinder liquid-cooled gasoline |
| Number of cylinders |
4 |
| Displacement, cu.in (L) |
212 (3.50) |
| Engine Bore, in (mm) |
3.90 (98.0) |
| Engine Stroke, in (mm) |
4.50 (114.0) |
| Maximum Power, kw (hp) |
44.0 (32.6) |
| Rated Speed, rpm |
2000 |
| Compression ratio |
7.0:1 |
| Firing order |
1-3-4-2 |
| Fuel System Type |
Carburetor |
| Fuel Tank Capacity, gal (L) |
18.5 (70.0) |
| Coolant Capacity, qts (L) |
11.0 (10.4) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
50.0 (37.3) |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/1700 |
| Transmission Type |
8F/2R, Gear |
| Number of Forward Speed |
8 |
| Number of Reverse Speed |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
32.1 (30.3) |
| Maximum Forward Speed, mph (kph) |
18.6 (30.0) |
| Maximum Reverse Speed, mph (kph) |
7.7 (12.4) |
| Transmission Type |
Multi Power |
| Gearbox Type |
12F/4R, Partial powershift |
| Number of Forward Speed |
12 |
| Number of Reverse Speed |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
18.5 (29.8) |
| Maximum Reverse Speed, mph (kph) |
9.4 (15.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Brakes Type |
Differential dry disc |
| Front Tire Size (Std) |
6.0-16 |
| Rear Tire Size (Std) |
16.9-24 |
| Front Tire Size (Row Crop) |
5.5-16 |
| Rear Tire Size (Row Crop) |
14.9-38 |
| Front Tire Size (Low Profile) |
7.5-10 |
| Rear Tire Size (Low Profile) |
14.9-24 |
| Front Track Width (Std), in (mm) |
48-72 (1210-1820) |
| Rear Track Width (Std), in (mm) |
56-90 (1420-2280) |
| Front Track Width (Row Crop), in (mm) |
52-76 (1320-1930) |
| Rear Track Width (Low Profile), in (mm) |
55-87 (1390-2200) |
| Hydraulic System Type |
Open center |
| Implement Pump Type, gpm (Lpm) |
Gear |
| Implement Pump Flow, gpm (Lpm) |
10.0 (38.0) |
| Steering Pump Flow, gpm (Lpm) |
5.0 (19.0) |
| Hydraulic Pressure, Bar (psi) |
159 (2300) |
| Hydraulic Fluid Capacity, gal (L) |
8.0 (30.3) |
| Number of Standard Remote Valves |
0/2 |
| 3-Point Hitch Category |
1/2 |
| Standard Lift Capacity at lift pin, lb (kg) |
3800 (1720) |
| Wheelbase, in (mm) |
82 (2080) |
| Length, in (mm) |
126.5 (3210) |
| Height (Hood), in (mm) |
63.1 (1600) |
| Ground Clearance (Std), in (mm) |
16 (400) |
| Ground Clearance (Row Crop), in (mm) |
19.6 (490) |
| Ground Clearance (Low Profile), in (mm) |
10.4 (260) |
| Shipping Weight (Gasoline), lb (kg) |
5600 (2540) |
| Shipping Weight (Diesel), lb (kg) |
5850 (2655) |
| Operating Weight (Gasoline), lb (kg) |
6140 (2785) |
| Operating Weight (Diesel), lb (kg) |
6415 (2910) |
