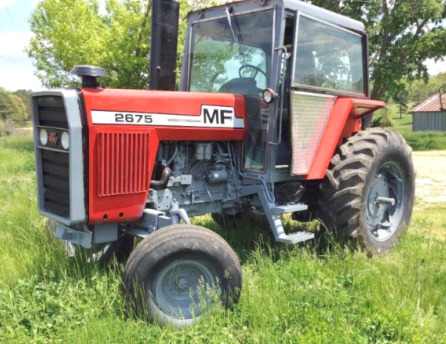

Massey Ferguson 2675 Tractor
The
Massey Ferguson 2675 is a 2WD (4x2) row-crop tractor. This model was
manufactured from 1978 to 1983. The Massey Ferguson 2675 driveline system
components: a 354 cu.in (5.8L) Perkins A6.354.4 6-cylinder direct injection
naturally aspirated liquid-cooled diesel engine and 24x6 Multi-Power 3-speed
powershift transmission, or 8x6 mechanical shuttle transmission.
The engine has a cylinder bore of 3.88" (98 mm), piston stroke of 5.00"
(127 mm), and rated power of 111 hp (82.2 kW). Max forward speed - 20
mph (32.2 km/h), max. reverse speed - 9.6 mph (15.4 km/h). The open
center hydraulic system has a pump with a rated capacity of 16.5 gpm
(62.5 lpm) using high pressure or 6.4 gpm (24.2 lpm) using low pressure.
The hydraulic fluid capacity is 30 gal (113.6 L).
The MF 2675 was equipped with a hydrostatic power steering, hydraulic
wet disc brakes, 10.00x16 or 11.00x16 front tires, and 16.9x38 or
18.4x38 rear tires. The wheelbase is 105.4" (2670 mm). The tractor is
compatible with a Massey Ferguson 246 loader with lift capacity to full
height of 4500 lbs (2040 kg) and breakout force of 5000 lbs (2268 kg).
| Engine Model |
Perkins A6.354.4 |
| Engine Type |
4-Stroke, 6-cylinder, liquid-cooled diesel |
| Number of Cylinders |
6 |
| Displacement, cu.in (L) |
354 (5.80) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
111.0 (82.2) |
| Rated Engine Speed, rpm |
2500 |
| Compression |
16:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System Type |
Direct injection |
| Air Cleaner |
Dual dry element |
| Oil Pump Type |
Rotor type |
| Fuel Tank Capacity, gal (L) |
87.0 (330.0) |
| Coolant Capacity, qts (L) |
31.0 (29.3) |
| Oil Capacity, qts (L) |
18.0 (17.0) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
100.0 (74.6) |
| PTO Clutch |
Hydraulic |
| PTO Speeds, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/1990 |
| PTO / Engine Speed, rpm |
1000/2090 |
| Transmission Type |
Multi-Power |
| Gearbox Type |
24F/6R, 3-speed powershift |
| Number of Forward Speeds |
24 |
| Number of Reverse Speeds |
6 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
14 (356) |
| Oil Capacity, qts (L) |
120.0 (113.6) |
| Maximum Forward Speed, mph (kph) |
20.0 (32.2) |
| Maximum Reverse Speed, mph (kph) |
9.6 (15.4) |
| Transmission Type |
Mechanical shuttle |
| Gearbox Type |
8F/6R |
| Number of Forward Speeds |
8 |
| Number of Reverse Speeds |
6 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
18.1 (29.1) |
| Maximum Reverse Speed, mph (kph) |
8.3 (13.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (Std) |
10.0x16 |
| Rear Tire Size (Std) |
16.9x38 |
| Front Tire Size (Opt) |
11.0x16 |
| Rear Tire Size (Opt) |
18.4x38 |
| Front Tread, in (mm) |
60-90 (1520-2280) |
| Rear Tread, in (mm) |
60-121 (1520-3070) |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Flow (High Pressure), gpm (Lpm) |
16.5 (62.5) |
| Hydraulic Pump Flow (Low Pressure), gpm (Lpm) |
6.4 (24.2) |
| Hydraulic Capacity, gal (L) |
30.0 (113.6) |
| Number of Standard Remote Valves |
2/3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position control and lower-link draft sensing |
| Wheelbase, in (mm) |
105.4 (2670) |
| Overall Length, in (mm) |
177 (4490) |
| Height (Cab), in (mm) |
113 (2870) |
| Overall Width, in (mm) |
94.1 (2390) |
| Ground Clearance, in (mm) |
15.6 (390) |
| Weight (Shipping), lb (kg) |
11200 (5080) |
| Weight (Operating), lb (kg) |
12430 (5640) |
| Weight (Ballasted), lb (kg) |
14495 (6575) |
