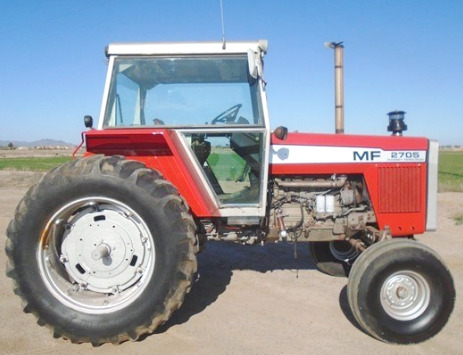

Massey Ferguson 2705 Tractor
The
Massey Ferguson 2705 is a row-crop tractor from 2000 series. This model was
manufactured between 1978 and 1983. The Massey Ferguson 2705 tractor is powered
by 354 cu.in (5.8L) Perkins AT6.354.4 6-cylinder direct injection turbocharged
diesel engine with a rated power of 133 hp (98.5 kW) at 2500 rpm.
The Massey Ferguson 2705 is fitted with two transmission options:
Multi-Power 3-speed powershift transmission with 24 forward and 6
reverse gears, or mechanical shuttle transmission with 8 forward and 6
reverse gears. Max forward speed - 20 mph 32.2 kph), maximum reverse
speed - 9.6 mph (15.4 kph).
The open center hydraulic system has a pump with a rated capacity of
16.5 gpm (62.5 lpm) using high pressure or 6.4 gpm (24.2 lpm) using low
pressure. The hydraulic fluid capacity is 30 gal (113.6 L). The MF 2705
was equipped with a hydrostatic power steering, differential hydraulic
wet disc brakes, 10.00x16 or 11.00x16 front tires, and 16.9x38 or
20.8x38 rear tires. The wheelbase is 105.4" (2670 mm). The tractor is
compatible with a Massey Ferguson 246 loader with lift capacity to
maximum height of 4500 lbs (2040 kg) and breakout force of 5000 lbs
(2268 kg).
| Engine Model |
Perkins AT6.354.4 |
| Engine Type |
4-Stroke, 6-cylinder, turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu.in (L) |
354 (5.80) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
133.0 (98.5) |
| Rated Engine Speed, rpm |
2500 |
| Compression |
16:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System Type |
Direct injection |
| Air Cleaner |
Dual dry element |
| Oil Pump Type |
Rotor type |
| Fuel Tank Capacity, gal (L) |
87.0 (330.0) |
| Coolant Capacity, qts (L) |
31.0 (29.3) |
| Oil Capacity, qts (L) |
18.0 (17.0) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
120.0 (89.5) |
| PTO Clutch |
Hydraulic |
| PTO Speeds, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/1990 |
| PTO / Engine Speed, rpm |
1000/2090 |
| Transmission Type |
Multi-Power |
| Gearbox Type |
24F/6R, 3-speed powershift |
| Number of Forward Speeds |
24 |
| Number of Reverse Speeds |
6 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
14 (356) |
| Oil Capacity, qts (L) |
120.0 (113.6) |
| Maximum Forward Speed, mph (kph) |
20.0 (32.2) |
| Maximum Reverse Speed, mph (kph) |
9.6 (15.4) |
| Transmission Type |
Mechanical shuttle |
| Gearbox Type |
8F/6R |
| Number of Forward Speeds |
8 |
| Number of Reverse Speeds |
6 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
18.1 (29.1) |
| Maximum Reverse Speed, mph (kph) |
8.3 (13.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Differential hydraulic wet disc |
| Front Tire Size (Std) |
10.0x16 |
| Rear Tire Size (Std) |
16.9x38 |
| Front Tire Size (Opt) |
11.0x16 |
| Rear Tire Size (Opt) |
20.8x38 |
| Front Tread, in (mm) |
60-90 (1520-2280) |
| Rear Tread, in (mm) |
60-121 (1520-3070) |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Flow (High Pressure), gpm (Lpm) |
16.5 (62.5) |
| Hydraulic Pump Flow (Low Pressure), gpm (Lpm) |
6.4 (24.2) |
| Hydraulic Capacity, gal (L) |
30.0 (113.6) |
| Number of Standard Remote Valves |
2/3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position control and lower-link draft sensing |
| Wheelbase, in (mm) |
105.4 (2670) |
| Overall Length, in (mm) |
177 (4490) |
| Height (Cab), in (mm) |
113 (2870) |
| Overall Width, in (mm) |
94.1 (2390) |
| Ground Clearance, in (mm) |
15.6 (390) |
| Weight (Shipping), lb (kg) |
11200 (5080) |
| Weight (Operating), lb (kg) |
12595 (5715) |
| Weight (Ballasted), lb (kg) |
17490 (7930) |
