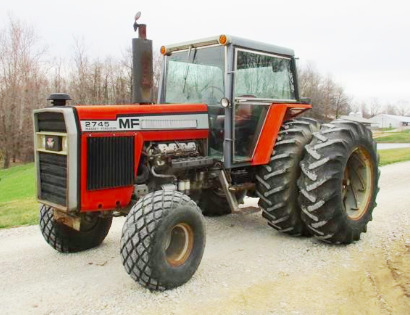

Massey Ferguson 2745 Tractor

The Massey Ferguson 2745 is a 2WD row crop tractor from 2000 series. This model was manufactured between 1978 and 1983. The Massey Ferguson 2745 tractor is powered by 539.5 cu.in (8.9 L) Perkins V8.540 4-stroke 8-cylinder direct injection liquid-cooled naturally aspirated diesel engine with a rated power of 155 hp (114.8 kW) at 2600 rev/min.

The Massey Ferguson 2745 is fitted with 2 types of transmission. Type 1: Multi Power 3-speed powershift transmission with 24 forward and 6 reverse gears. Type 2: Mechanical shuttle transmission with 8 forward and 6 reverse gears. Max. travel speed (forward/reverse): 21.3 mph (34.3 km/h) and 10.2 mph (16.4 km/h). The open center hydraulic system used a gear pump with a rated capacity of 17.1 gpm (64.7 lpm) using high pressure and 6.6 gpm (25 lpm) using low pressure.

The hydraulic system capacity is 30 gal (113.6 l). The MF 2745 was equipped with a hydrostatic power steering system, hydraulic wet disc brakes, 11.0x16 front tires, and 20.8x38 rear tires. The wheelbase is 110 in (2790 mm). The tractor is compatible with a Massey Ferguson 246 loader with maximum lift height of 156" (3960 mm) and lift capacity of 4500 lbs (2040 kg).

Engine
Engine Model Perkins V8.540
Engine Type 4-Stroke 8-cylinder liquid-cooled diesel
Number of Cylinders 8
Displacement, cu.in (L) 539.5 (8.90)
Engine Bore, in (mm) 4.25 (108.0)
Engine Stroke, in (mm) 4.75 (121.0)
Aspiration Natural
Rated Engine Power, hp (kW) 155.0 (114.8)
Rated Engine Speed, rpm 2600
Compression 18.4:1
Firing Order 1-8-7-5-4-3-6-2
Fuel System Type Direct injection
Air Cleaner Dual dry element
Fuel Tank Capacity, gal (L) 87.0 (330.0)
Oil Capacity, qts (L) 20.0 (18.9)
Coolant Capacity, qts (L) 50.0 (47.3)
Electrical System Rating, Volts 12
Charging system Alternator

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 140.0 (104.4)
PTO Clutch Hydraulic
PTO Speeds, rpm 540/1000
PTO / Engine Speed, rpm 540/1990
PTO / Engine Speed, rpm 1000/2090

Standard Transmission
Transmission Type Multi-Power
Gearbox Type 24F/6R, 3-speed powershift
Number of Forward Speeds 24
Number of Reverse Speeds 6
Clutch Type Dry disc
Clutch Disc Diameter, in (mm) 14 (356)
Oil Capacity, qts (L) 120.0 (113.6)
Maximum Forward Speed, mph (kph) 21.3 (34.3)
Maximum Reverse Speed, mph (kph) 10.2 (16.4)

Optional Transmission
Transmission Type Mechanical shuttle
Gearbox Type 8F/6R
Number of Forward Speeds 8
Number of Reverse Speeds 6
Clutch Type Dry disc
Maximum Forward Speed, mph (kph) 16.5 (26.5)
Maximum Reverse Speed, mph (kph) 9.3 (15.0)


Wheels and Tires
Drive Wheels 2WD 4x2
Steering Configuration Front Steer
Steering System Hydrostatic power
Brakes Type Hydraulic wet disc
Front Tire Size 11.0x16
Rear Tire Size 20.8x38
Front Tread, in (mm) 60-90 (1520-2280)
Rear Tread, in (mm) 62-129 (1570-3270)

Hydraulic System
Hydraulic System Type Open center
Hydraulic Pump Flow (High Pressure), gpm (Lpm) 17.1 (64.7)
Hydraulic Pump Flow (Low Pressure), gpm (Lpm) 6.6 (25.0)
Steering Pump Flow, gpm (Lpm) 5.7 (21.6)
Hydraulic Capacity, gal (L) 30.0 (113.6)
Number of Standard Remote Valves 2/3
3-Point Hitch Category 2
Draft Sensing or Lift Control Position control and lower-link draft sensing

Dimensions and Weight
Wheelbase, in (mm) 110 (2790)
Overall Length, in (mm) 181.6 (4610)
Height (Cab), in (mm) 115 (2910)
Overall Width, in (mm) 91.6 (2320)
Ground Clearance, in (mm) 15.6 (390)
Weight (Shipping), lb (kg) 12500 (5670)
Weight (Operating), lb (kg) 15190 (6890)
Weight (Ballasted), lb (kg) 19490 (8840)
