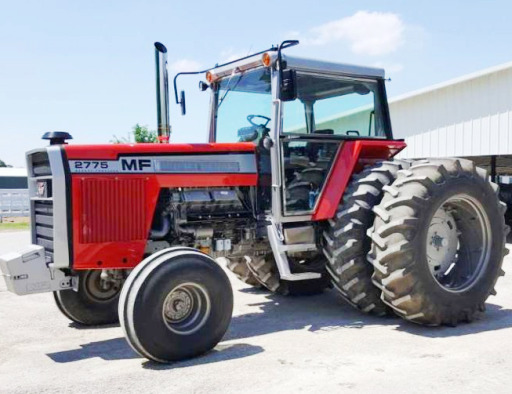

Massey Ferguson 2775 Tractor
The
Massey Ferguson 2775 is a two-wheel drive row-crop tractor from 2000 series.
This model was manufactured between 1978 and 1983. The Massey Ferguson 2775
driveline includes a 640 cu.in (10.5L) Perkins AV8.640 8-cylinder direct
injection liquid-cooled diesel engine and Multi-Power 3-speed powershift
transmission with 24 forward and 6 reverse gears, or mechanical shuttle
transmission with 8 forward and 6 reverse gears.
The engine has a cylinder bore of 4.63" (118 mm), piston stroke of 4.75"
(121 mm), and rated power of 177 hp (131.1 kW). Max travel speed
(forward and reverse): 21.3 mph (34.3 km/h) / 10.2 mph (16.4 km/h). The
open center hydraulic system includes a gear pump with a rated capacity
of 17.1 gal/min (64.7 l/min) using high pressure or 6.6 gal/min (25
l/min) using low pressure. The hydraulic fluid capacity is 30 gal (113.6
L).
The MF 2775 was equipped with a hydrostatic power steering, hydraulic
wet disc brakes, 11.00x16 front tires, and 20.8x38 rear tires. The
wheelbase is 110" (2790 mm). The tractor is compatible with a
Massey
Ferguson 246 loader with lift capacity to maximum height of 4500 lbs
(2040 kg) and breakout force of 5000 lbs (2268 kg).
| Engine Model |
Perkins AV8.640 |
| Engine Type |
8-cylinder, liquid-cooled diesel |
| Number of Cylinders |
8 |
| Displacement, cu.in (L) |
640 (10.5) |
| Engine Bore, in (mm) |
4.63 (118.0) |
| Engine Stroke, in (mm) |
4.75 (121.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
177.0 (131.1) |
| Rated Engine Speed, rpm |
2600 |
| Idle Speed, rpm |
900 |
| Maximum Speed, rpm |
2525-2650 |
| Compression |
15:1 |
| Firing Order |
1-8-7-5-4-3-6-2 |
| Fuel System Type |
Direct injection |
| Air Cleaner |
Dual dry element |
| Fuel Tank Capacity, gal (L) |
87.0 (330.0) |
| Oil Capacity, qts (L) |
24.0 (22.7) |
| Coolant Capacity, qts (L) |
55.0 (52.1) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
160.0 (119.3) |
| PTO Clutch |
Hydraulic |
| PTO Speeds, rpm |
1000 |
| PTO / Engine Speed, rpm |
1000/2090 |
| Transmission Type |
Multi-Power |
| Gearbox Type |
24F/6R, 3-speed powershift |
| Number of Forward Speeds |
24 |
| Number of Reverse Speeds |
6 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
14 (356) |
| Oil Capacity, qts (L) |
120.0 (113.6) |
| Maximum Forward Speed, mph (kph) |
21.3 (34.3) |
| Maximum Reverse Speed, mph (kph) |
10.2 (16.4) |
| Transmission Type |
Mechanical shuttle |
| Gearbox Type |
8F/6R |
| Number of Forward Speeds |
8 |
| Number of Reverse Speeds |
6 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
16.5 (26.5) |
| Maximum Reverse Speed, mph (kph) |
9.3 (15.0) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size |
11.0x16 |
| Rear Tire Size |
20.8x38 |
| Front Tread, in (mm) |
60-90 (1520-2280) |
| Rear Tread, in (mm) |
62-165 (1570-4190) |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Flow (High Pressure), gpm (Lpm) |
17.1 (64.7) |
| Hydraulic Pump Flow (Low Pressure), gpm (Lpm) |
6.6 (25.0) |
| Steering Pump Flow, gpm (Lpm) |
5.7 (21.6) |
| Hydraulic Capacity, gal (L) |
30.0 (113.6) |
| Number of Standard Remote Valves |
2/3 |
| 3-Point Hitch Category |
3/2 |
| Draft Sensing or Lift Control |
Position control and lower-link draft sensing |
| Wheelbase, in (mm) |
110 (2790) |
| Overall Length, in (mm) |
190 (4820) |
| Height (Cab), in (mm) |
115 (2910) |
| Overall Width, in (mm) |
91.6 (2320) |
| Ground Clearance, in (mm) |
15.7 (390) |
| Weight (Shipping), lb (kg) |
13300 (6030) |
| Weight (Operating), lb (kg) |
16230 (7360) |
| Weight (Ballasted), lb (kg) |
20440 (9270) |
