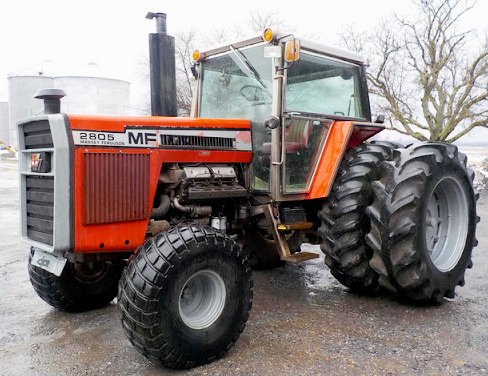

Massey Ferguson 2805 Tractor
The
Massey Ferguson 2805 row-crop tractor was manufactured from 1978 to 1983. The
Massey Ferguson 2805 tractor is powered by Perkins ATV8.640 8-cylinder direct
injection turbocharged diesel engine. A 640 cubic inches (10.5L) engine has a
cylinder bore of 4.63" (118 mm), piston stroke of 4.75" (121 mm), and rated
power of 211 hp (156.3 kW).
The Massey Ferguson 2805 is fitted with two transmission options: Multi
Power 3-speed powershift transmission with 24 forward and 6 reverse
gears, or mechanical shuttle transmission with 8 forward and 6 reverse
gears. The maximum forward speed - 20.4 mph (32.8 kph), maximum reverse
speed - 9.8 mph (15.8 kph). The open center hydraulic system includes a
gear pump with a rated capacity of 16.5 gpm (62.5 lpm) using high
pressure and 6.4 gpm (24.2 lpm) using low pressure.
The hydraulic system capacity is 30 gal (113.6 l). The Massey Ferguson
2805 was equipped with 11.0x16 front tires and 20.8x38 rear tires. The
wheelbase is 110" (2790 mm). Compatible attachments for the tractor:
Massey Ferguson 246 loader with maximum lift height of 156" (3960 mm)
and lift capacity of 4500 lbs (2040 kg).
| Engine Model |
Perkins ATV8.640 |
| Engine Type |
8-cylinder turbocharged diesel |
| Number of Cylinders |
8 |
| Displacement, cu.in (L) |
640 (10.5) |
| Engine Bore, in (mm) |
4.63 (118.0) |
| Engine Stroke, in (mm) |
4.75 (121.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
211.0 (156.3) |
| Rated Engine Speed, rpm |
2500 |
| Compression |
16:1 |
| Firing Order |
1-8-7-5-4-3-6-2 |
| Fuel System Type |
Direct injection |
| Air Cleaner |
Dual dry element |
| Fuel Tank Capacity, gal (L) |
87.0 (330.0) |
| Oil Capacity, qts (L) |
24.0 (22.7) |
| Coolant Capacity, qts (L) |
55.0 (52.1) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
190.0 (141.7) |
| PTO Clutch |
Hydraulic |
| PTO Speeds, rpm |
1000 |
| PTO / Engine Speed, rpm |
1000/2090 |
| Transmission Type |
Multi-Power |
| Gearbox Type |
24F/6R, 3-speed powershift |
| Number of Forward Speeds |
24 |
| Number of Reverse Speeds |
6 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
14 (356) |
| Oil Capacity, qts (L) |
120.0 (113.6) |
| Maximum Forward Speed, mph (kph) |
20.4 (32.8) |
| Maximum Reverse Speed, mph (kph) |
9.8 (15.8) |
| Transmission Type |
Mechanical shuttle |
| Gearbox Type |
8F/6R |
| Number of Forward Speeds |
8 |
| Number of Reverse Speeds |
6 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
15.8 (25.4) |
| Maximum Reverse Speed, mph (kph) |
8.9 (14.3) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size |
11.0x16 |
| Rear Tire Size |
20.8x38 |
| Front Tread, in (mm) |
60-90 (1520-2280) |
| Rear Tread, in (mm) |
62-165 (1570-4190) |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Flow (High Pressure), gpm (Lpm) |
16.5 (62.5) |
| Hydraulic Pump Flow (Low Pressure), gpm (Lpm) |
6.4 (24.2) |
| Steering Pump Flow, gpm (Lpm) |
5.5 (20.8) |
| Hydraulic Capacity, gal (L) |
30.0 (113.6) |
| Number of Standard Remote Valves |
2/3 |
| 3-Point Hitch Category |
3/2 |
| Draft Sensing or Lift Control |
Position control and lower-link draft sensing |
| Wheelbase, in (mm) |
110 (2790) |
| Overall Length, in (mm) |
190 (4820) |
| Height (Cab), in (mm) |
115 (2910) |
| Overall Width, in (mm) |
91.6 (2320) |
| Ground Clearance, in (mm) |
15.7 (390) |
| Weight (Shipping), lb (kg) |
13500 (6125) |
| Weight (Operating), lb (kg) |
16035 (7275) |
| Weight (Ballasted), lb (kg) |
21430 (9720) |
