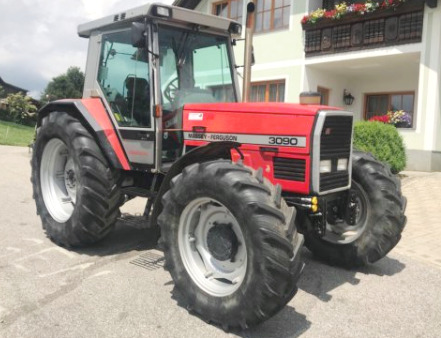

Massey Ferguson 3090 Tractor
The
Massey Ferguson 3090 is a 2-wheel drive or 4-wheel drive farm tractor. This
model was manufactured between 1986 and 1990. The Massey Ferguson 3090 tractor
is powered by 353.6 cubic inches (5.8L) Perkins A6.354.4 six-cylinder direct
injection naturally aspirated water cooled diesel engine with a rated power of
107 hp (79.8 kW) and 378 Nm (279 lb-ft) of max torque at 1400 rev/min.
The MF 3090 is fitted with 2 transmission options: SpeedShift
transmission with 32 forward and 32 reverse gears, or SpeedShift creeper
transmission with 48 forward and 48 reverse gears. Max forward speed -
18.5 mph (29.7 kph), max reverse speed - 17.3 mph (27.8 kph). The open
center hydraulic system used a gear pump with a flow rate of 13.2
gallons per minute (50 liters per minute). The hydraulic pressure is 180
bar (2610 psi).
The 2WD models are equipped with 11.00-16 front tyres and 18.4-38 rear
tyres. The 13.6-28 front tyres and 18.4-38 rear tyres fit 4WD tractors.
The wheelbase is 106 in (2690 mm). The tractor is compatible with a
Massey Ferguson 848 loader with lift capacity to max height of 3500 lbs
(1587 kg) and breakout force of 4800 lbs (2177 kg).
| Engine Model |
Perkins A6.354.4 |
| Engine Type |
4-Stroke, 6-cylinder, water cooled diesel |
| Number of Cylinders |
6 |
| Displacement, cu.in (L) |
353.6 (5.80) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
107.0 (79.8) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
378 (279) |
| Torque Speed, rpm |
1400 |
| Compression |
16:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System Type |
Direct injection |
| Lubrication |
Gear pump |
| Fuel injection pump |
Rotary with mechanical governor |
| Air Cleaner |
Dual dry element |
| Valves clearance (Intake), in (mm) |
0.008 (0.20) |
| Valves clearance (Exhaust), in (mm) |
0.018 (0.45) |
| Fuel Tank Capacity, gal (L) |
56.3 (213.1) |
| Oil Capacity, qts (L) |
17.5 (16.5) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
95.0 (70.8) |
| PTO Clutch |
Dry disc |
| PTO Speeds, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/1980 |
| PTO / Engine Speed, rpm |
1000/2000 |
| Transmission Type |
SpeedShift |
| Gearbox Type |
32F/32R |
| Number of Forward Speeds |
32 |
| Number of Reverse Speeds |
32 |
| Clutch Type |
Dry disc |
| Oil Capacity, gal (L) |
63.8 (60.2) |
| Maximum Forward Speed, mph (kph) |
18.5 (29.7) |
| Maximum Reverse Speed, mph (kph) |
17.3 (27.8) |
| Transmission Type |
Creeper |
| Gearbox Type |
48F/48R |
| Number of Forward Speeds |
48 |
| Number of Reverse Speeds |
48 |
| Clutch Type |
Dry disc |
| Oil Capacity, gal (L) |
63.8 (60.2) |
| Maximum Forward Speed, mph (kph) |
18.5 (29.7) |
| Maximum Reverse Speed, mph (kph) |
17.3 (27.8) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Brakes Type |
Hydraulic wet disc |
| Front Tire (2WD) |
11.0-16 |
| Rear Tire (2WD) |
18.4-38 |
| Front Tire (4WD) |
13.6-28 |
| Rear Tire (4WD) |
18.4-38 |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Flow, gpm (Lpm) |
13.2 (50.0) |
| Hydraulic Pressure, Bar (psi) |
180 (2610) |
| Hydraulic Capacity, gal (L) |
15.9 (60.2) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity at lift pin, lb (kg) |
6920 (3140) |
| Wheelbase, in (mm) |
106 (2690) |
| Overall Length (2WD), in (mm) |
170 (4310) |
| Overall Length (4WD), in (mm) |
177 (4490) |
| Height, in (mm) |
110 (2790) |
| Turning Radius, in (mm) |
185 (4700) |
| Weight (2WD), lb (kg) |
9720 (4420) |
| Weight (4WD), lb (kg) |
10400 (4715) |
