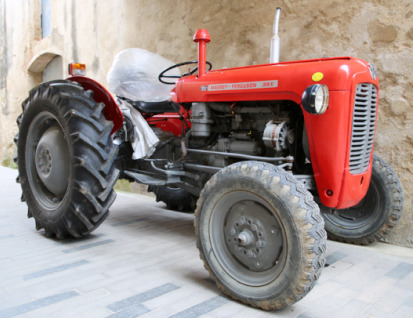

Massey Ferguson 35X Tractor
The
Massey Ferguson 35X is a 2-wheel drive utility tractor. This model was
manufactured from 1962 to 1964.
The Massey Ferguson 35X driveline system components: a 152.7 cu.in
(2.5L) Perkins A3.152 3-cylinder naturally aspirated liquid-cooled
diesel engine, manual transmission with 6 forward and 2 reverse gears,
or Multi-Power partial powershift transmission with 12 forward and 4
reverse gears.
The engine has a cylinder bore of 3.60" (91 mm), piston stroke of 5"
(127 mm), rated power of 44.5 Hp (33.2 kW), and maximum torque of 165 Nm
(120 lb-ft) at 1250 rev/min. Max travel speed (forward/reverse): 19.1
mph (30.8 km/h) and 9.5 mph (15.3 km/h). The open center hydraulic
system used a gear pump with rated fluid flow of 3.7 gpm (14 lpm). The
hydraulic pressure is 162 bar (2350 psi). The Massey Ferguson 35X was
equipped with a manual steering system, mechanical drum brakes, 6.00x16
front tires, and 12.4x28 rear tires. The wheelbase is 72 in (1820 mm).
| Engine Model |
Perkins A3.152 |
| Engine Type |
4-Stroke, liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
152.7 (2.50) |
| Engine Bore, in (mm) |
3.60 (91.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
44.5 (33.2) |
| Rated Engine Speed, rpm |
2250 |
| Idle Speed, rpm |
675-2200 |
| Maximum Torque, Nm (ft-lbs) |
165 (120) |
| Torque Speed, rpm |
1250 |
| Compression Ratio |
17.4:1 |
| Firing Order |
1-2-3 |
| Fuel System |
Injection Pump |
| Valve Clearance, in (mm) |
0.012 (0.31) |
| Fuel Tank Capacity, gal (L) |
10.2 (38.6) |
| Oil Capacity, qts (L) |
6.5 (6.2) |
| Coolant Capacity, qts (L) |
10.5 (9.9) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
37.0 (27.6) |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/1500 |
| Transmission Type |
Gear |
| Gearbox Type |
6F/2R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
32.0 (30.3) |
| Maximum Forward Speed, mph (kph) |
14.6 (23.5) |
| Maximum Reverse Speed, mph (kph) |
7.1 (11.4) |
| Transmission Type |
Multi-Power |
| Gearbox Type |
12F/4R, partial power shift |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
32.0 (30.3) |
| Maximum Forward Speed, mph (kph) |
19.1 (30.8) |
| Maximum Reverse Speed, mph (kph) |
9.5 (15.3) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical drum |
| Front Tire Size |
6.00x16 |
| Rear Tire Size |
12.4x28 |
| Front Tread, in (mm) |
48-80 (1210-2030) |
| Rear Tread, in (mm) |
48-76 (1210-1930) |
| Hydraulic System Type |
Open Center |
| Implement Pump Flow, gpm (Lpm) |
3.7 (14.0) |
| Hydraulic Pressure, Bar (psi) |
162 (2350) |
| Hydraulic Fluid Capacity, gal (L) |
8.0 (30.3) |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity at lift pin, lb (kg) |
2600 (1180) |
| Wheelbase, in (mm) |
72 (1820) |
| Length, in (mm) |
115 (2920) |
| Height, in (mm) |
54 (1370) |
| Overall Width, in (mm) |
64 (1620) |
| Ground Clearance, in (mm) |
20.5 (520) |
| Weight, lb (kg) |
3265 (1480) |
