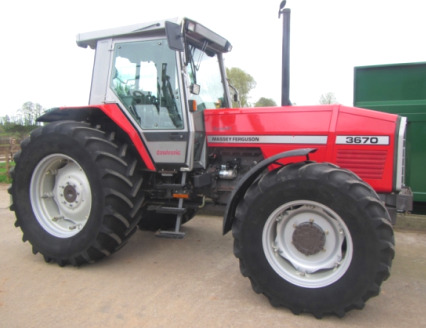

Massey Ferguson 3670 Tractor

The Massey Ferguson 3670 is a 2WD or 4WD row-crop tractor from 3600 series. This model was manufactured between 1992 and 1994. The Massey Ferguson 3670 tractor is powered by Valmet 620 DS 6-cylinder turbocharged air-cooled diesel engine.

A 403 cu.in (6.6L) engine has a cylinder bore of 4.25" (108 mm), piston stroke of 4.73" (120 mm), rated power of 170 hp (126.8 kW), and max torque of 650 Nm (481 lb-ft) at 1400 rpm. The MF 3670 is fitted with 2 transmission options: Speedshift transmission with 16 forward and 16 reverse gears, or Dynashift transmission with 32 forward and 32 reverse gears. Max forward speed - 21.8 mph (35 km/h), max reverse speed - 20.5 mph (32.8 km/h).

The open center hydraulic system used a gear pump with a rated capacity of 14.1 gpm (53.4 lpm). The main relief pressure is 180 bar (2610 psi). The Massey Ferguson 3670 is equipped with a hydrostatic power steering, wet disc brakes, 14Lx16 (4x2) or 16.9R28 (4x4) front tires, and 20.8R38 rear tires. The wheel base is 115.7" (2930 mm) for 2-wheel drive models and 115.1" (2920 mm) for 4-wheel drive models.

Engine
Engine Model Valmet 620 DS
Engine Type 6-cylinder turbocharged diesel
Number of Cylinders Six
Displacement, cu in (L) 403 (6.6)
Engine Bore, in (mm) 4.25 (108.0)
Engine Stroke, in (mm) 4.73 (120.0)
Aspiration Turbocharged
Intercooled Air cooled
Rated Engine Power, hp (kW) 170.0 (126.8)
Rated Engine Speed, rpm 2200
Maximum Torque, Nm (ft-lbs) 650 (481)
Torque Speed, rpm 1400
Cooling System Viscous fan
Air Cleaner Dry type
Fuel Tank Capacity, gal (L) 81.0 (307.0)
Oil Capacity, qts (L) 22.0 (20.8)
Coolant Capacity, qts (L) 28.4 (26.9)
Electrical System Rating, Volts 12

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 154.0 (115.0)
PTO Speeds, rpm 1000

Standard Transmission
Transmission Speedshift
Gearbox Type 16F/16R, 2-Speed powershift
Number of Forward Speeds 16
Number of Reverse Speeds 16
Clutch Type Hydraulic dry disc
Clutch Disc Diameter, in (mm) 12.3 (310)
Maximum Forward Speed, mph (kph) 21.8 (35.0)
Maximum Reverse Speed, mph (kph) 20.5 (32.8)

Optional Transmission
Transmission Dynashift
Gearbox Type 32F/32R, 4-Speed powershift
Number of Forward Speeds 32
Number of Reverse Speeds 32
Maximum Forward Speed, mph (kph) 21.8 (35.0)
Maximum Reverse Speed, mph (kph) 20.5 (32.8)


Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Hydrostatic power
Service Brake Wet disc
Front Tire Size (2WD) 14L-16
Rear Tire Size (2WD) 20.8R38
Front Tire Size (4WD) 16.9R28
Rear Tire Size (4WD) 20.8R38

Hydraulic System
Hydraulic System Capacity, gal (L) 19.8 (74.9)
Auxiliary Pump Flow, gpm (Lpm) 13.2 (50.0)
Hydraulic Pump Flow with Low Pressure, gpm (Lpm) 5.5 (20.8)
Hydraulic Pump Flow with High Pressure, gpm (Lpm) 14.1 (53.4)
Hydraulic Pressure (Low/High), Bar (psi) 17 (250) / 180 (2610)
Number of Standard Remote Valves 2 or 3
3-Point Hitch Category 2
Draft Sensing or Lift Control Position and electronic draft control
Standard Lift Capacity 24 Inches behind pin, lb (kg) 10000 (4540)
Standard Lift Capacity at lift pin, lb (kg) 17160 (7800)

Dimensions and Weight
Wheelbase (2WD), in (mm) 115.7 (2930)
Wheelbase (4WD), in (mm) 115.1 (2920)
Length (2WD), in (mm) 212.4 (5390)
Length (4WD), in (mm) 211.7 (5370)
Height, in (mm) 114.1 (2890)
Overall Width, in (mm) 94.7 (2400)
Ground Clearance, in (mm) 17.3 (430)
Turning Radius, in (mm) 232 (5900)
Weight (2WD), lb (kg) 12740 (5780)
Weight (4WD), lb (kg) 13820 (6270)
