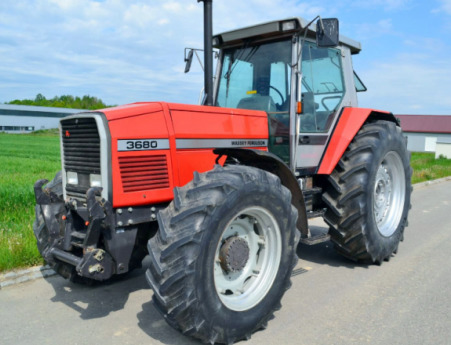

Massey Ferguson 3680 Tractor

The Massey Ferguson 3680 row crop tractor was manufactured between 1988 and 1991. The Massey Ferguson 3680 tractor is equipped with a 452 cubic inches (7.4 L) Valmet 612 DS four-stroke six-cylinder turbocharged intercooled diesel engine. The engine has a cylinder bore of 4.25" (108 mm), piston stroke of 5.28" (134 mm), rated power of 180 hp (134.2 kW), and maximum torque of 670 Nm (495 lb-ft) at 1400 rpm.

The speedshift transmission consists of a hydraulic wet clutch and two-speed powershift gearbox with 16 forward and 16 reverse gears. Max. forward speed - 21.8 mph (35 km/h), maximum reverse speed - 20.5 mph (32.8 km/h). The Massey Ferguson 3680 has an open center hydraulic system with a gear pump flow of 14.1 gal/min (53.4 l/min) and auxiliary pump flow of 13.2 gal/min (50 l/min). The hydraulic system pressure is 175 bar (2550 psi).

The 2-wheel drive models are equipped with 14Lx16 front tires and 20.8x38 rear tires. The 16.9R28 front tires and 20.8R38 rear tires are used for tractors with 4-wheel drive. The wheel base is 115.7" (2930 mm) for 4x2 (2WD) models and 115.1" (2920 mm) for 4x4 (4WD) models.

Engine
Engine Model Valmet 612 DS
Engine Type Six-cylinder turbocharged liquid-cooled diesel
Number of Cylinders 6
Displacement, cu in (L) 452 (7.4)
Engine Bore, in (mm) 4.25 (108.0)
Engine Stroke, in (mm) 5.28 (134.0)
Aspiration Turbocharged
Intercooled Air cooled
Rated Engine Power, hp (kW) 180.0 (134.2)
Rated Engine Speed, rpm 2200
Maximum Torque, Nm (ft-lbs) 670 (495)
Torque Speed, rpm 1400
Cooling System Viscous fan
Air Cleaner Dry type
Fuel Tank Capacity, gal (L) 86.0 (326.0)
Oil Capacity, qts (L) 22.0 (20.8)
Coolant Capacity, qts (L) 31.6 (29.8)
Electrical System Rating, Volts 12

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 160.0 (119.3)
PTO Speeds, rpm 1000

Transmission
Transmission Type Speedshift
Gearbox Type 16F/16R, 2-Speed powershift
Number of Forward Speeds 16
Number of Reverse Speeds 16
Clutch Type Hydraulic dry disc
Clutch Disc Diameter, in (mm) 12.3 (310)
Maximum Forward Speed, mph (kph) 21.8 (35.0)
Maximum Reverse Speed, mph (kph) 20.5 (32.8)

Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Hydrostatic power
Service Brake Wet disc
Front Tire Size (2WD) 14L-16
Rear Tire Size (2WD) 20.8R38
Front Tire Size (4WD) 16.9R28
Rear Tire Size (4WD) 20.8R38

Hydraulic System
Hydraulic System Type Open center
Hydraulic System Capacity, gal (L) 19.8 (74.9)
Auxiliary Pump Flow, gpm (Lpm) 13.2 (50.0)
Hydraulic Pump Flow with Low Pressure, gpm (Lpm) 5.5 (20.8)
Hydraulic Pump Flow with High Pressure, gpm (Lpm) 14.1 (53.4)
Hydraulic Pressure (Low/High), Bar (psi) 16 (240) / 175 (2550)
Number of Standard Remote Valves 2 or 3
3-Point Hitch Category 3
Draft Sensing or Lift Control Position and electronic draft control
Standard Lift Capacity 24-in behind pin, lb (kg) 11290 (5120)
Standard Lift Capacity at lift pin, lb (kg) 17160 (7800)

Dimensions and Weight
Wheelbase (2WD), in (mm) 115.7 (2930)
Wheelbase (4WD), in (mm) 115.1 (2920)
Length (2WD), in (mm) 202.3 (5120)
Length (4WD), in (mm) 202 (5115)
Height, in (mm) 115 (2920)
Overall Width, in (mm) 94.7 (2400)
Ground Clearance, in (mm) 17.3 (430)
Turning Radius, in (mm) 232 (5900)
Weight (2WD), lb (kg) 12790 (5800)
Weight (4WD), lb (kg) 13870 (6290)
