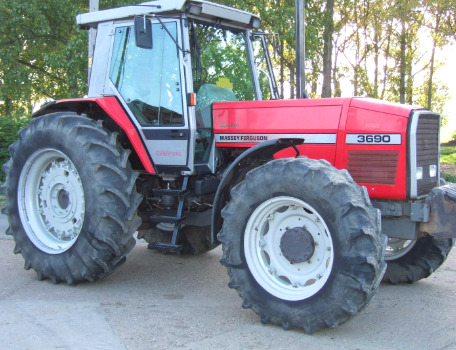

Massey Ferguson 3690 Tractor
The
Massey Ferguson 3690 row-crop tractor was manufactured from 1991 to 1994. The
Massey Ferguson 3690 tractor is powered by 451 cubic inches (7.4L) Valmet 612 DS
six-cylinder turbocharged intercooled diesel engine with a rated power of 190.4
hp (142 kW) and 730 Nm (540 lb-ft) of maximum torque at 1400 rpm.
The Massey Ferguson 3690 is fitted with 2 transmission options:
Speedshift 2-speed powershift transmission with 16 forward and 16
reverse gears, and Dynashift 4-speed powershift transmission with 32
forward and 32 reverse gears. The max travel speed (forward/reverse):
21.8 mph (35 kph) / 20.5 mph (32.8 kph).
The open center hydraulic system includes a gear pump with fluid flow
rate of 14.1 gal/min (53.4 l/min). The hydraulic pressure is 180 bar
(2610 psi). The 2-wheel drive models are equipped with 14L-16 front
tires and 18.4R42 rear tires. The 16.9R30 front tires and 20.8R42 rear
tires are used for tractors with 4-wheel drive. The wheelbase is 115.7"
(2930 mm) for models with 2WD (4x2) and 115.1" (2920 mm) for models with
4WD (4x4).
| Engine Model |
Valmet 612 DS |
| Engine Type |
Six-cylinder turbocharged liquid-cooled diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
451 (7.37) |
| Engine Bore, in (mm) |
4.25 (108.0) |
| Engine Stroke, in (mm) |
5.28 (134.0) |
| Aspiration |
Turbocharged |
| Intercooled |
Air cooled |
| Rated Engine Power, hp (kW) |
190.4 (142.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
730 (540) |
| Torque Speed, rpm |
1400 |
| Cooling System |
Viscous fan |
| Air Cleaner |
Dry type |
| Fuel Tank Capacity, gal (L) |
81.0 (306.0) |
| Oil Capacity, qts (L) |
22.0 (20.8) |
| Coolant Capacity, qts (L) |
31.6 (29.8) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
170.0 (126.8) |
| PTO Speeds, rpm |
1000 |
| Transmission |
Speedshift |
| Gearbox Type |
16F/16R, 2-Speed powershift |
| Number of Forward Speeds |
16 |
| Number of Reverse Speeds |
16 |
| Clutch Type |
Hydraulic dry disc |
| Clutch Disc Diameter, in (mm) |
12.3 (310) |
| Maximum Forward Speed, mph (kph) |
21.8 (35.0) |
| Maximum Reverse Speed, mph (kph) |
20.5 (32.8) |
| Transmission |
Dynashift |
| Gearbox Type |
32F/32R, 4-Speed powershift |
| Number of Forward Speeds |
32 |
| Number of Reverse Speeds |
32 |
| Maximum Forward Speed, mph (kph) |
21.8 (35.0) |
| Maximum Reverse Speed, mph (kph) |
20.5 (32.8) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet disc |
| Front Tire Size (2WD) |
14L-16 |
| Rear Tire Size (2WD) |
18.4R42 |
| Front Tire Size (4WD) |
16.9R30 |
| Rear Tire Size (4WD) |
20.8R42 |
| Hydraulic System Capacity, gal (L) |
19.8 (74.9) |
| Auxiliary Pump Flow, gpm (Lpm) |
13.2 (50.0) |
| Hydraulic Pump Flow with Low Pressure, gpm (Lpm) |
5.5 (20.8) |
| Hydraulic Pump Flow with High Pressure, gpm (Lpm) |
14.1 (53.4) |
| Hydraulic Pressure (Low/High), Bar (psi) |
17 (250) / 180 (2610) |
| Number of Standard Remote Valves |
2 or 3 |
| 3-Point Hitch Category |
3 |
| Draft Sensing or Lift Control |
Position and electronic draft control |
| Standard Lift Capacity 24 Inches behind pin, lb (kg) |
10000 (4536) |
| Standard Lift Capacity at lift pin, lb (kg) |
17200 (7810) |
| Wheelbase (2WD), in (mm) |
115.7 (2930) |
| Wheelbase (4WD), in (mm) |
115.1 (2920) |
| Length (2WD), in (mm) |
212.4 (5390) |
| Length (4WD), in (mm) |
211.7 (5370) |
| Height, in (mm) |
114.1 (2890) |
| Overall Width, in (mm) |
101.1 (2560) |
| Ground Clearance, in (mm) |
17.3 (430) |
| Turning Radius, in (mm) |
232 (5900) |
| Weight (2WD), lb (kg) |
13073 (5930) |
| Weight (4WD), lb (kg) |
14131 (6410) |
