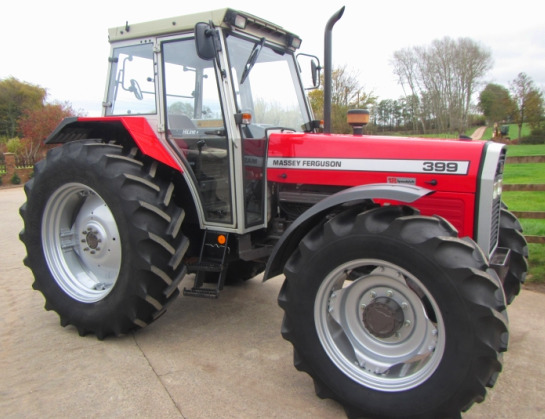

Massey Ferguson 399 Tractor
The
Massey Ferguson 399 is a 300 series utility tractor. This model was manufactured
from 1987 to 1991. The Massey Ferguson 399 tractor is equipped with a Perkins
A6.354.4 four-cycle six-cylinder direct injection liquid-cooled diesel engine.
A 354 cu.in (5.8L) engine has a cylinder bore of 3.88" (98 mm), piston
stroke of 5" (127 mm), maximum power of 122 hp (91 kW), and max torque
of 384 Nm (283 lb-ft) at 1400 rpm. The transmission includes a dry
single clutch and synchromesh gearbox with 12 forward and 4 reverse
gears.
The maximum forward speed - 18.2 mph (29.3 kph), maximum reverse speed -
9.9 mph (15.9 kph). The hydraulic system has a linkage pump with a rated
capacity of 7.2 gpm (27.3 lpm) and auxiliary pump with a rated capacity
of 9.5 gpm (36 lpm). The hydraulic pressure is 207 bar (3000 psi).
The Massey Ferguson 399 is equipped with a hydrostatic power steering,
wet disc brakes, 7.50-18 (2WD) or 14.9-24 (4WD) front tires, and 18.4-34
rear tires. The wheel base is 101.4" (2570 mm) for models with 2-wheel
drive and 103.7" (2630 mm) for models with 4-wheel drive. The tractor is
compatible with a Massey Ferguson 246 front-end loader with lift
capacity to max height of 3500 lbs (1587 kg) and breakout force of 4800
lbs (2175 kg).
| Engine Model |
Perkins A6.354.4 |
| Engine Type |
Direct injection, 4-cycle diesel |
| Number of Cylinders |
6 |
| Cylinder Arrangement |
In line |
| Displacement, cu in (L) |
354,0 (5,8) |
| Engine Bore, in (mm) |
3,88 (98,0) |
| Engine Stroke, in (mm) |
5,00 (127,0) |
| Aspiration |
Natural |
| Maximum Engine Power, hp (kW) |
122,0 (91,0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
384 (283) |
| Torque Speed, rpm |
1400 |
| Compression |
16,1:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Valve clearance (Inlet), in (mm) |
0,008 (0,20) |
| Valve clearance (Exhaus), in (mm) |
0,018 (0,46) |
| Fuel Tank Capacity, gal (L) |
33,3 (126,0) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
85,0 (63,4) |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Synchromesh |
| Gearbox Type |
12F/4R |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
4 |
| Clutch Type |
Single dry disc |
| Maximum Forward Speed, mph (kph) |
18.2 (29.3) |
| Maximum Reverse Speed, mph (kph) |
9.9 (15.9) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet disc |
| Front Tire Size (2WD) |
7.50-18 |
| Front Tire Size (4WD) |
14.9-24 |
| Rear Tire Size |
18.4-34 |
| Hydraulic Pump |
Auxiliary pump |
| Pump Flow, gpm (Lpm) |
9,5 (36,0) |
| Hydraulic Pump |
Linkage pump |
| Pump Flow, gpm (Lpm) |
7,2 (27,3) |
| Total Pump Flow, gpm (Lpm) |
16,8 (63,6) |
| Hydraulic Pressure, Bar (psi) |
207 (3000) |
| 3-Point Hitch Category |
2 |
| Control |
Position and draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
5508 (2499) |
| Wheelbase (2WD), in (mm) |
101,4 (2570) |
| Wheelbase (4WD), in (mm) |
103,7 (2630) |
| Length (2WD), in (mm) |
163,4 (4150) |
| Length (4WD), in (mm) |
169,1 (4290) |
| Height (2WD), in (mm) |
101,0 (2560) |
| Height (4WD), in (mm) |
100,5 (2550) |
| Weight (2WD), lb (kg) |
7233 (3280) |
| Weight (4WD), lb (kg) |
8030 (3640) |
