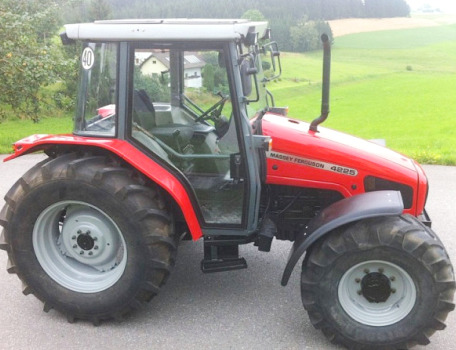

Massey Ferguson 4225 Tractor
The
Massey Ferguson 4225 utility tractor was manufactured from 1997 to 2001. The
Massey Ferguson 4225 tractor is powered by 250 cu.in (4.1L) Perkins 4.41
four-cylinder direct injection naturally aspirated liquid-cooled diesel engine
with a rated power of 65 hp (48.5 kW) and 255 Nm (188 lb-ft) of peak torque at
1200 rpm.
The MF 4225 is fitted with four transmission options: 12x12 mechanical
shuttle transmission, 18x6 speedshift transmission, 12x12 power shuttle
transmission, or 24x24 power shuttle transmission. Max forward speed -
24.7 mph (39.8 km/h), maximum reverse speed - 24.5 mph (39.2 km/h).
The open center hydraulic system used a gear pump with a flow of 10 gpm
(37.8 lpm). The hydraulic pressure is 210 bar (3050 psi). The Massey
Ferguson 4225 was equipped with a hydrostatic power steering, hydraulic
wet disc brakes, 7.50x16 (2WD) or 380/70R24 (4WD) front tires, and
16.9R30 (2WD) or 480/70R34 (4WD) rear tires. The wheelbase is 92.5
inches (2340 mm).
Engine Model |
Perkins 4.41 |
Engine Type |
Four-cylinder, direct injection, liquid-cooled diesel |
Number of Cylinders |
4 |
Displacement, cu in (L) |
250 (4.1) |
Engine Bore, in (mm) |
3.98 (101.0) |
Engine Stroke, in (mm) |
5.00 (127.0) |
Aspiration |
Natural |
Rated Engine Power, hp (kW) |
65.0 (48.5) |
Rated Engine Speed, rpm |
2200 |
Maximum Torque, Nm (ft-lbs) |
255 (188) |
Torque Speed, rpm |
1200 |
Fuel System |
Direct injection |
Air Cleaner |
Dry element |
Fuel Tank Capacity, gal (L) |
22.2 (84.0) |
Coolant Capacity, qts (L) |
18.5 (17.5) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
PTO Operational Type |
Independent |
PTO Horsepower, hp (kW) |
57.7 (43.0) |
PTO Clutch |
Hydraulic |
PTO Speeds, rpm |
540/540E, 540/1000 |
PTO / Engine Speeds, rpm |
540/1979, 540E/1421, 1000/2000 |
Transmission Type |
Mechanical shuttle |
Gearbox Type |
12F/12R |
Number of Forward Speeds |
12 |
Number of Reverse Speeds |
12 |
Clutch Type |
Dry disc |
Clutch Plate Diameter, in (mm) |
12.1 (305) |
Maximum Forward Speed, mph (kph) |
22.7 (36.5) |
Maximum Reverse Speed, mph (kph) |
22.7 (36.5) |
Transmission Type |
Speedshift |
Gearbox Type |
18F/6R |
Number of Forward Speeds |
18 |
Number of Reverse Speeds |
6 |
Clutch Type |
Dry disc |
Clutch Plate Diameter, in (mm) |
12.1 (305) |
Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
Maximum Reverse Speed, mph (kph) |
15.6 (25.1) |
Transmission Type |
Powershuttle |
Gearbox Type |
12F/12R |
Number of Forward Speeds |
12 |
Number of Reverse Speeds |
12 |
Clutch Type |
Electro-hydraulic wet disc |
Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
Maximum Reverse Speed, mph (kph) |
24.5 (39.2) |
Transmission Type |
Powershuttle |
Gearbox Type |
24F/24R |
Number of Forward Speeds |
24 |
Number of Reverse Speeds |
24 |
Clutch Type |
Electro-hydraulic wet disc |
Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
Maximum Reverse Speed, mph (kph) |
24.5 (39.2) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front Steer |
Steering System |
Hydrostatic power |
Service Brake |
Hydraulic wet disc |
Trailer Brakes |
Hydraulic |
Front Tire Size (2WD) |
7.50-16 |
Rear Tire Size (2WD) |
16.9R30 |
Front Tire Size (4WD) |
380/70R24 |
Rear Tire Size (4WD) |
480/70R34 |
Front Tread (2WD), in (mm) |
52-71.7 (1320-1820) |
Front Tread (4WD), in (mm) |
55.5-75.2 (1400-1910) |
Rear Tread, in (mm) |
56.3-83.9 (1430-2130) |
Hydraulic System Type |
Open center |
Implement Pump Flow, gpm (Lpm) |
10.0 (37.8) |
Steering Pump Flow, gpm (Lpm) |
4.5 (17.1) |
Total Flow (Std), gpm (Lpm) |
14.5 (54.9) |
Total Flow (540E PTO), gpm (Lpm) |
15.9 (60.0) |
Hydraulic Pressure, Bar (psi) |
210 (3050) |
Hydraulic System Capacity, gal (L) |
13.2 (50.0) |
Number of Standard Remote Valves |
1/4 |
3-Point Hitch Category (Std) |
1/2 |
Draft Sensing or Lift Control |
Position control and mechanical draft control |
Standard Lift Capacity at lift pin, lb (kg) |
6600 (3000) |
Wheelbase, in (mm) |
92.5 (2340) |
Length, in (mm) |
151.6 (3850) |
Height, in (mm) |
101.2 (2570) |
Overall Width, in (mm) |
81.1 (2050) |
Ground Clearance, in (mm) |
13.4 (340) |
Turning Radius, in (mm) |
157 (4000) |
Weight (2WD), lb (kg) |
6940 (3150) |
Weight (4WD), lb (kg) |
7490 (3400) |
