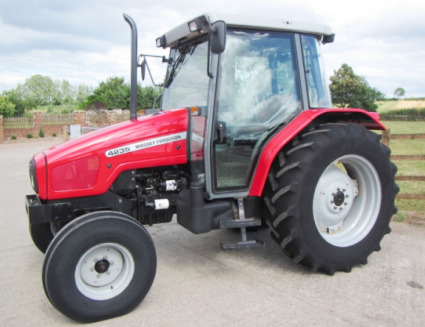

Massey Ferguson 4235 Tractor
The
Massey Ferguson 4235 is a utility tractor from 4200 series. This model was
manufactured between 1997 and 2001. The Massey Ferguson 4235 tractor is powered
by Perkins 4.41 4-cylinder direct injection liquid-cooled diesel engine.
A 248 cu.in (4.1L) engine has a cylinder bore of 3.98" (101 mm), piston
stroke of 5.00" (127 mm), rated power of 75.1 hp (56 kW), and max torque
of 281 Nm (208 lb-ft) at 1300 rpm. The MF 4235 is fitted with 4 types of
transmission. Type 1: 12x12 mechanical shuttle transmission. Type 2:
18x6 Speedshift transmission. Type 3: 12x12 power shuttle transmission.
Type 4: 24x24 power shuttle transmission. Max forward speed - 24.7 mph
(39.8 km/h), max reverse speed - 24.7 mph (39.8 km/h). The open center
hydraulic system includes a gear pump with fluid flow rate of 10 gpm
(37.8 lpm).
The hydraulic pressure is 210 bar (3050 psi). The 2WD models are
equipped with 10.00-16 front tires and 16.9R34 rear tires. The 380/70R24
front tires and 480/70R34 rear tires are used for 4WD tractors. The
wheel base is 92.5" (2340 mm).
| Engine Model |
Perkins 4.41 |
| Engine Type |
Four-cylinder, direct injection, liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
248 (4.07) |
| Engine Bore, in (mm) |
3.98 (101.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
75.1 (56.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
281 (208) |
| Torque Speed, rpm |
1300 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dry element |
| Fuel Tank Capacity, gal (L) |
26.0 (98.0) |
| Coolant Capacity, qts (L) |
18.5 (17.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
67.6 (50.4) |
| PTO Clutch |
Hydraulic |
| PTO Speeds, rpm |
540/540E, 540/1000 |
| PTO / Engine Speeds, rpm |
540/1979, 540E/1421, 1000/2000 |
| Transmission Type |
Mechanical shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
12 |
| Clutch Type |
Dry disc |
| Clutch Plate Diameter, in (mm) |
12.1 (305) |
| Maximum Forward Speed, mph (kph) |
22.7 (36.5) |
| Maximum Reverse Speed, mph (kph) |
22.7 (36.5) |
| Transmission Type |
Speedshift |
| Gearbox Type |
18F/6R |
| Number of Forward Speeds |
18 |
| Number of Reverse Speeds |
6 |
| Clutch Type |
Dry disc |
| Clutch Plate Diameter, in (mm) |
12.1 (305) |
| Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
| Maximum Reverse Speed, mph (kph) |
15.6 (25.1) |
| Transmission Type |
Powershuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
12 |
| Clutch Type |
Electro-hydraulic wet disc |
| Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
| Maximum Reverse Speed, mph (kph) |
24.7 (39.8) |
| Transmission Type |
Powershuttle |
| Gearbox Type |
24F/24R |
| Number of Forward Speeds |
24 |
| Number of Reverse Speeds |
24 |
| Clutch Type |
Electro-hydraulic wet disc |
| Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
| Maximum Reverse Speed, mph (kph) |
24.7 (39.8) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Hydraulic wet disc |
| Trailer Brakes |
Hydraulic |
| Front Tire Size (2WD) |
10.00-16 |
| Rear Tire Size (2WD) |
16.9R34 |
| Front Tire Size (4WD) |
380/70R24 |
| Rear Tire Size (4WD) |
480/70R34 |
| Front Tread (2WD), in (mm) |
52-71.7 (1320-1820) |
| Front Tread (4WD), in (mm) |
55.5-75.2 (1400-1910) |
| Rear Tread, in (mm) |
56.3-83.9 (1430-2130) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
10.0 (37.8) |
| Steering Pump Flow, gpm (Lpm) |
4.5 (17.1) |
| Total Flow (Std), gpm (Lpm) |
14.5 (54.9) |
| Total Flow (540E PTO), gpm (Lpm) |
15.9 (60.0) |
| Hydraulic Pressure, Bar (psi) |
210 (3050) |
| Hydraulic System Capacity, gal (L) |
13.2 (50.0) |
| Number of Standard Remote Valves |
1/4 |
| 3-Point Hitch Category (Std) |
1/2 |
| Draft Sensing or Lift Control |
Position control and mechanical draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
6600 (3000) |
| Wheelbase, in (mm) |
92.5 (2340) |
| Length, in (mm) |
157.9 (4010) |
| Height, in (mm) |
102.8 (2610) |
| Overall Width, in (mm) |
81.1 (2050) |
| Ground Clearance, in (mm) |
15.4 (390) |
| Turning Radius, in (mm) |
157 (4000) |
| Weight (2WD), lb (kg) |
7660 (3475) |
| Weight (4WD), lb (kg) |
7990 (3625) |
