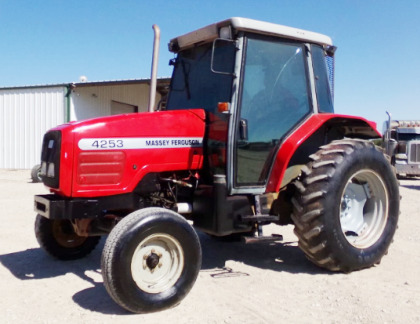

Massey Ferguson 4253 Tractor
The
Massey Ferguson 4253 is a 2WD or 4WD utility tractor. This model was
manufactured from 1997 to 1999. The Massey Ferguson 4253 tractor is powered by
Perkins 1004.4T 4-cylinder direct injection turbocharged water-cooled diesel
engine.
A 244 cubic inches (4 L) engine has a cylinder bore of 3.94" (100 mm),
piston stroke of 5.00" (127 mm), max power of 95 hp (70.8 kW), and 374
Nm (276 lb-ft) of peak torque at 1500 rpm. The Massey Ferguson 4253 is
fitted with three transmission options: 8x2 non-synchronized gear
transmission, 12x4 partially synchronized transmission, and 12x12
synchronized shuttle transmission. The maximum travel speed (forward and
reverse): 24.7 mph (39.7 kph) / 24.8 mph (39.8 kph).
The open center hydraulic system includes a gear pump with a flow of 10
gpm (37.8 lpm). The main relief pressure is 210 bar (3050 psi). The 2WD
models are equipped with 7.5Lx15 front tyres and 18.4x30 rear tyres. The
420/70R28 front tyres and 18.4R38 rear tyres fit 4WD tractors. The
wheelbase is 93" (2360 mm). The tractor is compatible with a Massey
Ferguson 1036 loader with lift capacity to full height of 3755 lbs (1703
kg) and breakout force of 6900 lbs (3130 kg).
| Engine Model |
Perkins 1004.4T |
| Engine Type |
Four stroke, turbocharged, direct injection diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
244 (4.0) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
95.0 (70.8) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
374 (276) |
| Torque Speed, rpm |
1500 |
| Compression |
17.3:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
33.6 (127.4) |
| Coolant Capacity, qts (L) |
18.4 (17.5) |
| Oil capacity, qts (L) |
6.8 (6.4) |
| Air cleaner |
Dry type |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
45/70 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
85.0 (63.4) |
| PTO Clutch |
Hydraulic wet disc |
| PTO Speeds, rpm |
540/1000 |
| PTO / Engine Speeds, rpm |
540/1979, 1000/2000 |
| Transmission Type |
Non-Synchronized gear |
| Gearbox Type |
8F/2R |
| Number of Forward Speeds |
8 |
| Number of Reverse Speeds |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
21.5 (34.4) |
| Maximum Reverse Speed, mph (kph) |
11.0 (17.6) |
| Transmission Type |
Partially synchronized |
| Gearbox Type |
12F/4R |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
| Maximum Reverse Speed, mph (kph) |
13.5 (21.6) |
| Transmission Type |
Synchronized shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
12 |
| Clutch Type |
Dry disc |
| Service Brake |
Hydraulic wet disc |
| Maximum Forward Speed, mph (kph) |
24.7 (39.7) |
| Maximum Reverse Speed, mph (kph) |
24.8 (39.8) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Independent hydraulic wet disc |
| Front Tire Size |
7.5L-15 |
| Rear Tire Size |
18.4-30 |
| Front Tread (2WD), in (mm) |
57-77 (1440-1950) |
| Front Tread (4WD), in (mm) |
55-75 (1390-1900) |
| Rear Tread, in (mm) |
60-84 (1520-2130) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
10.0 (37.8) |
| Steering Pump Flow, gpm (Lpm) |
7.5 (27.2) |
| Total Flow (Std), gpm (Lpm) |
17.4 (65.9) |
| Total Flow (Opt), gpm (Lpm) |
15.9 (60.0) |
| Hydraulic Pressure, Bar (psi) |
210 (3050) |
| Hydraulic System Capacity, gal (L) |
13.2 (50.0) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category (Std) |
2 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity 24-inch behind pin, lb (kg) |
4340 (1970) |
| Optional Lift Capacity 24-inch behind pin, lb (kg) |
4990 (2260) |
| Wheelbase, in (mm) |
93 (2360) |
| Length (2WD), in (mm) |
159 (4030) |
| Length (4WD), in (mm) |
160 (4060) |
| Height, in (mm) |
103 (2610) |
| Overall Width, in (mm) |
79 (2000) |
| Ground Clearance, in (mm) |
14 (350) |
| Maximum Turning Angle, deg |
55 |
| Turning Radius, in (mm) |
158.1 (4000) |
| Weight (2WD, ROPS), lb (kg) |
6930 (3145) |
| Weight (4WD, ROPS), lb (kg) |
7470 (3395) |
| Weight (2WD, Cab), lb (kg) |
7750 (3515) |
| Weight (4WD, Cab), lb (kg) |
7480 (3395) |
