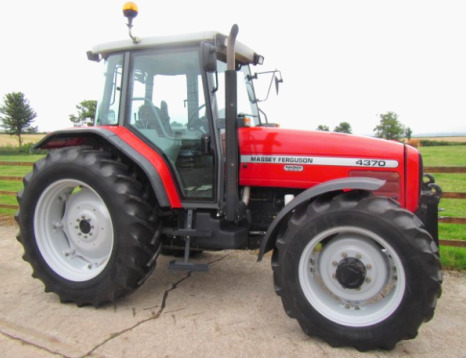

Massey Ferguson 4370 Tractor
The
Massey Ferguson 4370 is a 2WD or 4WD utility tractor from 4300 series. This
model was manufactured between 2001 and 2003. The Massey Ferguson 4370 tractor
is powered by 365 cu.in (6L) Perkins 1006.6T 4-cycle 6-cylinder direct injection
turbocharged diesel engine with a rated output power of 110 hp (81 kW) and 465
Nm (344 lb-ft) of max torque at 1200 rev/min.
The Massey Ferguson 4370 is fitted with 3 transmission options:
partially synchronized transmission with 12 forward and 4 reverse gears,
synchronized shuttle transmission with 12 forward and 12 reverse gears,
or synchronized shuttle transmission with 24 forward and 24 reverse
gears. The maximum travel speed (forward and reverse): 19.6 mph (31.5
km/h) / 19.9 mph (32.1 km/h). The open center hydraulic system includes
a gear pump with rated fluid flow of 10 gal/min (37.9 l/min) or 17.4
gal/min (65.9 l/min).
The main relief pressure is 210 bar (3045 psi). The 2-wheel drive models
are equipped with 10.00x16 front tyres and 16.9R38 rear tyres. The
13.6R28 front tyres and 16.9R38 rear tyres fit 4-wheel drive tractors.
The wheelbase is 103" (2610 mm). The Massey Ferguson 4370 is compatible
with a MF 1080 loader with 96" (2430 mm) bucket and lift capacity to
full height of 6400 lbs (2900 kg).
| Engine Model |
Perkins 1006.6T |
| Engine Type |
4 cycle, direct injection turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
365 (6.0) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
110.0 (81.0) |
| Maximum Engine Power, hp (kW) |
116.0 (86.5) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
465 (344) |
| Torque Speed, rpm |
1200 |
| Compression |
17.3:1 |
| Fuel Tank Capacity, gal (L) |
54.0 (207.0) |
| Coolant Capacity, qts (L) |
28.4 (26.5) |
| Air cleaner |
Dual paper elements |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
45/80 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
99.2 (72.9) |
| PTO Clutch |
Hydraulic wet disc |
| PTO Shaft Diameter, in (mm) |
1.38 (35) |
| PTO Speeds, rpm |
540/540E, 540/1000 |
| Engine Speeds, rpm |
1979/1421, 1902/2000 |
| Transmission Type |
Partially synchronized |
| Gearbox Type |
12F/4R |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
19.6 (31.5) |
| Maximum Reverse Speed, mph (kph) |
11.5 (18.4) |
| Transmission Type |
Synchronized shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
12 |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
19.6 (31.5) |
| Maximum Reverse Speed, mph (kph) |
19.9 (32.1) |
| Transmission Type |
Synchronized shuttle |
| Gearbox Type |
24F/24R |
| Number of Forward Speeds |
24 |
| Number of Reverse Speeds |
24 |
| Clutch Type |
Wet disc |
| Clutch Plate Diameter, in (mm) |
13 (330) |
| Maximum Forward Speed, mph (kph) |
19.6 (31.5) |
| Maximum Reverse Speed, mph (kph) |
19.9 (32.1) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Steering Column |
Telescopic |
| Service Brake |
Independent hydraulic wet disc |
| Parking Brake |
Hand lever operated |
| Front Tire Size (2WD) |
10.00-16 |
| Front Tire Size (4WD) |
13.6R28 |
| Rear Tire Size |
16.9R38 |
| Front Track (2WD), in (mm) |
57.3-85.8 (1450-2170) |
| Front Track (4WD), in (mm) |
62.1-81.1 (1570-2050) |
| Rear Track, in (mm) |
60.5-88.5 (1530-2240) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow (Std), gpm (Lpm) |
10.0 (37.9) |
| Implement Pump Flow (Opt), gpm (Lpm) |
17.4 (65.9) |
| Hydraulic Pressure, Bar (psi) |
210 (3045) |
| Hydraulic System Capacity, gal (L) |
13.2 (50.0) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position and draft control |
| Rear Arms |
Telescopic lower links |
| Standard Lift Capacity at lift pin, lb (kg) |
11000 (5000) |
| Standard Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
5710 (2590) |
| Optional Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
7240 (3290) |
| Wheelbase, in (mm) |
103 (2610) |
| Length, in (mm) |
175 (4440) |
| Height (ROPS), in (mm) |
103 (2610) |
| Height (Cab), in (mm) |
104 (2640) |
| Overall Width, in (mm) |
81 (2050) |
| Ground Clearance, in (mm) |
17.4 (440) |
| Maximum Turning Angle, deg |
55 |
| Turning Radius (2WD), in (mm) |
187.7 (4750) |
| Turning Radius (4WD), in (mm) |
181.8 (4600) |
| Weight (2WD, ROPS), lb (kg) |
6950 (3150) |
| Weight (4WD, ROPS), lb (kg) |
7970 (3620) |
| Weight (2WD, Cab), lb (kg) |
8540 (3880) |
| Weight (4WD, Cab), lb (kg) |
9080 (4130) |
