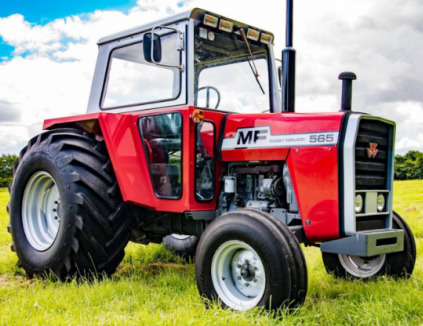

Massey Ferguson 565 Tractor
The
Massey Ferguson 565 is a row-crop tractor from 500 series. This model was
manufactured between 1977 and 1982. The Massey Ferguson 565 powerline
components: Perkins A4.236 4-stroke 4-cylinder direct injection naturally
aspirated diesel engine, and mechanical transmission with 8 forward and 2
reverse gears, or partial powershift transmission with 12 forward and 4 reverse
gears.
A 235.6 cubic inches (3.9L) engine has a cylinder bore of 3.97" (99 mm),
piston stroke of 5" (127 mm), rated power of 60 hp (44.7 kW), and max
torque of 230 Nm (170 lb-ft) at 1200 rpm. The maximum forward speed -
18.3 mph (29.4 km/h), max. reverse speed - 9.3 mph (15 km/h). The open
center hydraulic system used a gear pump with a rated capacity of 7.2
gal/min (27.3 l/min) or 16.5 gal/min (62.5 l/min).
The main relief pressure is 210 bar (3045 psi). The Massey Ferguson 565
was equipped with a hydrostatic power steering, wet disc brakes, 7.50x16
front tires, and 13.6x36 rear tires. The wheelbase is 88.6" (2250 mm).
| Engine Model |
Perkins A4.236 |
| Engine Type |
4-Stroke, 4-cylinder direct injection diesel |
| Bore, in (mm) |
3.97 (99.0) |
| Stroke, in (mm) |
5.00 (127.0) |
| No. of Cylinders |
4 |
| Cylinder Arrangement |
In-Line |
| Cubic Capacity, cu.in (L) |
235.6 (3.90) |
| Rated Power Rating, kW (Hp) |
60.0 (44.7) |
| Rated Engine Speed, rpm |
2000 |
| Maximum Torque, Nm (ft-lbs) |
230 (170) |
| Torque Speed, prm |
1200 |
| Compression Ratio |
16.0:1 |
| Induction System |
Naturally aspirated |
| Firing Order |
1-3-4-2 |
| Combustion System |
Direct Injection |
| Fuel Filter Element Type |
Paper |
| Oil Pump Type |
Rotor type |
| Fuel Tank Capacity, gal (L) |
21.0 (80.0) |
| Engine Oil Capacity, qts (L) |
7.5 (7.1) |
| Coolant Capacity, qts (L) |
15.0 (14.2) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type (Std) |
Live |
| PTO Operational Type (Opt) |
Independent |
| PTO Horsepower, hp (kW) |
60.0 (44.7) |
| PTO Clutch (Live) |
Dry disc |
| PTO Clutch (Independent) |
Hydraulic |
| PTO Speed, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/1684 |
| PTO / Engine Speed, rpm |
1000/1690 |
| Transmission Type |
Gear |
| Gearbox Type |
8F/2R |
| Number of Forward Speed |
8 |
| Number of Reverse Speed |
2 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
12 (305) |
| Maximum Forward Speed, mph (kph) |
14.7 (23.7) |
| Maximum Reverse Speed, mph (kph) |
7.4 (11.9) |
| Transmission Type |
Multi Power |
| Gearbox Type |
12F/4R, Partial powershift |
| Number of Forward Speed |
12 |
| Number of Reverse Speed |
4 |
| Maximum Forward Speed, mph (kph) |
18.3 (29.4) |
| Maximum Reverse Speed, mph (kph) |
9.3 (15.0) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet disc |
| Front Tire Size |
7.50x16 |
| Rear Tire Size |
13.6x36 |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow (Std), gpm (Lpm) |
7.2 (27.3) |
| Implement Pump Flow (Opt), gpm (Lpm) |
16.5 (62.5) |
| Hydraulic Pressure, Bar (psi) |
210 (3045) |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
3880 (1760) |
| Wheelbase, in (mm) |
88.6 (2250) |
| Length, in (mm) |
148.4 (3760) |
| Height, in (mm) |
96 (2430) |
| Overall Width, in (mm) |
81.5 (2070) |
| Ground Clearance, in (mm) |
18.5 (460) |
| Turning Radius, in (mm) |
142 (3600) |
| Weight, lb (kg) |
6220 (2820) |
