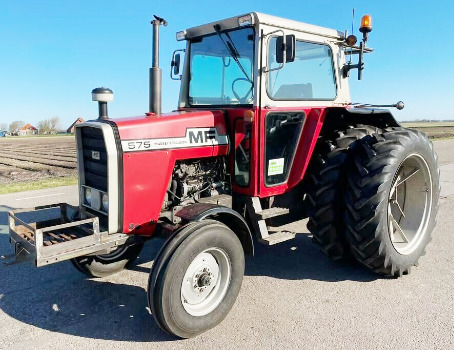

Massey Ferguson 575 Tractor
The
Massey Ferguson 575 is a two-wheel drive or four-wheel drive row-crop tractor
from 500 series. This model was manufactured between 1976 and 1982. The Massey
Ferguson 575 tractor is powered by Perkins A4.236 4-Stroke 4-cylinder direct
injection naturally aspirated diesel engine.
A 235.6 cubic inches (3.9L) engine has a cylinder bore of 3.97" (99 mm),
piston stroke of 5.0" (127 mm), max power of 66 hp (49.2 kW), and 255 Nm
(188 lb-ft) of peak torque at 1250 rpm. The Massey Ferguson 575 is
fitted with two transmission options: mechanical transmission with 8
forward and 2 reverse gears, and Multi Power partial powershift
transmission with 12 forward and 4 reverse gears. The maximum forward
speed - 18.3 mph (29.4 kph), max. reverse speed - 9.3 mph (15 kph).
The open center hydraulic system includes a gear pump with rated fluid
flow of 7.2 gpm (27.3 lpm) or 16.5 gpm (62.5 lpm). The hydraulic system
pressure is 210 bar (3045 psi). The 2WD models are equipped with 7.50x18
front tires and 13.6x38 rear tires. The 11.2x24 front tires and 16.9x34
rear tires are used for 4WD tractors. The wheelbase is 88.5" (2240 mm).
| Engine Model |
Perkins A4.236 |
| Engine Type |
4-Stroke 4-cylinder direct injection diesel |
| Bore, in (mm) |
3.97 (99.0) |
| Stroke, in (mm) |
5.00 (127.0) |
| No. of Cylinders |
4 |
| Cylinder Arrangement |
In-Line |
| Cubic Capacity, cu.in (L) |
235.6 (3.90) |
| Maximum Power Rating, kW (Hp) |
66.0 (49.2) |
| Rated Engine Speed, rpm |
2000 |
| Maximum Torque, Nm (ft-lbs) |
255 (188) |
| Torque Speed, prm |
1250 |
| Compression Ratio |
16.0:1 |
| Induction System |
Naturally aspirated |
| Firing Order |
1-3-4-2 |
| Combustion System |
Direct Injection |
| Fuel Filter Element Type |
Paper |
| Oil Pump Type |
Rotor type |
| Fuel Tank Capacity, gal (L) |
25.9 (98.0) |
| Engine Oil Capacity, qts (L) |
7.5 (7.1) |
| Coolant Capacity, qts (L) |
15.0 (14.2) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type (Std) |
Live |
| PTO Operational Type (Opt) |
Independent |
| PTO Horsepower, hp (kW) |
60.3 (45.0) |
| PTO Clutch (Live) |
Dry disc |
| PTO Clutch (Independent) |
Hydraulic |
| PTO Speed, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/1684 |
| PTO / Engine Speed, rpm |
1000/1690 |
| Transmission Type |
Gear |
| Gearbox Type |
8F/2R |
| Number of Forward Speed |
8 |
| Number of Reverse Speed |
2 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
12 (305) |
| Maximum Forward Speed, mph (kph) |
14.7 (23.7) |
| Maximum Reverse Speed, mph (kph) |
7.4 (11.9) |
| Transmission Type |
Multi Power |
| Gearbox Type |
12F/4R, Partial powershift |
| Number of Forward Speed |
12 |
| Number of Reverse Speed |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
18.3 (29.4) |
| Maximum Reverse Speed, mph (kph) |
9.3 (15.0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet disc |
| Front Tire Size (2WD) |
7.50x18 |
| Rear Tire Size (2WD) |
11.2x24 |
| Front Tire Size (4WD) |
13.6x38 |
| Rear Tire Size (4WD) |
16.9x34 |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow (Std), gpm (Lpm) |
7.2 (27.3) |
| Implement Pump Flow (Opt), gpm (Lpm) |
16.5 (62.5) |
| Hydraulic Pressure, Bar (psi) |
210 (3045) |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
3960 (1800) |
| Wheelbase, in (mm) |
88.5 (2240) |
| Length, in (mm) |
145 (3680) |
| Height, in (mm) |
101.5 (2570) |
| Overall Width, in (mm) |
81.5 (2070) |
| Ground Clearance, in (mm) |
18.5 (460) |
| Turning Radius, in (mm) |
201 (5100) |
| Weight (2WD), lb (kg) |
8035 (3645) |
| Weight (4WD), lb (kg) |
9020 (4100) |
