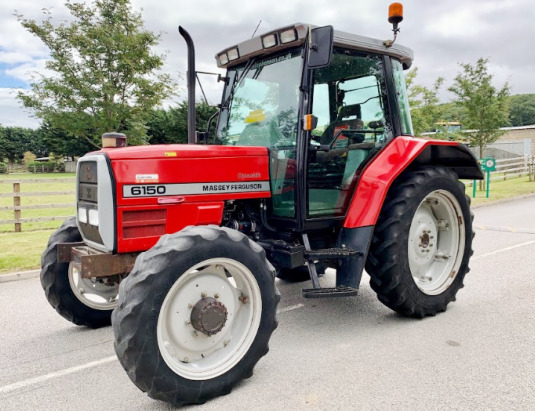

Massey Ferguson 6150 Tractor
The
Massey Ferguson 6150 is a 6100 series row-crop tractor. This model was
manufactured from 1995 to 1998. The Massey Ferguson 6150 tractor is powered by
244.1 cu.in (4 L) Perkins 1004.4 THR 4-cycle 4-cylinder vertical in-line direct
injection turbocharged diesel engine with a rated power of 94.4 hp (69.9 kW) and
386 Nm (286 lb-ft) of max torque at 1200 rev/min.
The Massey Ferguson 6150 is fitted with two transmission options:
Speedhift 2-speed powershift transmission with 16 forward and 16 reverse
gears, or Dynashift 4-speed powershift transmission with 32 forward and
32 reverse gears. The maximum forward speed - 23.3 mph (37.4 kph),
maximum reverse speed - 23.3 mph (37.4 kph). The open center hydraulic
system includes a two-stage gear pump with a flow of 15 gpm (57 lpm).
The main relief pressure is 185 bar (2680 psi). The Massey Ferguson 6150
was equipped with a hydrostatic steering system with telescopic steering
column, hydraulic front axle differential lock with electrical control,
hydraulic wet disc brakes, 10.0x16 (2WD) or 380/70R24 (4WD) front tires,
and 18.4R34 (2WD) or 480/70R34 (4WD) rear tires. The wheel base is
100.4" (2550 mm) for 2-wheel drive models and 100.5" (2555 mm) for
4-wheel drive models.
| Engine Model |
Perkins 1004.4 THR |
| Engine Type |
4 Cycle, 4-cylinder turbocharged diesel |
| Number of Cylinders |
4, Vertical in-line |
| Displacement, cu in (L) |
244.1 (4.00) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
94.4 (69.9) |
| Rated Engine Speed, rpm |
2200-2310 |
| Idling Speed, rpm |
850 |
| Maximum Torque, Nm (ft-lbs) |
386 (286) |
| Torque Speed, rpm |
1200 |
| Compression |
16:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Direct injection |
| Lubrication System |
Gear type pump |
| Oil Filter |
External canister type |
| Cooling System |
Centrifugal pump pressurised radiator |
| Air Cleaner |
2-Stage, dry element |
| Valves |
Overhead, push-rod operated |
| Valve Clearance (Inlet), in (mm) |
0.008 (0.20) |
| Valve Clearance (Exhaust), in (mm) |
0.018 (0.45) |
| Fuel Tank Capacity, gal (L) |
42.3 (160.0) |
| Oil Capacity, qts (L) |
7.9 (7.4) |
| Coolant Capacity, qts (L) |
17.5 (16.6) |
| Electrical System Rating, Volts |
12 |
| PTO Horsepower, hp (kW) |
85.3 (63.2) |
| PTO Clutch Type |
Hydraulic |
| Rear PTO Operational Type |
Independent |
| Rear PTO Speed, rpm |
540/1000 |
| Rear PTO / Engine Speed, rpm |
540/1980, 1000/2000 |
| Rear PTO Control |
Lever in the Cabine |
| Front PTO Operational Type |
Independent |
| Front PTO Speed, rpm |
1000 |
| Front PTO / Engine Speed, rpm |
1000/2040 |
| Front PTO Control |
Knob in the Cabine |
| Transmission Type |
Speedhift |
| Gearbox Type |
16F/16R, 2-speed powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
16 |
| Clutch Type |
Wet type with spring loaded 4 disc |
| Creeper |
Optional |
| Oil Capacity, qts (L) |
72.6 (68.5) |
| Maximum Forward Speed, mph (kph) |
18.3 (29.5) |
| Maximum Reverse Speed, mph (kph) |
18.3 (29.5) |
| Transmission Type |
Dynashift |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Clutch Type |
Wet type |
| Reverse Shuttle |
Sinchronized |
| Oil Capacity, qts (L) |
72.6 (68.5) |
| Maximum Forward Speed, mph (kph) |
23.3 (37.4) |
| Maximum Reverse Speed, mph (kph) |
23.3 (37.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Column |
Telescopic |
| Steering Cylinder |
One, double action |
| Front Tire Size (2WD) |
10.0x16 |
| Rear Tire Size (2WD) |
18.4R34 |
| Front Tire Size (4WD) |
380/70R24 |
| Rear Tire Size (4WD) |
480/70R34 |
| Rear Axle Reduction Unit |
Epicyclic, in rear axle housing |
| Rear Axle Reduction Unit Ratio |
5.077:1 |
| Front Axle Clutch Mechanism (4WD) |
Hydraulic, electrically actuated |
| Front Axle Differential Lock |
Hydraulic with electrical control |
| Front Axle Capacity, qts (L) |
7.2 (6.8) |
| Service Brake |
Oil immersed single disc |
| Service Brake Disc Diameter, in (mm) |
13.5 (343) |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Two-stage gear pump |
| Implement Pump Flow, gpm (Lpm) |
15.0 (57.0) |
| Hydraulic Pressure, Bar (psi) |
185 (2680) |
| Steering Pump Flow, gpm (Lpm) |
8.6 (32.7) |
| Steering Pressure, Bar (psi) |
17 (246.5) |
| 3-Point Hitch Category |
2/3 |
| Standard Lift Capacity 24 (610 mm) behind pin, lb (kg) |
10370 (4703) |
| Standard Lift Capacity at lift pin, lb (kg) |
12540 (5690) |
| Wheelbase (2WD), in (mm) |
100.4 (2550) |
| Wheelbase (4WD), in (mm) |
100.5 (2555) |
| Overall Length, in (mm) |
1629 (4137) |
| Height (Cab), in (mm) |
107.2 (2724) |
| Height (Steering Wheel), in (mm) |
79.6 (2023) |
| Width, in (mm) |
101.2 (2570) |
| Ground Clearance, in (mm) |
15.2 (385) |
| Turning Radius, in (mm) |
181.8 (4600) |
| Weight (2WD), lb (kg) |
9080 (4400) |
| Weight (4WD), lb (kg) |
9700 (3840) |
