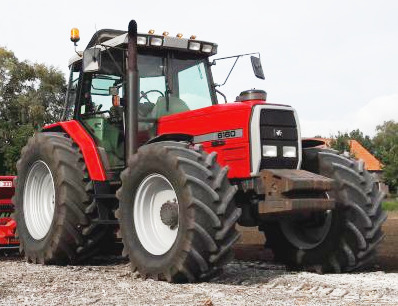

Massey Ferguson 6160 Tractor
The
Massey Ferguson 6160 farm tractor was manufactured from 1996 to 1999. The
components of Massey Ferguson 6160 powerline system: Perkins 1006.6 six-cylinder
direct injection naturally aspirated diesel engine and speedshift transmission
with 16 forward and 16 reverse gears, or dynashift transmission with 32 forward
and 32 reverse gears.
A 365 cubic inches (6 L) engine has a cylinder bore of 3.94" (100 mm),
piston stroke of 5.00" (127 mm), rated power of 99.2 hp (73.5 kW), and
403 Nm (299 lb-ft) of peak torque at 1200 rpm. The maximum travel speed
(forward and reverse): 23.3 mph (37.4 km/h). The MF 6160 tractor has two
types of hydraulic systems: open center with pump capacity of 15 gpm (57
lpm), or closed center with pump capacity of 27.7 gpm (105 lpm).
The hydraulic pressure is 185 bar (2680 psi) using open center, or 200
bar (2900 psi) using closed center. The 2WD models are equipped with
10.0x16 front tires and 18.4R34 rear tires. The 380/70R24 front tires
and 480/70R34 rear tires are used for 4WD tractors. The wheelbase is
106.1" (2694 mm) for models with 2-wheel drive and 106.3" (2700 mm) for
models with 4-wheel drive.
| Engine Model |
Perkins 1006.6 |
| Engine Type |
4 Cycle, six-cylinder direct injection diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
365 (6.00) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
99.2 (73.5) |
| Rated Engine Speed, rpm |
2200-2310 |
| Idling Speed, rpm |
850 |
| Maximum Torque, Nm (ft-lbs) |
403 (299) |
| Torque Speed, rpm |
1200 |
| Compression |
16.0:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Lubrication System |
Gear type pump |
| Oil Filter |
External canister type |
| Cooling System |
Centrifugal pump pressurised radiator |
| Air Cleaner |
2-Stage, dry element |
| Valves |
Overhead, push-rod operated |
| Valve Clearance (Inlet), in (mm) |
0.008 (0.20) |
| Valve Clearance (Exhaust), in (mm) |
0.018 (0.45) |
| Fuel Tank Capacity, gal (L) |
42.3 (160.0) |
| Oil Capacity, qts (L) |
15.7 (14.8) |
| Coolant Capacity, qts (L) |
26.5 (25.0) |
| Electrical System Rating, Volts |
12 |
| PTO Horsepower, hp (kW) |
90.5 (67.0) |
| PTO Clutch |
Hydraulic |
| Rear PTO Operational Type |
Independent |
| Rear PTO Speed, rpm |
540/1000 |
| Rear PTO / Engine Speed, rpm |
540/1980, 1000/2000 |
| Rear PTO Control |
Lever in the Cabine |
| Front PTO Operational Type |
Independent |
| Front PTO Speed, rpm |
1000 |
| Front PTO / Engine Speed, rpm |
1000/2040 |
| Front PTO Control |
Knob in the Cabine |
| Transmission Type |
Speedshift |
| Gearbox Type |
16F/16R, 2-speed powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
16 |
| Clutch Type |
Wet disc |
| Oil Capacity, qts (L) |
72.6 (68.5) |
| Maximum Forward Speed, mph (kph) |
18.3 (29.5) |
| Maximum Reverse Speed, mph (kph) |
18.3 (29.5) |
| Transmission Type |
Dynashift |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Clutch Type |
Wet disc |
| Reverse Shuttle |
Sinchronized |
| Oil Capacity, qts (L) |
72.6 (68.5) |
| Maximum Forward Speed, mph (kph) |
23.3 (37.4) |
| Maximum Reverse Speed, mph (kph) |
23.3 (37.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Column |
Telescopic |
| Steering Cylinder |
One, double action |
| Service Brake |
Oil immersed single disc |
| Front Tire Size (2WD) |
10.0x16 |
| Rear Tire Size (2WD) |
18.4R34 |
| Front Tire Size (4WD) |
380/70R24 |
| Rear Tire Size (4WD) |
480/70R34 |
| Hydraulic System Type (Std) |
Open center |
| Implement Pump Type |
Two-stage gear pump |
| Implement Pump Flow, gpm (Lpm) |
15.0 (57.0) |
| Hydraulic Pressure, Bar (psi) |
185 (2680) |
| Steering Pump Flow, gpm (Lpm) |
8.6 (32.7) |
| Steering Pressure, Bar (psi) |
17 (246.5) |
| Hydraulic System Type (Opt) |
Closed center |
| Implement Pump Type |
Variable displacement pump |
| Implement Pump Flow, gpm (Lpm) |
27.7 (105.0) |
| Hydraulic Pressure, Bar (psi) |
200 (2900) |
| 3-Point Hitch Category |
2/3 |
| Standard Lift Capacity 24" (610 mm) behind pin, lb (kg) |
10556 (4788) |
| Standard Lift Capacity at lift pin, lb (kg) |
12654 (5740) |
| Wheelbase (2WD), in (mm) |
106.1 (2694) |
| Wheelbase (4WD), in (mm) |
106.3 (2700) |
| Overall Length (2WD), in (mm) |
170 (4320) |
| Overall Length (4WD), in (mm) |
176 (4470) |
| Height (Cab), in (mm) |
108.5 (2755) |
| Height (Steering Wheel), in (mm) |
81.4 (2070) |
| Width, in (mm) |
101.2 (2570) |
| Ground Clearance, in (mm) |
17.5 (445) |
| Turning Radius, in (mm) |
195.3 (4940) |
| Weight (2WD), lb (kg) |
9800 (4440) |
| Weight (4WD), lb (kg) |
10435 (4730) |
