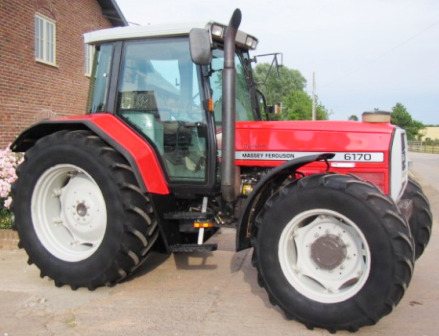

Massey Ferguson 6170 Tractor
The
Massey Ferguson 6170 row crop tractor was manufactured between 1995 and 1998.
The Massey Ferguson 6170 tractor is powered by 365 cu.in (6L) Perkins 1006.6
six-cylinder direct injection liquid-cooled diesel engine with a rated power of
109.4 hp (81 kW) and 440 Nm (326 lb-ft) of max torque at 1200 rpm.
The Massey Ferguson 6170 is fitted with a two transmission options:
16x16 speedshift two-speed powershift transmission and 32x32 dynashift
four-speed powershift transmission. Max forward speed - 23.3 mph (37.4
km/h), maximum reverse speed - 23.3 mph (37.4 km/h).
The open center hydraulic system used a two-stage gear pump with rated
fluid flow of 15 gal/min (57 l/min). The closed center hydraulic system
used a variable displacement pump with rated fluid flow of 27.7 gal/min
(105 l/min). The main relief pressure is 185 bar (2680 psi) using open
center, or 200 bar (2900 psi) using closed center. The Massey Ferguson
6170 was equipped with a hydrostatic steering system, hydraulic disc
brakes, 10.0x16 (2WD) or 380/70R24 (4WD) front tires, and 18.4R34 (2WD)
or 480/70R34 (4WD) rear tires. The wheelbase is 106.1" (2695 mm) for 2WD
models and 106.3" (2700 mm) for 4WD models.
| Engine Model |
Perkins 1006.6 |
| Engine Type |
4 Cycle, six-cylinder direct injection diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
365 (6.00) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
109.4 (81.0) |
| Rated Engine Speed, rpm |
2200-2310 |
| Idling Speed, rpm |
850 |
| Maximum Torque, Nm (ft-lbs) |
440 (326) |
| Torque Speed, rpm |
1200 |
| Compression |
16.0:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Lubrication System |
Gear type pump |
| Oil Filter |
External canister type |
| Cooling System |
Centrifugal pump pressurised radiator |
| Air Cleaner |
2-Stage, dry element |
| Valves |
Overhead, push-rod operated |
| Valve Clearance (Inlet), in (mm) |
0.008 (0.20) |
| Valve Clearance (Exhaust), in (mm) |
0.018 (0.45) |
| Fuel Tank Capacity, gal (L) |
42.3 (160.0) |
| Oil Capacity, qts (L) |
15.7 (14.8) |
| Coolant Capacity, qts (L) |
26.5 (25.0) |
| Electrical System Rating, Volts |
12 |
| PTO Horsepower, hp (kW) |
98.3 (72.8) |
| PTO Clutch |
Hydraulic |
| Rear PTO Operational Type |
Independent |
| Rear PTO Speed, rpm |
540/1000 |
| Rear PTO / Engine Speed, rpm |
540/1980, 1000/2000 |
| Rear PTO Control |
Lever in the Cabine |
| Front PTO Operational Type |
Independent |
| Front PTO Speed, rpm |
1000 |
| Front PTO / Engine Speed, rpm |
1000/2040 |
| Front PTO Control |
Knob in the Cabine |
| Transmission Type |
Speedhift |
| Gearbox Type |
16F/16R, 2-speed powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
16 |
| Clutch Type |
Wet disc |
| Creeper |
Optional |
| Oil Capacity, qts (L) |
75.3 (71.0) |
| Maximum Forward Speed, mph (kph) |
18.3 (29.5) |
| Maximum Reverse Speed, mph (kph) |
18.3 (29.5) |
| Transmission Type |
Dynashift |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Clutch Type |
Wet disc |
| Reverse Shuttle |
Sinchronized |
| Oil Capacity, qts (L) |
75.3 (71.0) |
| Maximum Forward Speed, mph (kph) |
23.3 (37.4) |
| Maximum Reverse Speed, mph (kph) |
23.3 (37.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Column |
Telescopic |
| Steering Cylinder |
One, double action |
| Service Brake |
Oil immersed single disc |
| Front Tire Size (2WD) |
10.0x16 |
| Rear Tire Size (2WD) |
18.4R34 |
| Front Tire Size (4WD) |
380/70R24 |
| Rear Tire Size (4WD) |
480/70R34 |
| Hydraulic System Type (Std) |
Open center |
| Implement Pump Type |
Two-stage gear pump |
| Implement Pump Flow, gpm (Lpm) |
15.0 (57.0) |
| Hydraulic Pressure, Bar (psi) |
185 (2680) |
| Steering Pump Flow, gpm (Lpm) |
8.6 (32.7) |
| Steering Pressure, Bar (psi) |
17 (246.5) |
| Hydraulic System Type (Opt) |
Closed center |
| Implement Pump Type |
Variable displacement pump |
| Implement Pump Flow, gpm (Lpm) |
27.7 (105.0) |
| Hydraulic Pressure, Bar (psi) |
200 (2900) |
| 3-Point Hitch Category |
2/3 |
| Standard Lift Capacity 24" (610 mm) behind pin, lb (kg) |
10556 (4788) |
| Standard Lift Capacity at lift pin, lb (kg) |
12654 (5740) |
| Wheelbase (2WD), in (mm) |
106.1 (2695) |
| Wheelbase (4WD), in (mm) |
106.3 (2700) |
| Overall Length (2WD), in (mm) |
170 (4320) |
| Overall Length (4WD), in (mm) |
176 (4472) |
| Height (Cab), in (mm) |
108.5 (2755) |
| Height (Steering Wheel), in (mm) |
81.4 (2068) |
| Width, in (mm) |
101.2 (2570) |
| Ground Clearance, in (mm) |
17.5 (445) |
| Turning Radius, in (mm) |
195.3 (4940) |
| Weight (2WD), lb (kg) |
9800 (4440) |
| Weight (4WD), lb (kg) |
10435 (4730) |
